Home >> Lexus >> 2002 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case System >> Motor Shift Control System >> Location

Motor Shift Control System: Location

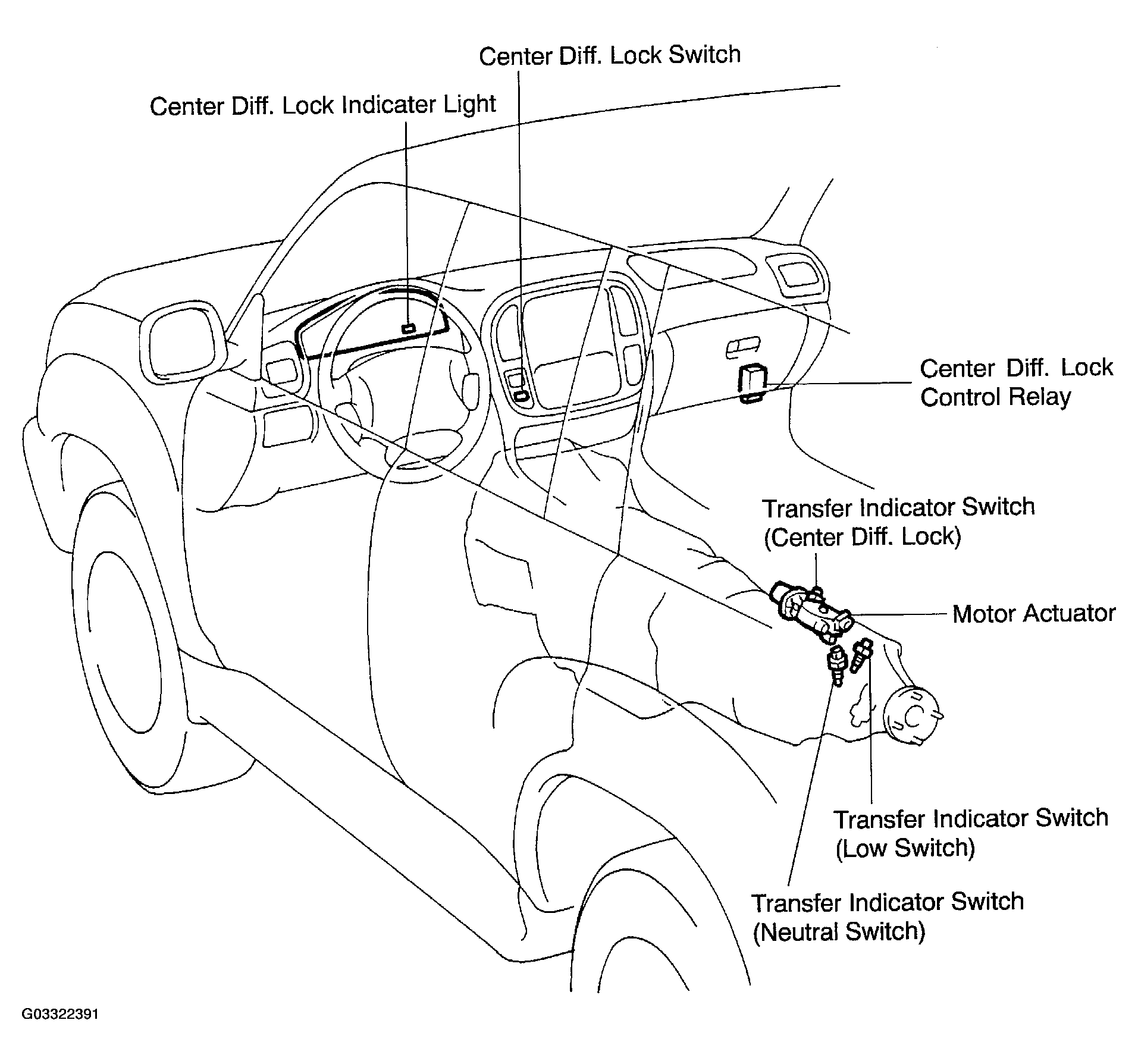

Fig 1: Locating Motor Shift Control System Components
G03322391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
