Home >> Lexus >> 2002 >> LX 470 >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Case System >> Transfer Shift Lever Assembly >> Components

Transfer Shift Lever Assembly: Components

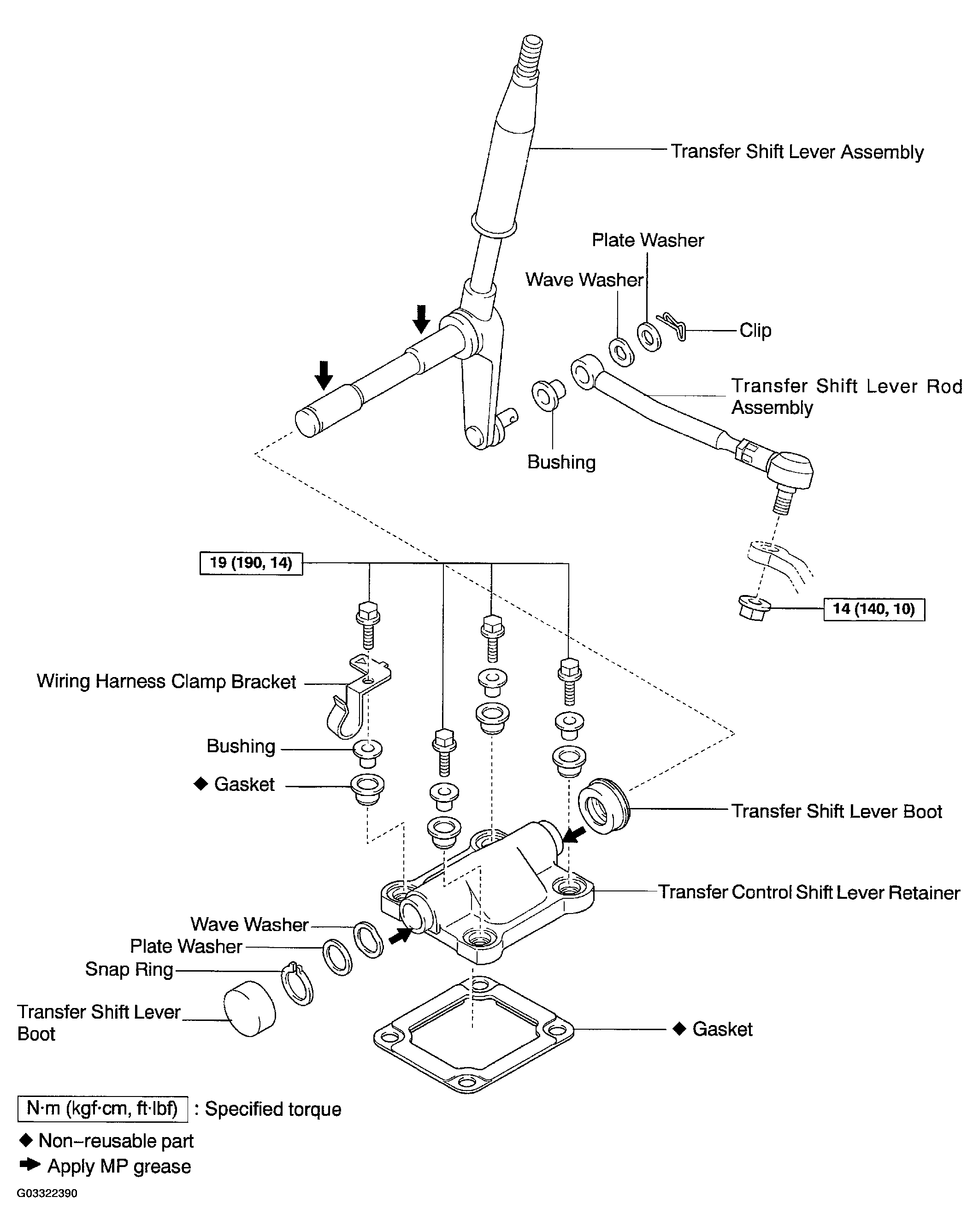

Fig 1: Identifying Transfer Shift Lever Assembly Components

G03322390

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
