Partial Engine: Components

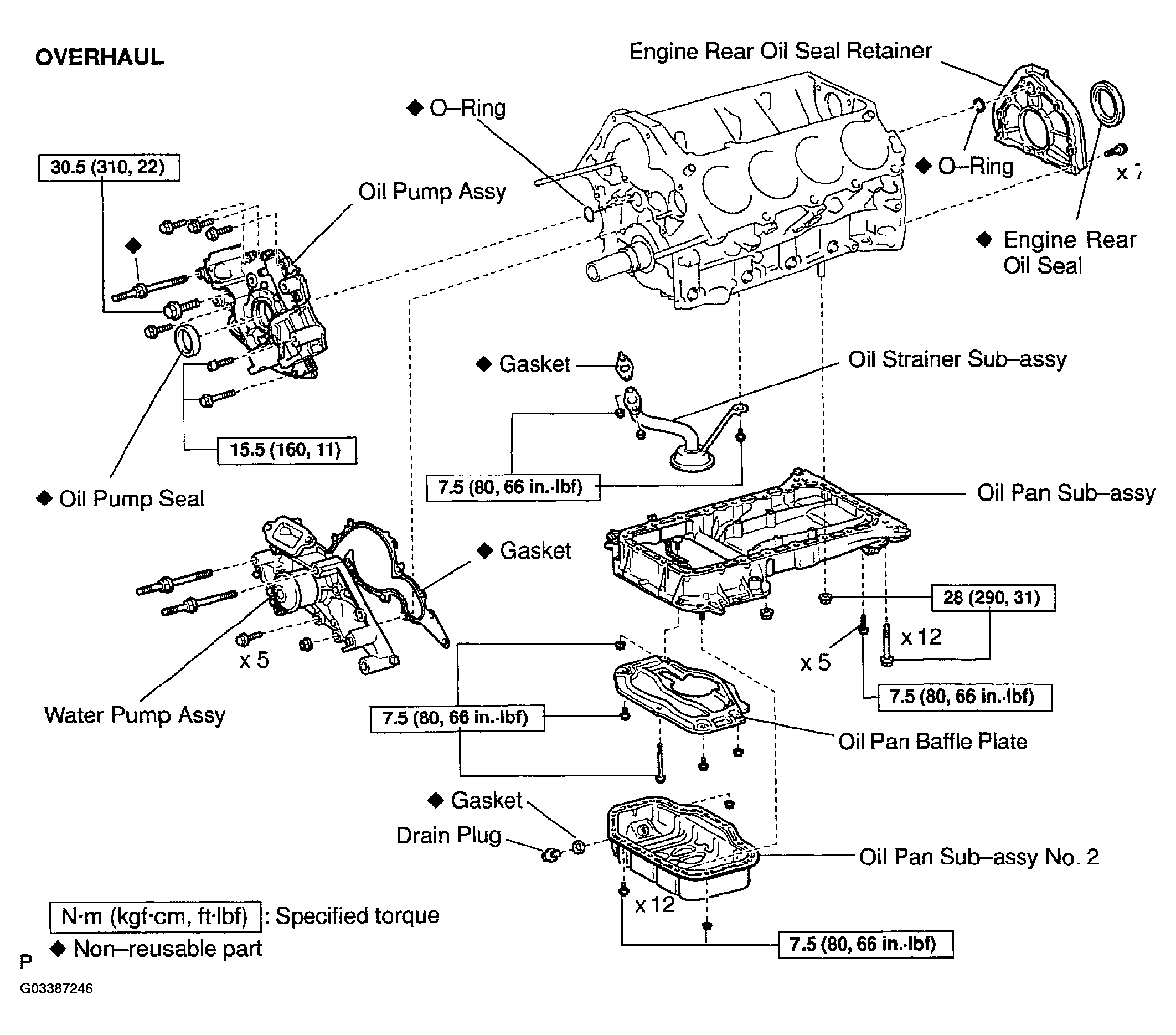

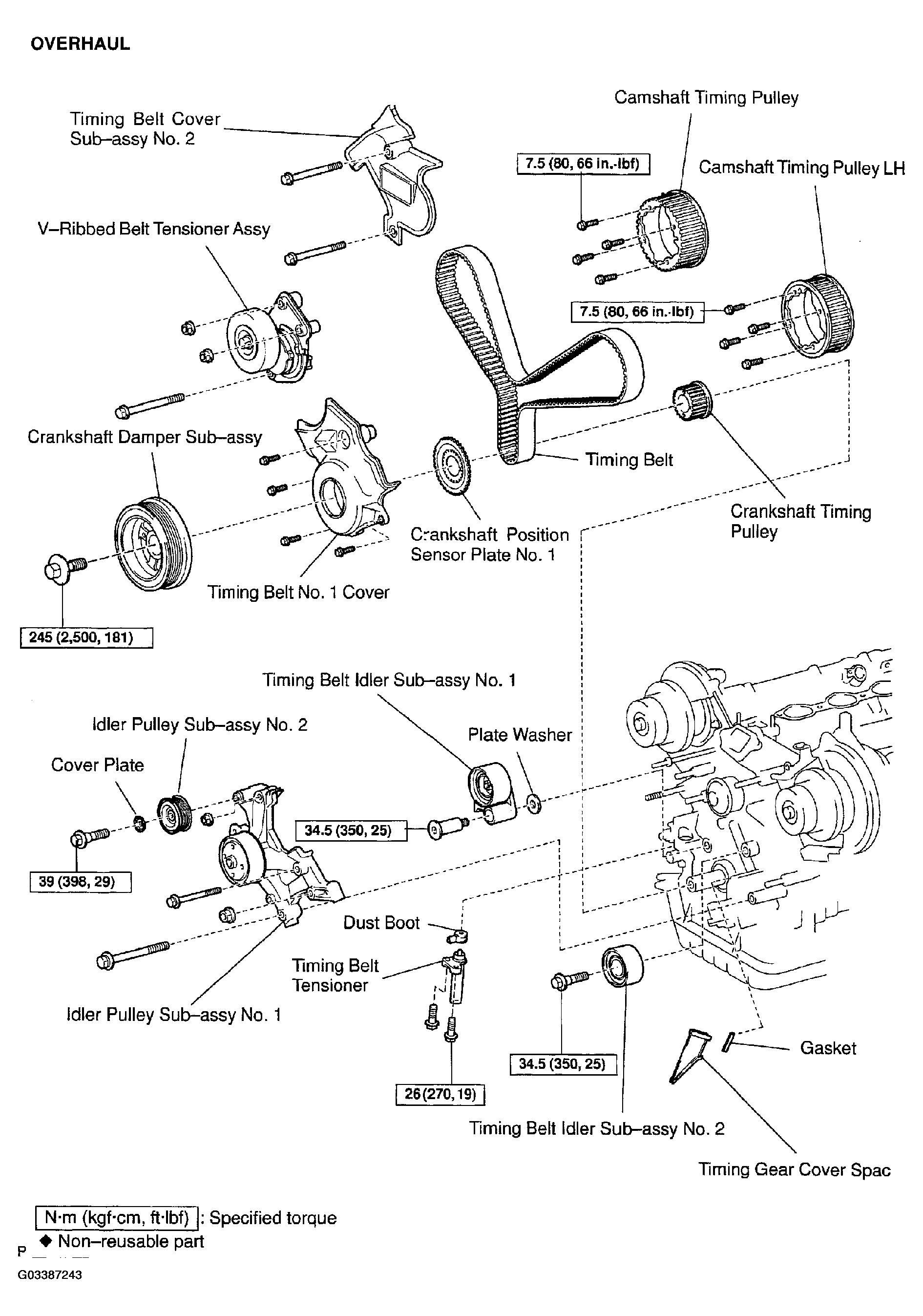

Fig 1: Exploded View Of Partial Engine Assembly Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

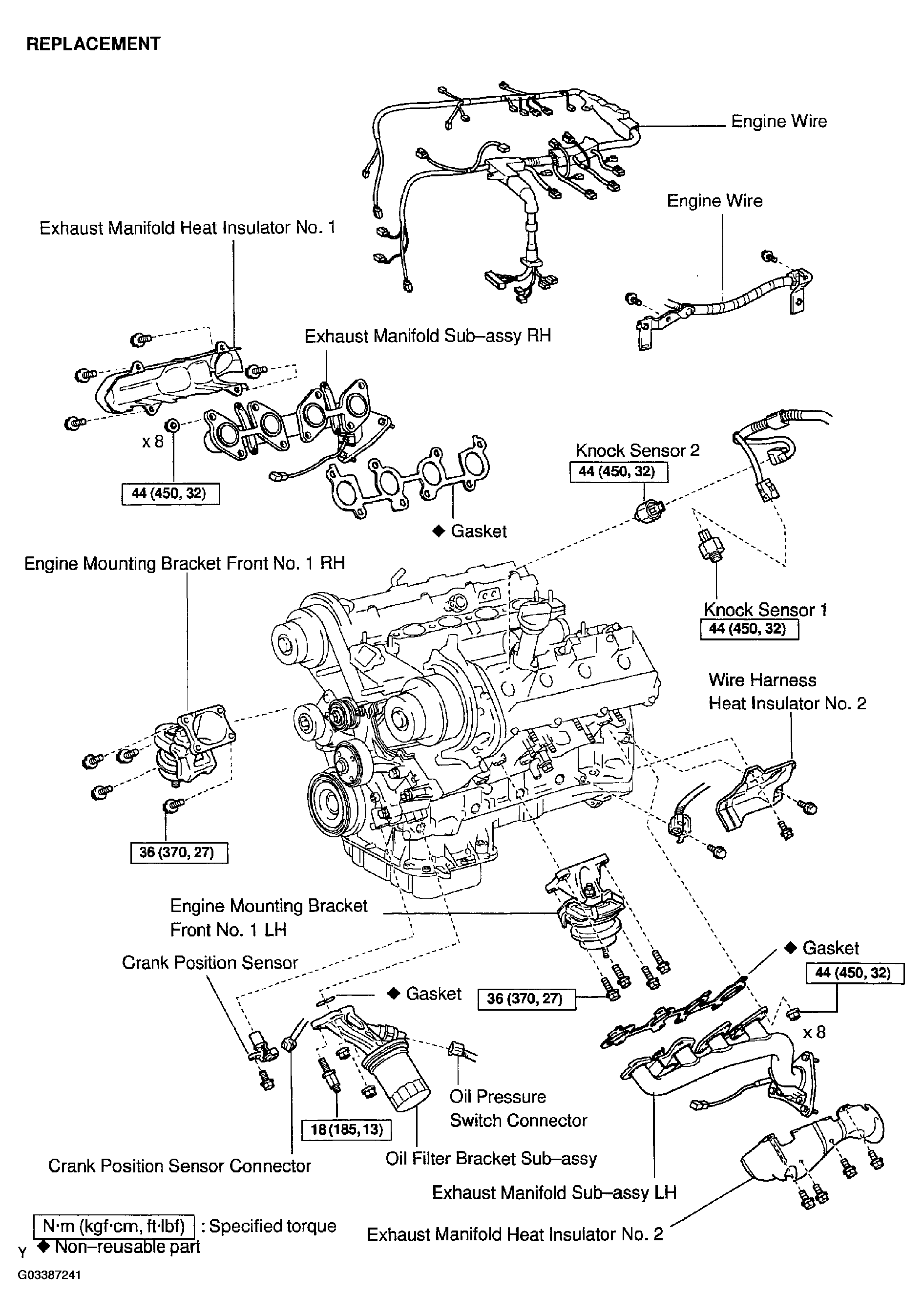

Fig 2: Exploded View Of Partial Engine Assembly Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

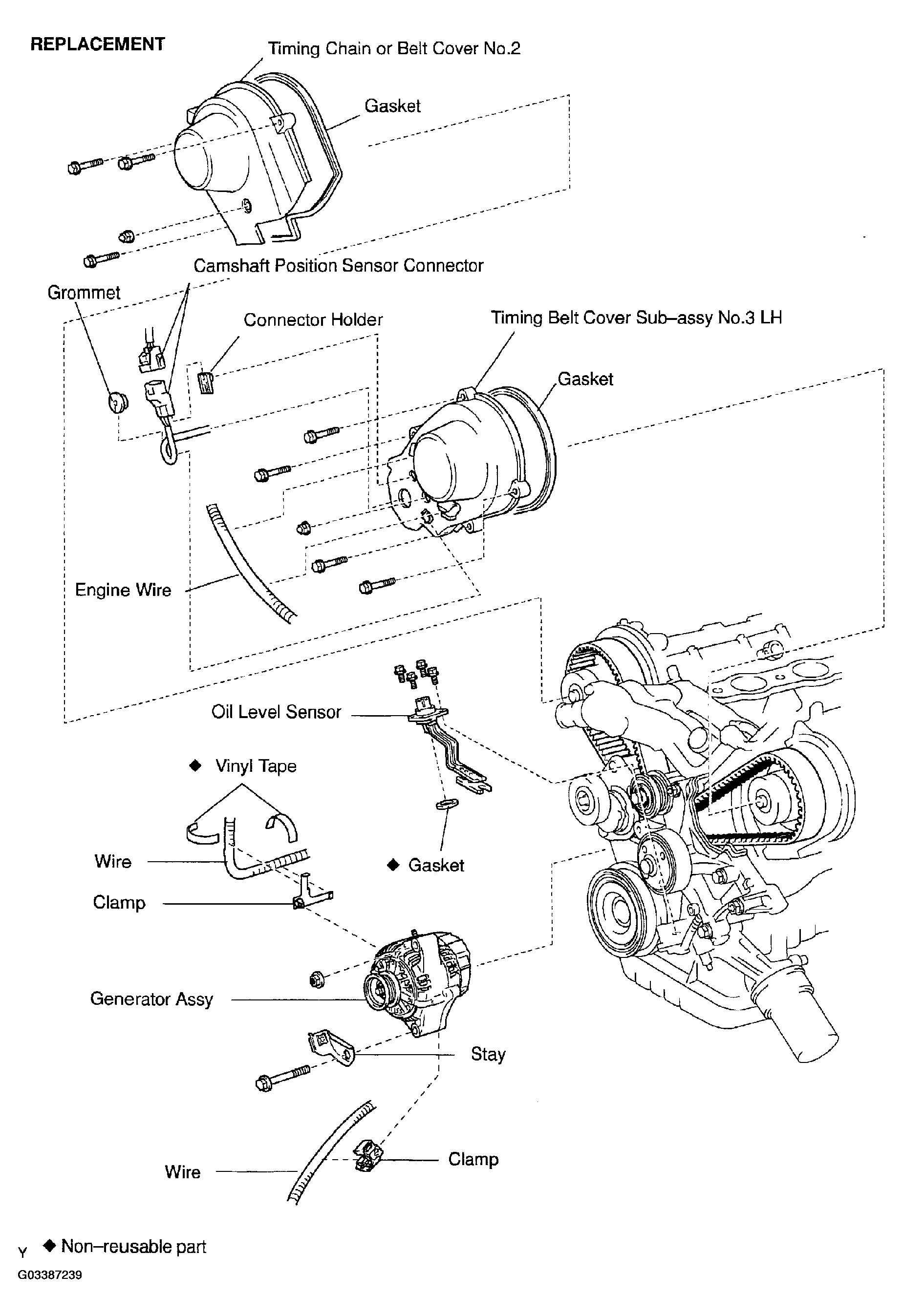

Fig 3: Exploded View Of Partial Engine Assembly Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

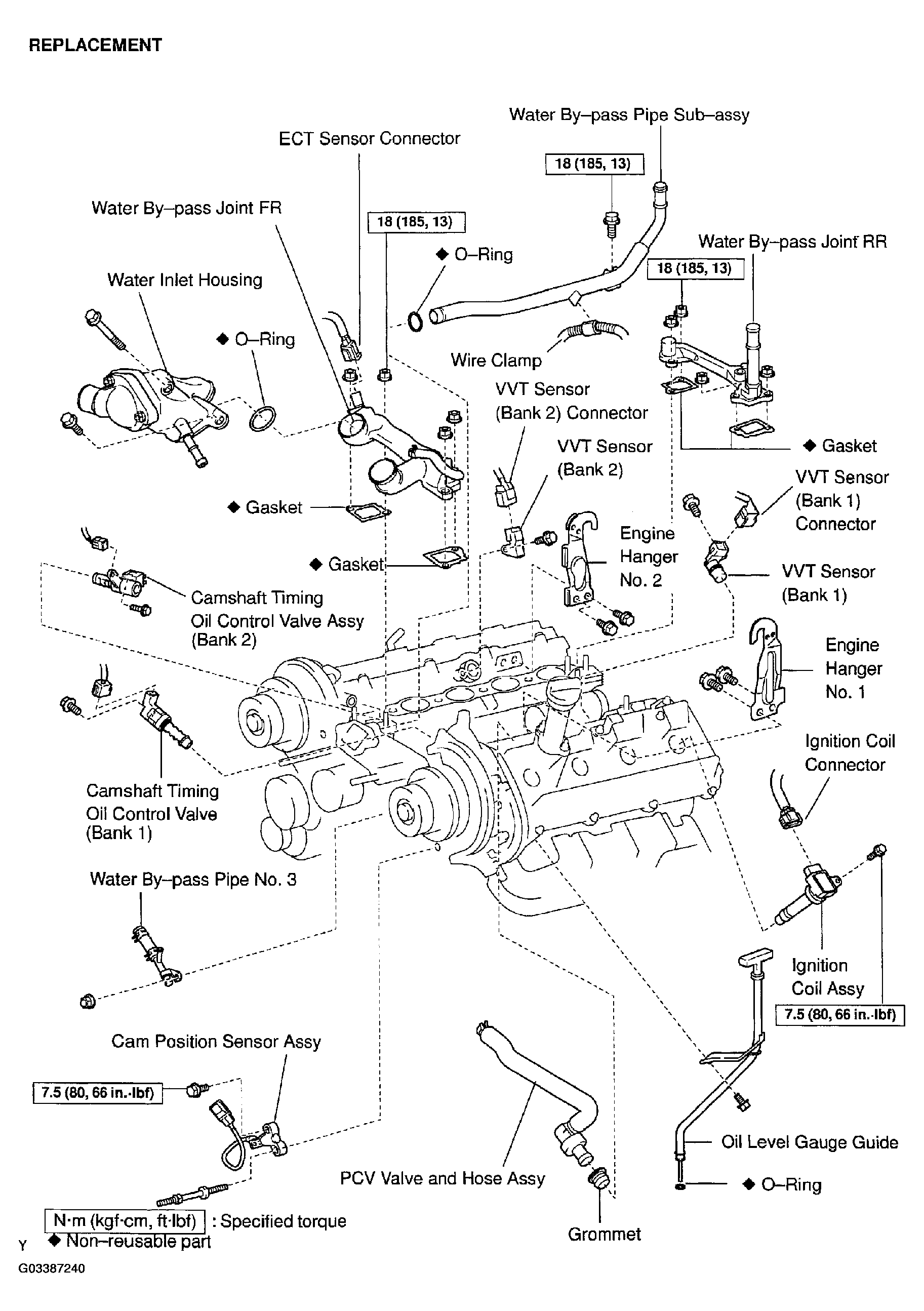

Fig 4: Exploded View Of Partial Engine Assembly Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

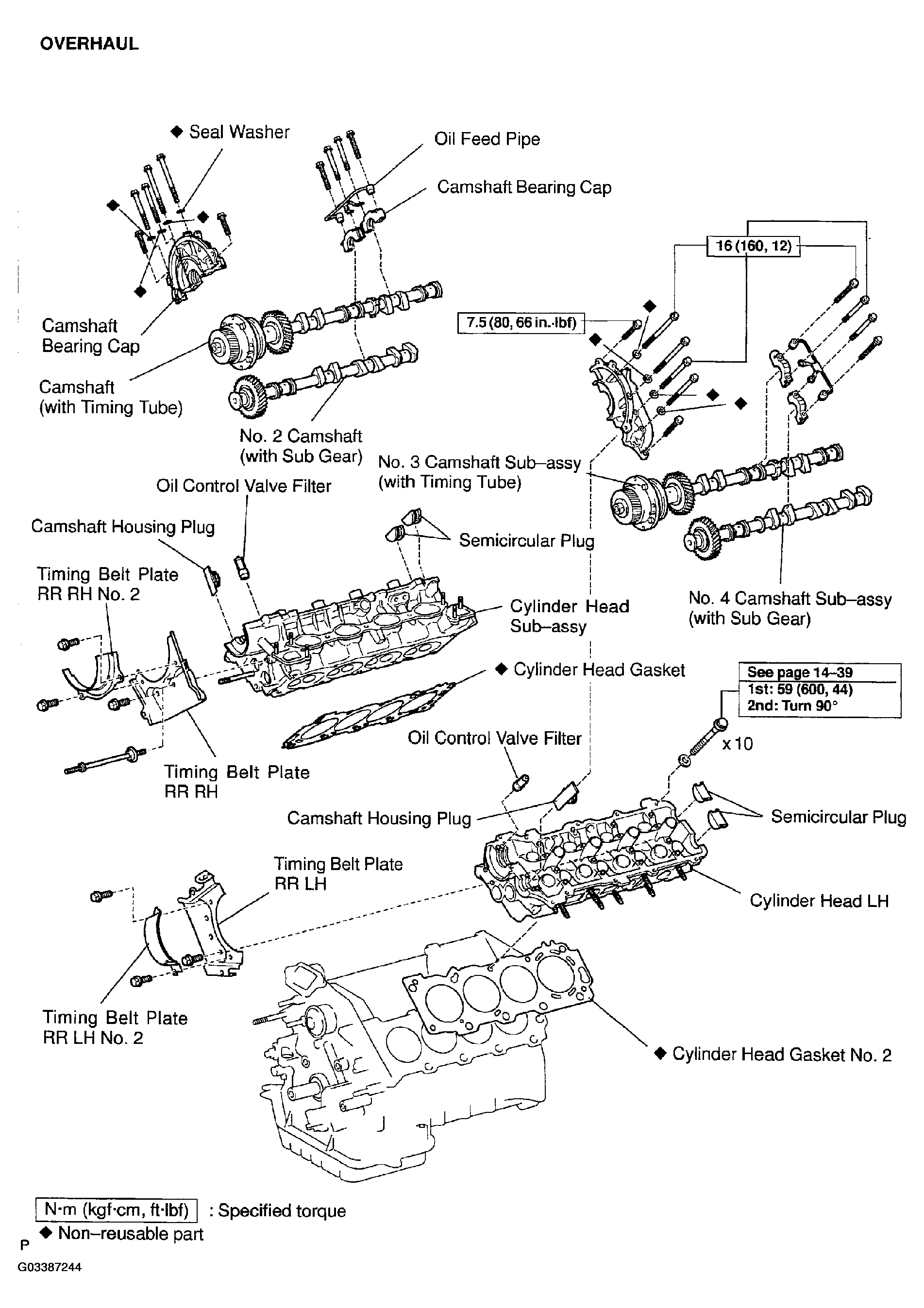

Fig 5: Exploded View Of Partial Engine Assembly Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

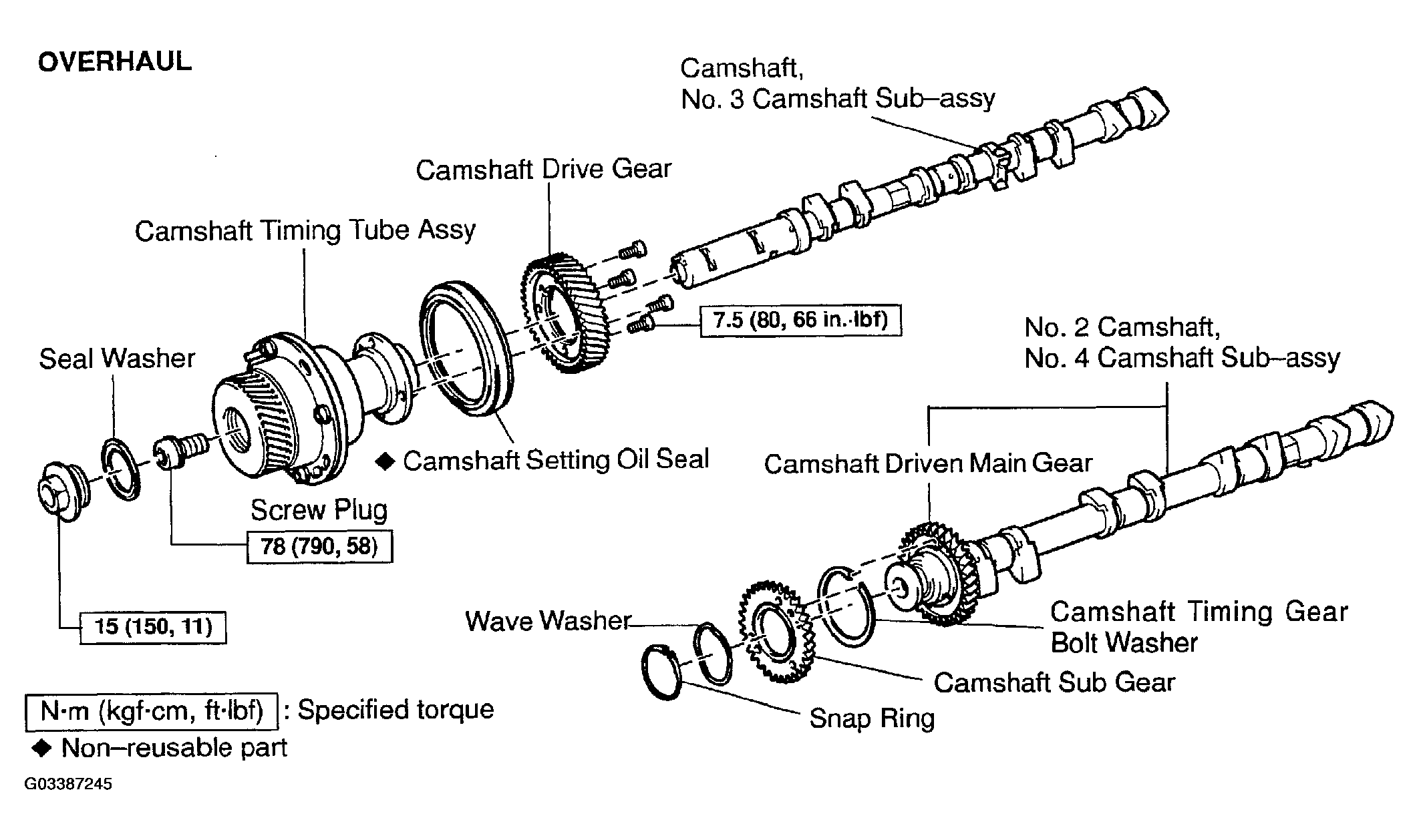

Fig 6: Exploded View Of Partial Engine Assembly Components (6 Of 9)

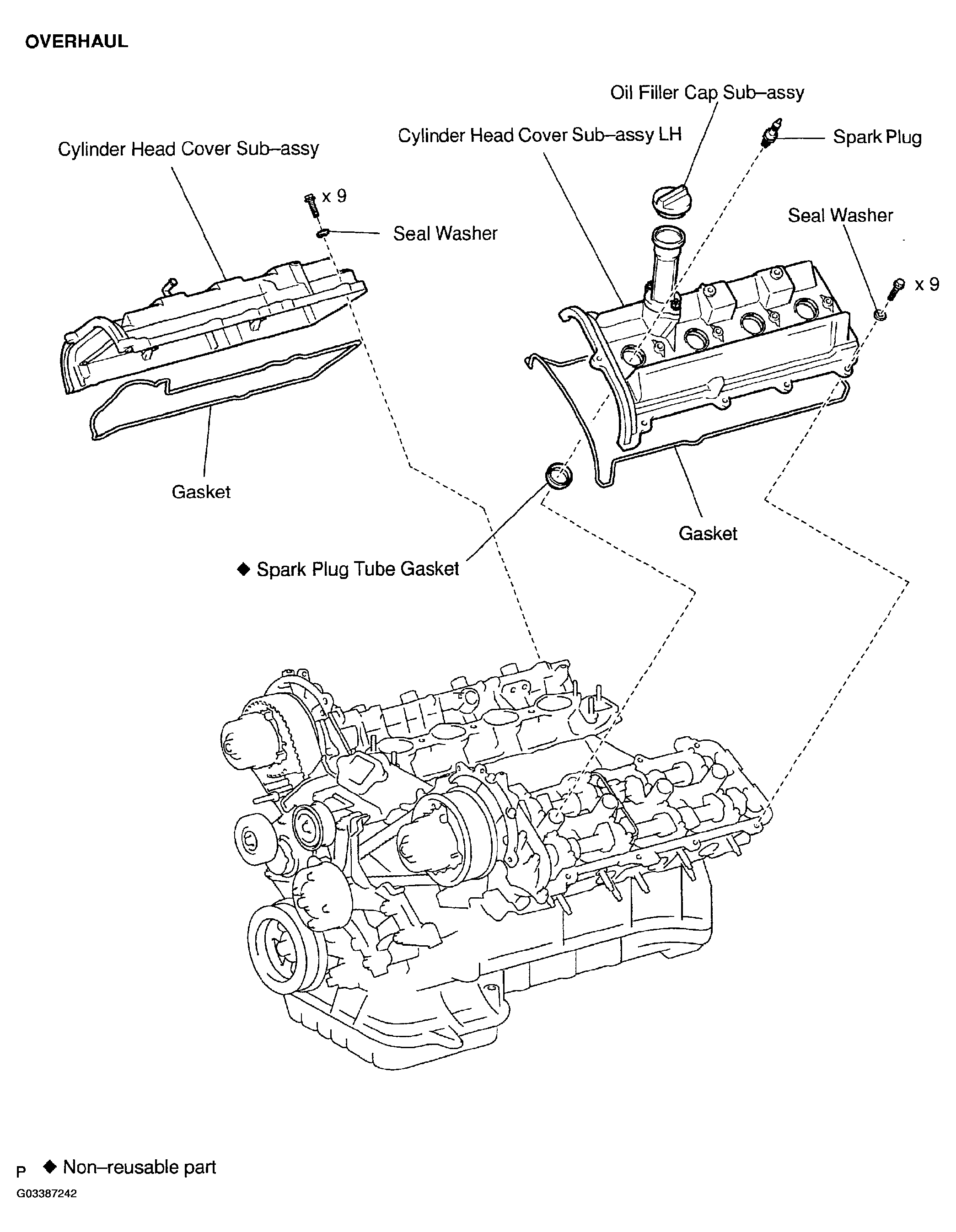

Fig 7: Exploded View Of Partial Engine Assembly Components (7 Of 9)

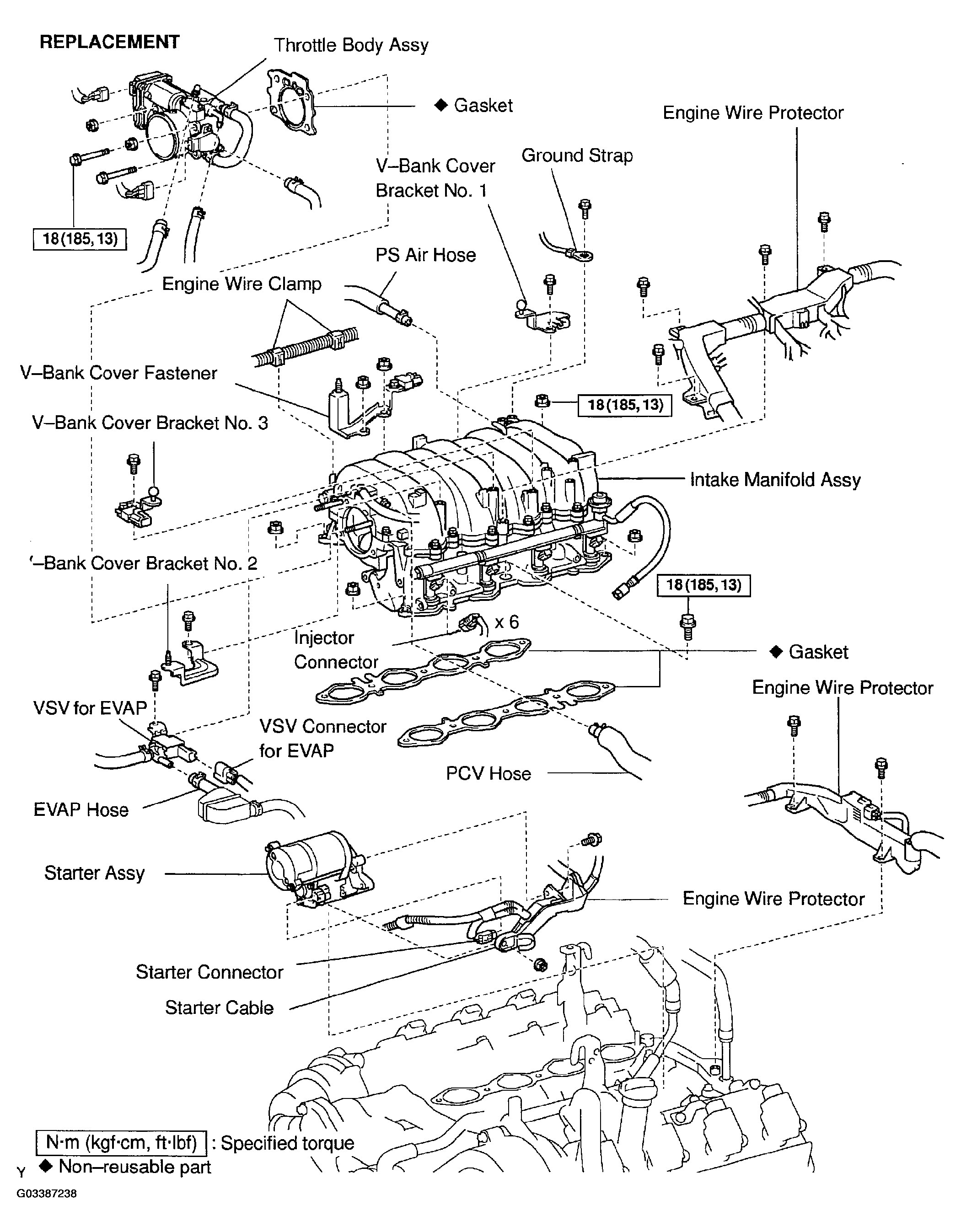

Fig 8: Exploded View Of Partial Engine Assembly Components (8 Of 9)

Fig 9: Exploded View Of Partial Engine Assembly Components (9 Of 9)
