Home >> Lexus >> 2002 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Pump ASSY >> Components

Fuel Pump ASSY: Components

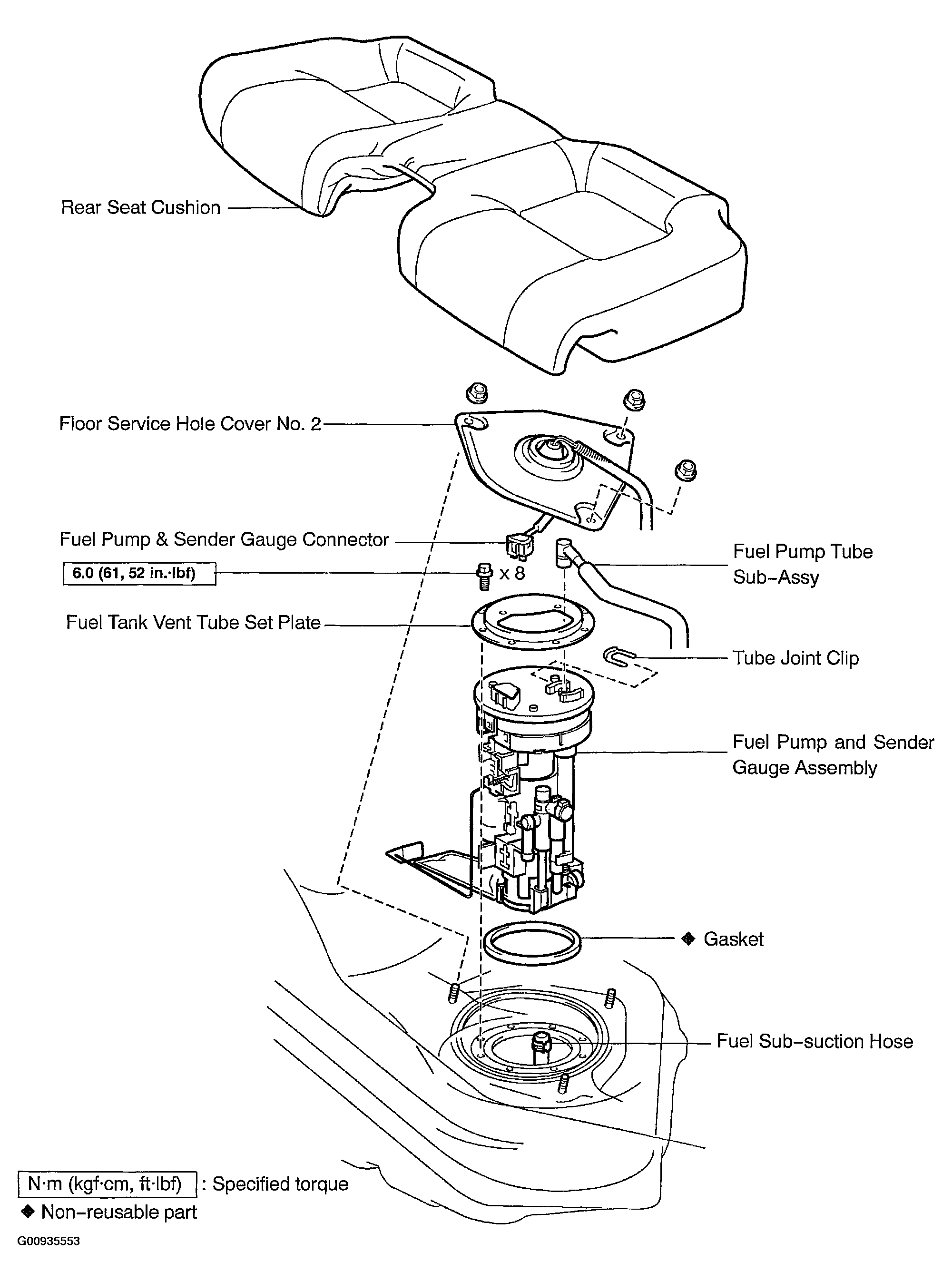

Fig 1: Identifying Components Of Fuel Pump Assy

G00935553

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
