Vane Pump ASSY: Components

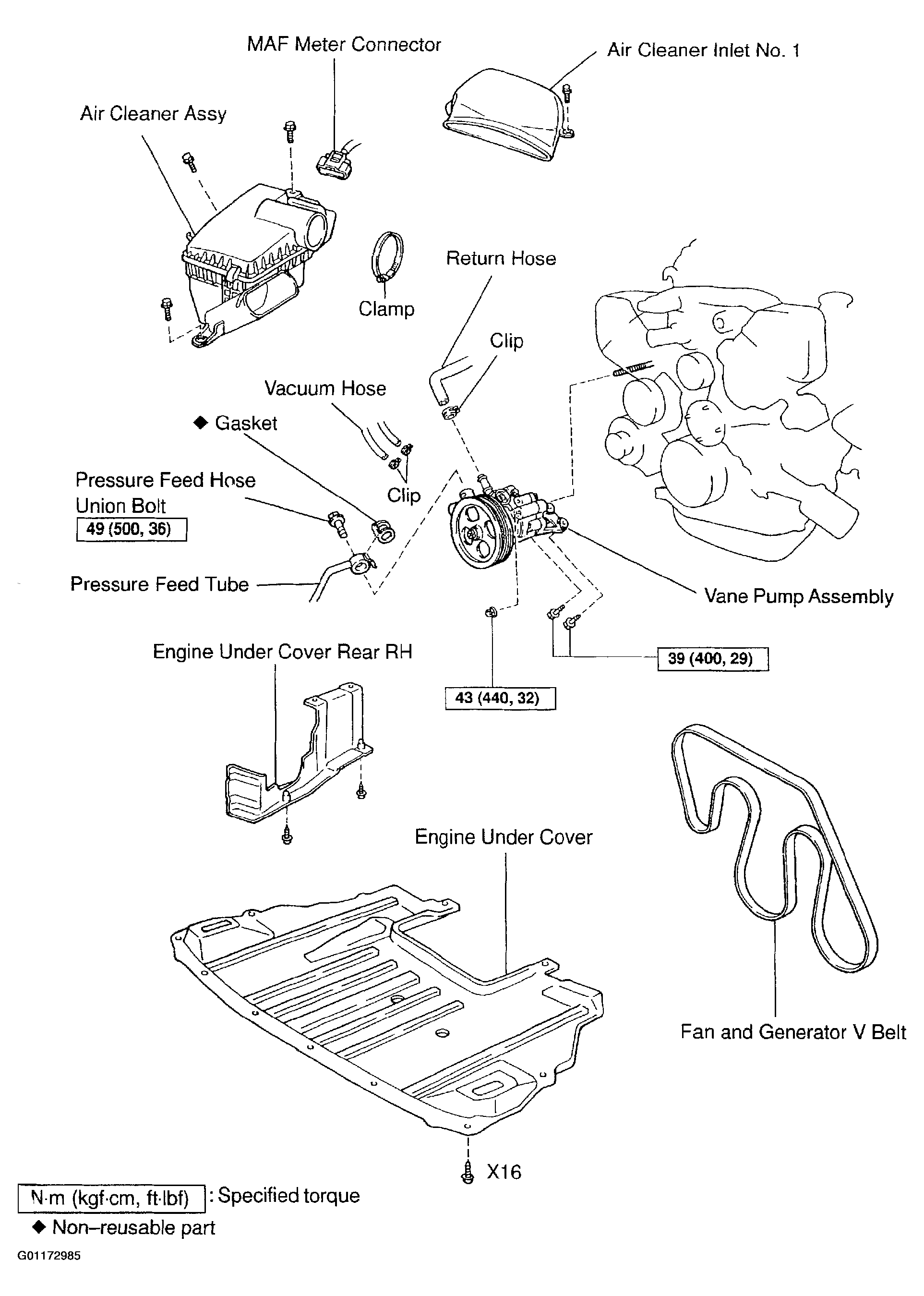

Fig 1: Removing/Installing Power Steering Vane Pump Assembly And Related Components And Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

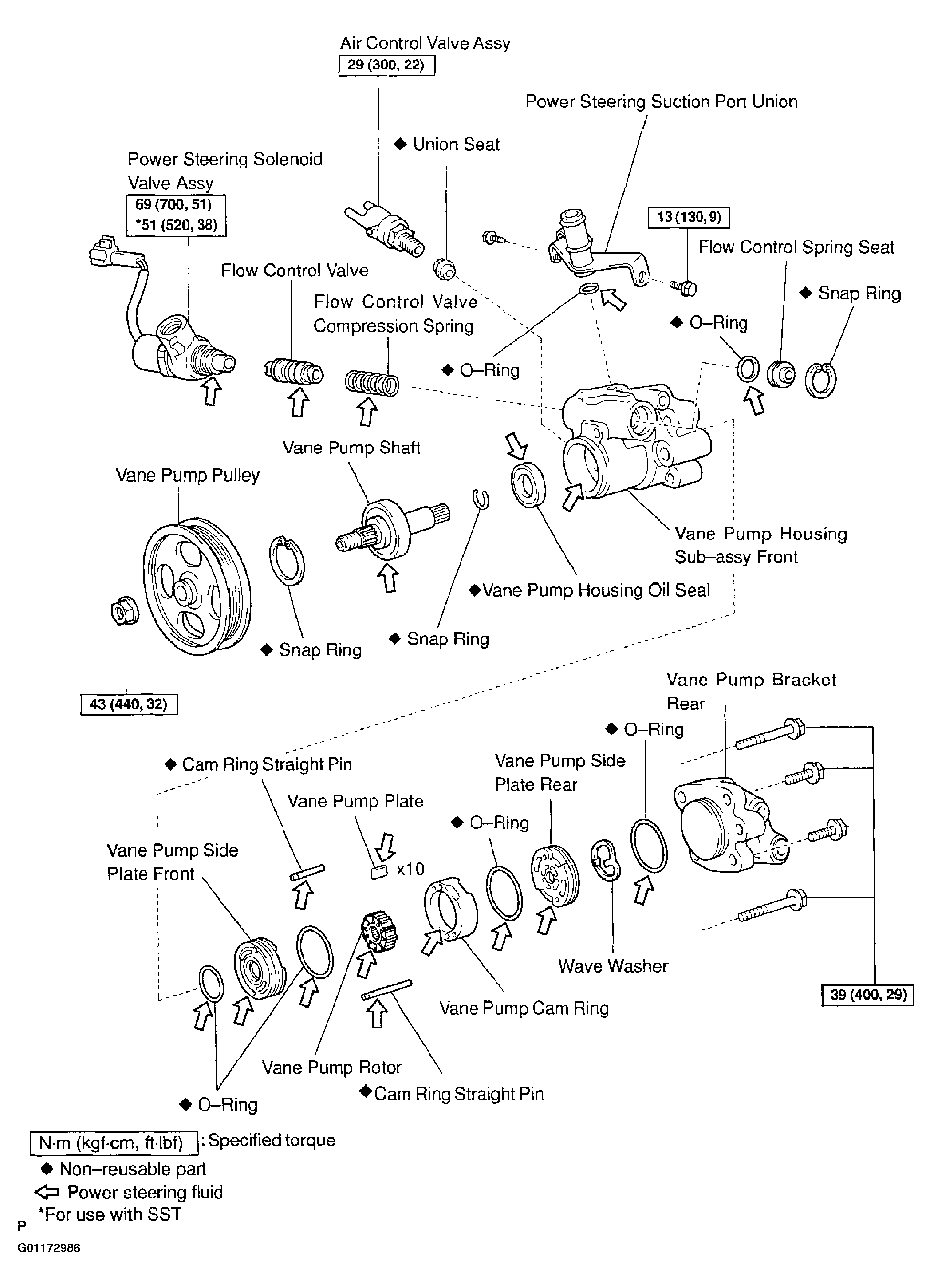

Fig 2: Exploded View Of Power Steering Vane Pump Assembly Components And Torque Specifications
