Fuel Tank ASSY: Components

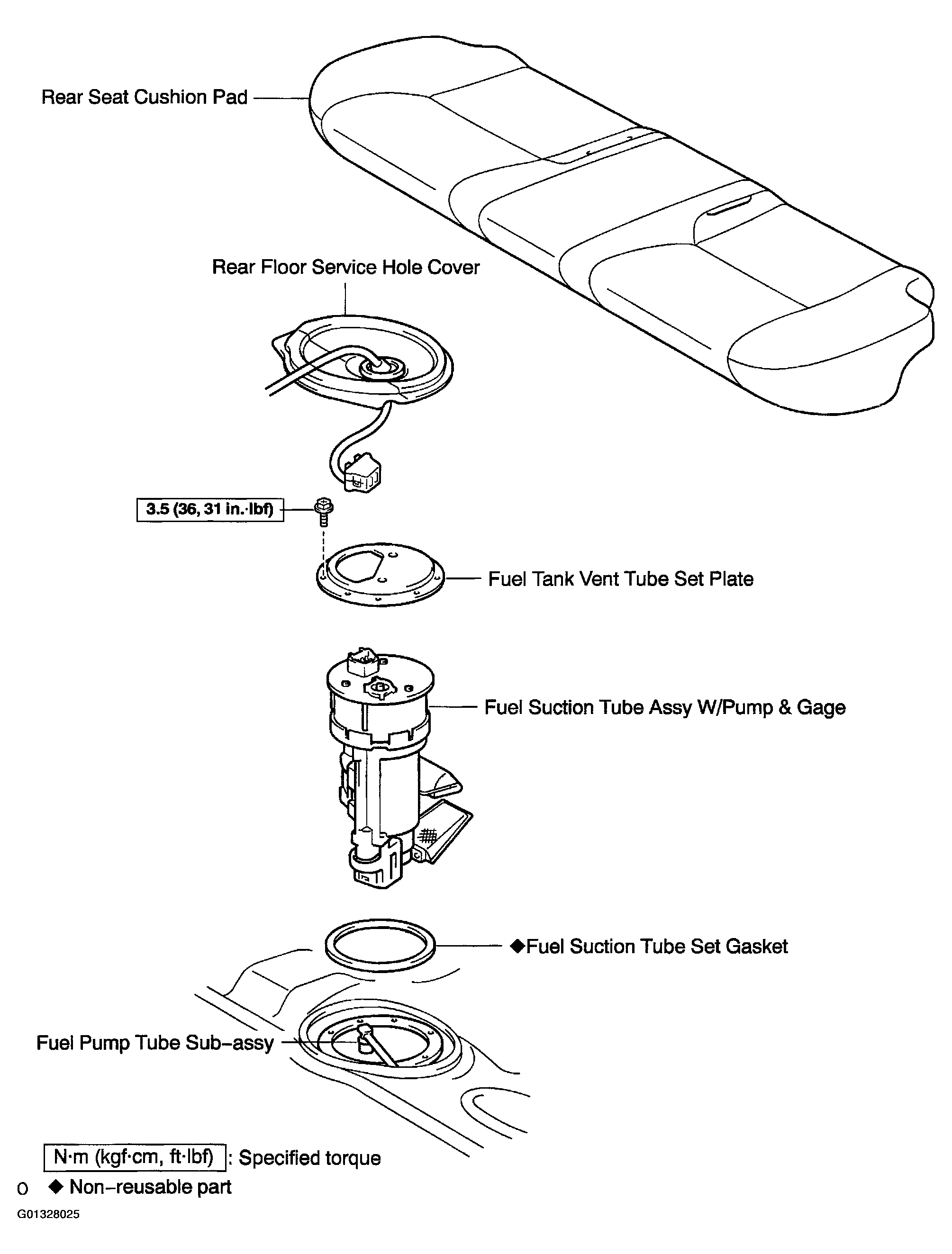

Fig 1: Identifying Components (1 Of 3)
G01328025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

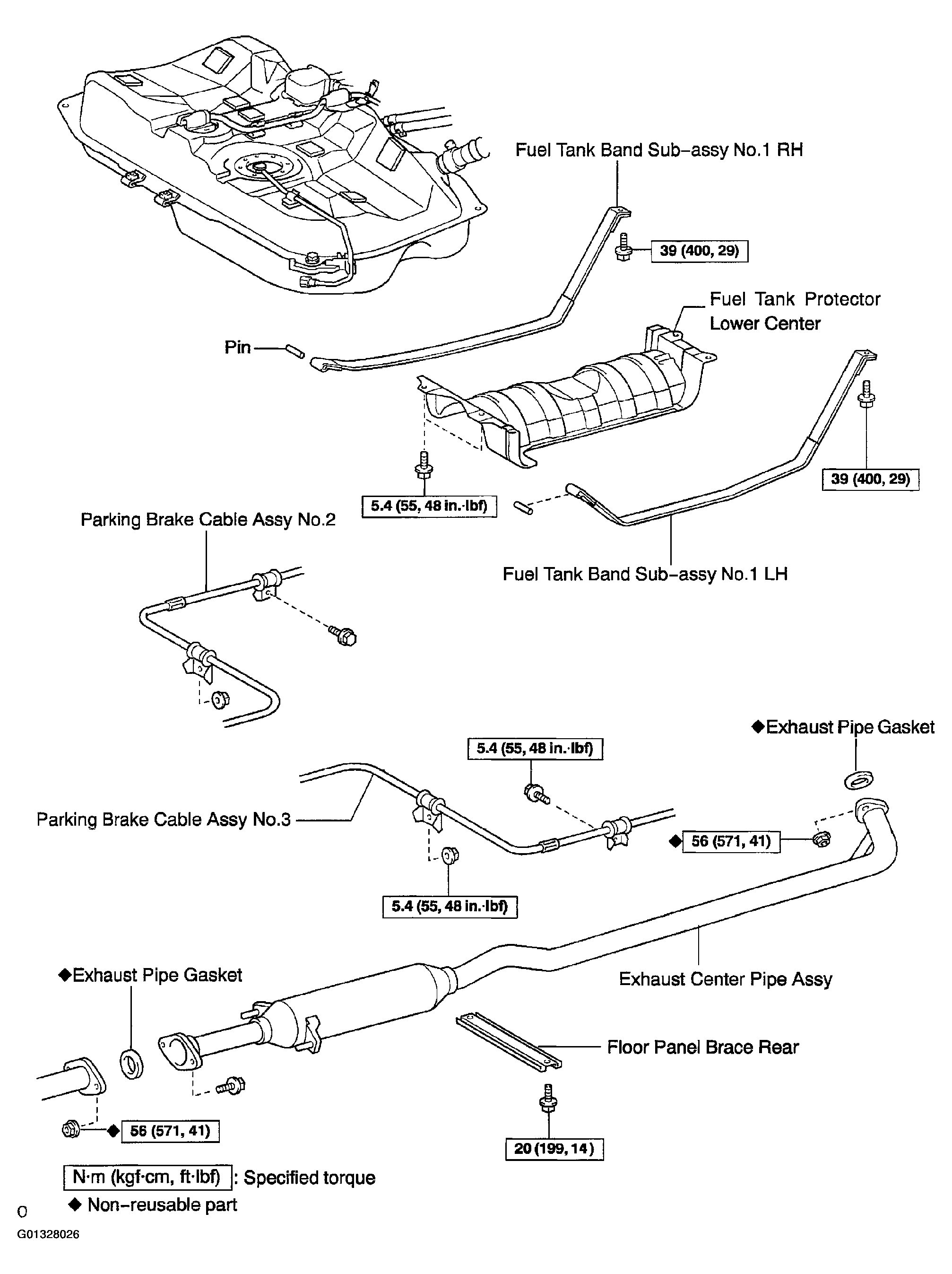

Fig 2: Identifying Components (2 Of 3)
G01328026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

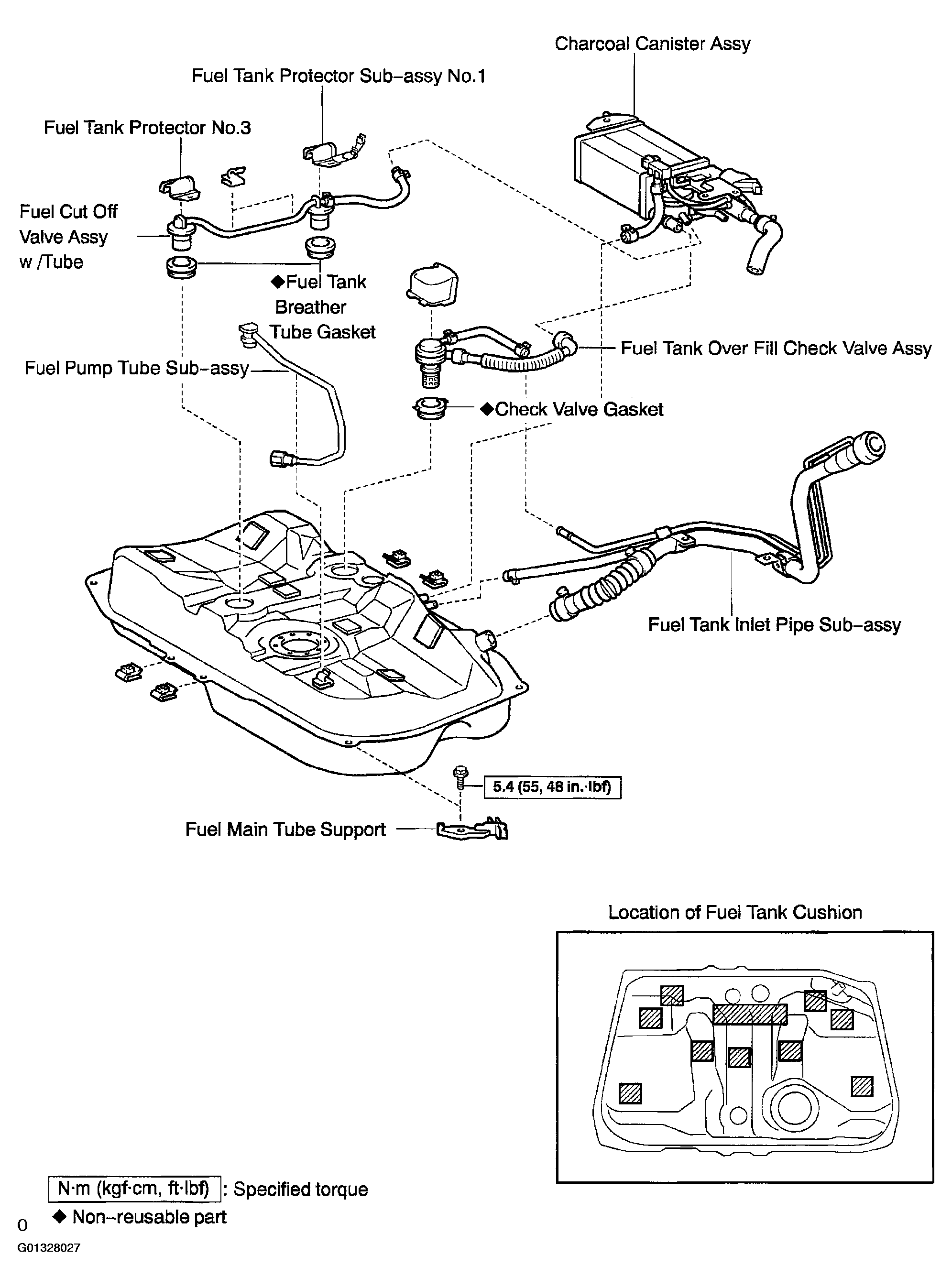

Fig 3: Identifying Components (3 Of 3)
G01328027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
