Vehicle Lift And Support Locations

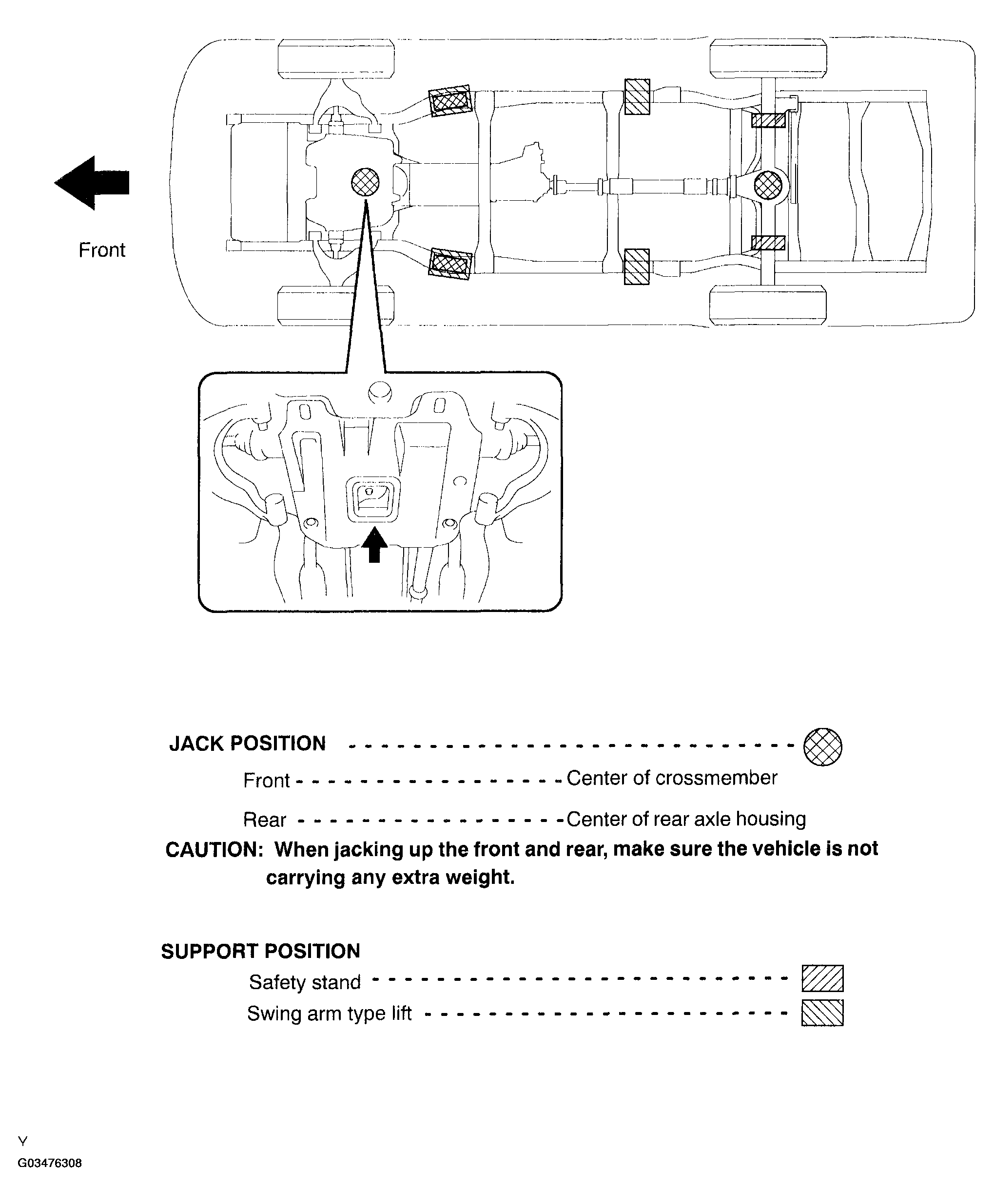

Fig 1: Locating Vehicle Lift & Support
G03476308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
