Home >> Lexus >> 2003 >> IS 300 SportCross >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

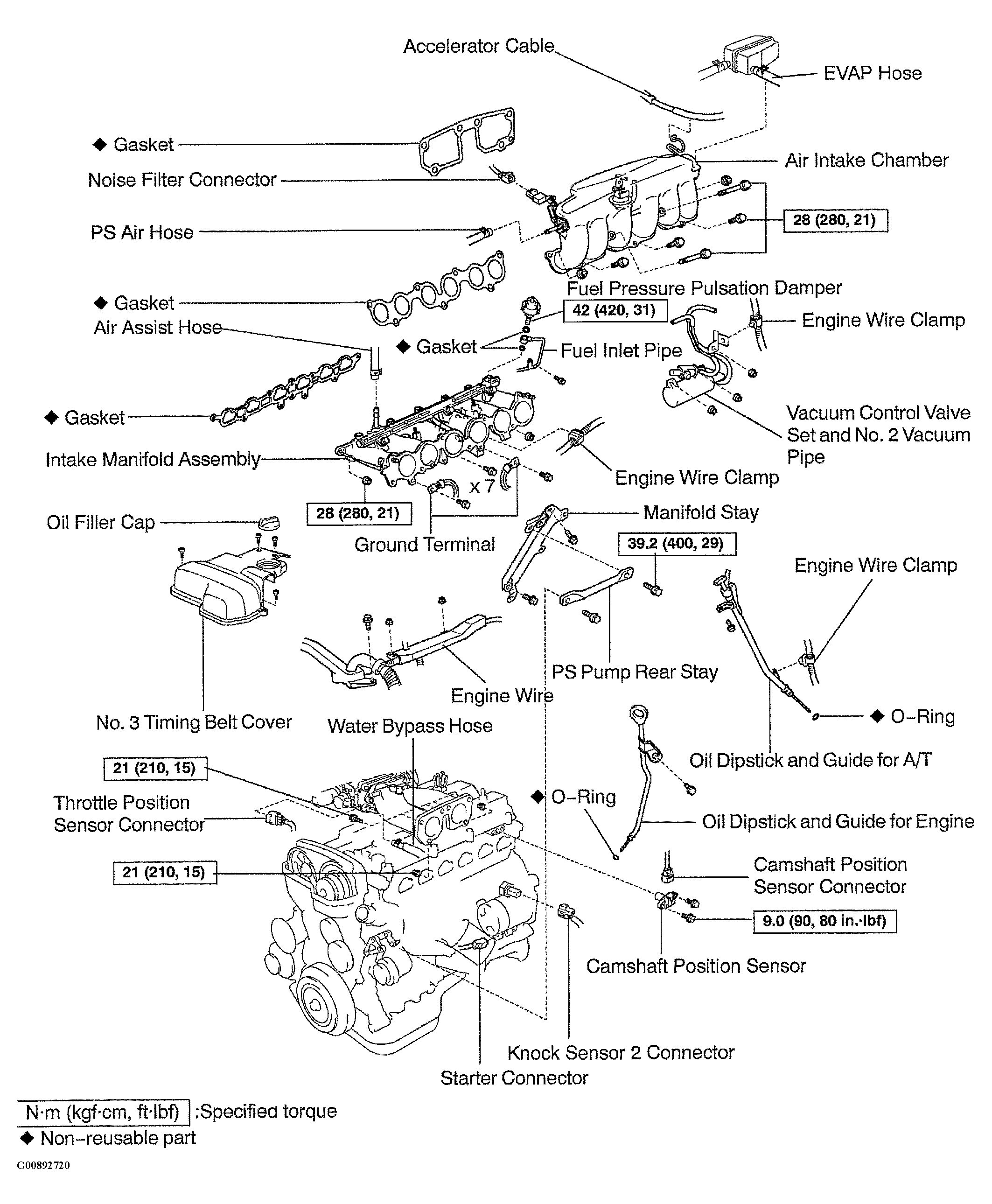

Fig 1: Identifying Camshaft Position Sensor Components
G00892720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
