Overhead Junction Block: Circuit

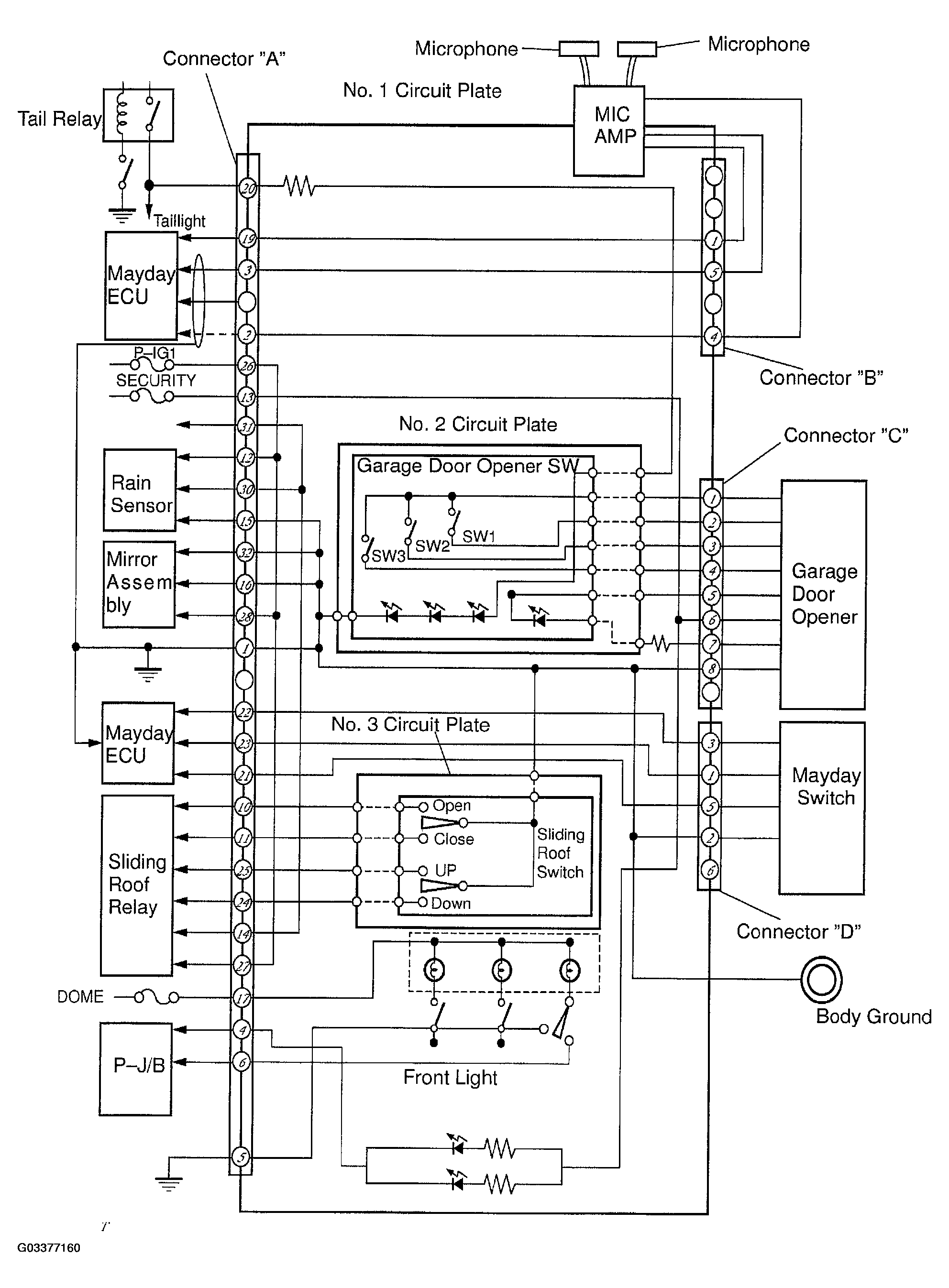

Fig 1: Identifying Overhead Junction Block Circuit Diagram

G03377160

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
