Home >> Lexus >> 2003 >> LS 430 >> Repair and Diagnosis >> Electrical >> Body Electrical >> Overhead Junction Block >> Location

Overhead Junction Block: Location

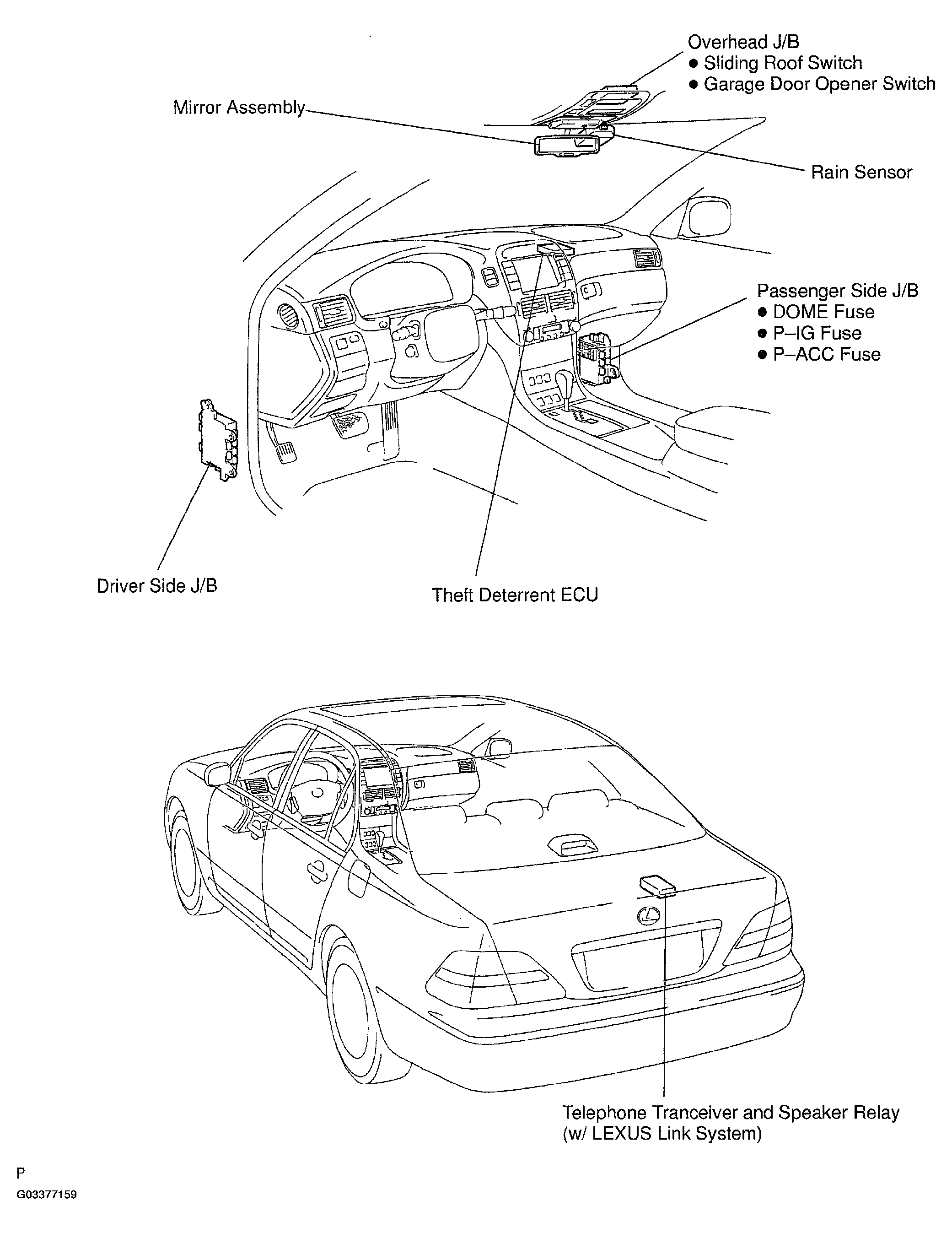

Fig 1: Locating Overhead Junction Block Components
G03377159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
