Vehicle Lift And Support Locations

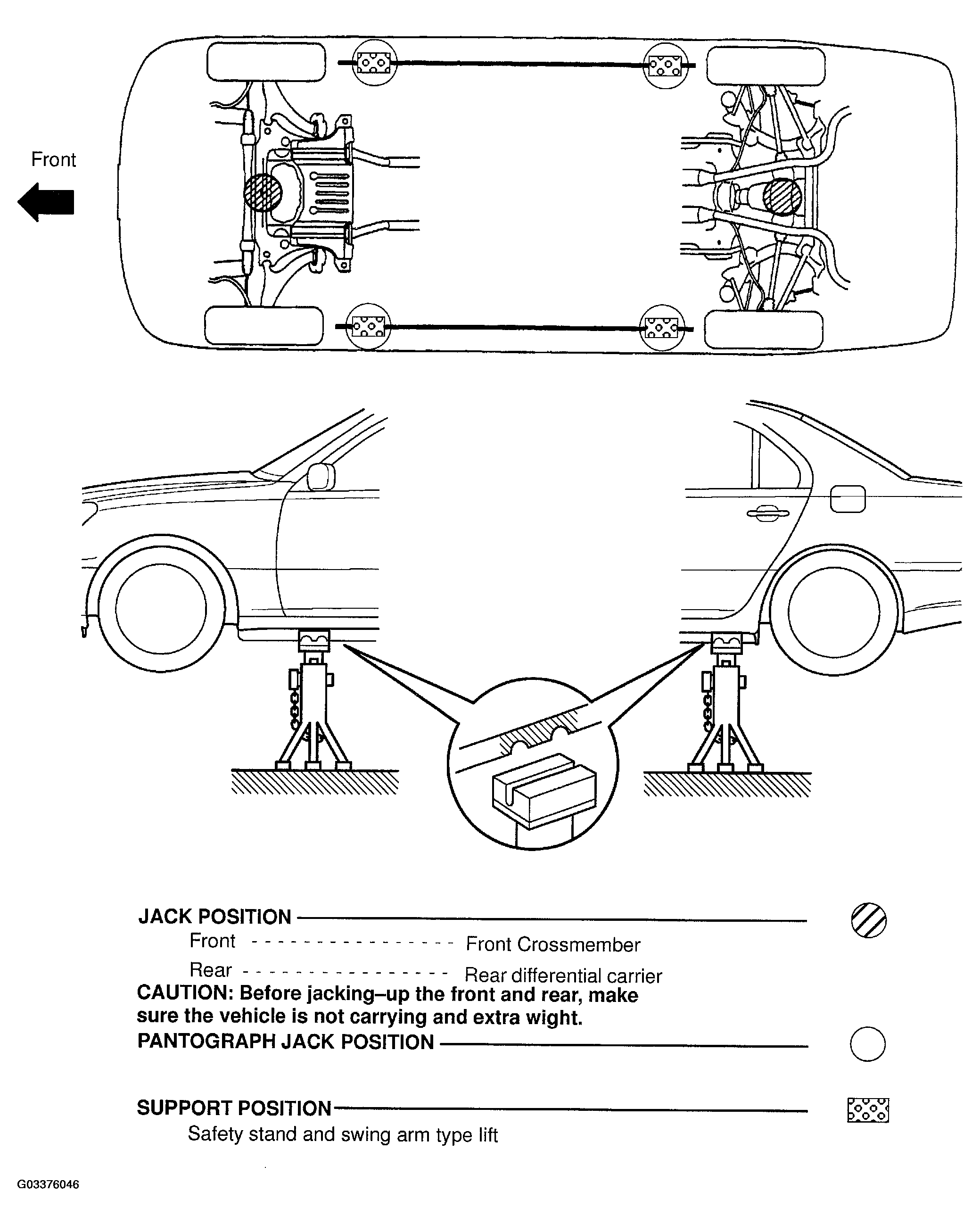

Fig 1: Identifying Vehicle Lift And Support Locations (1 Of 2)
G03376046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

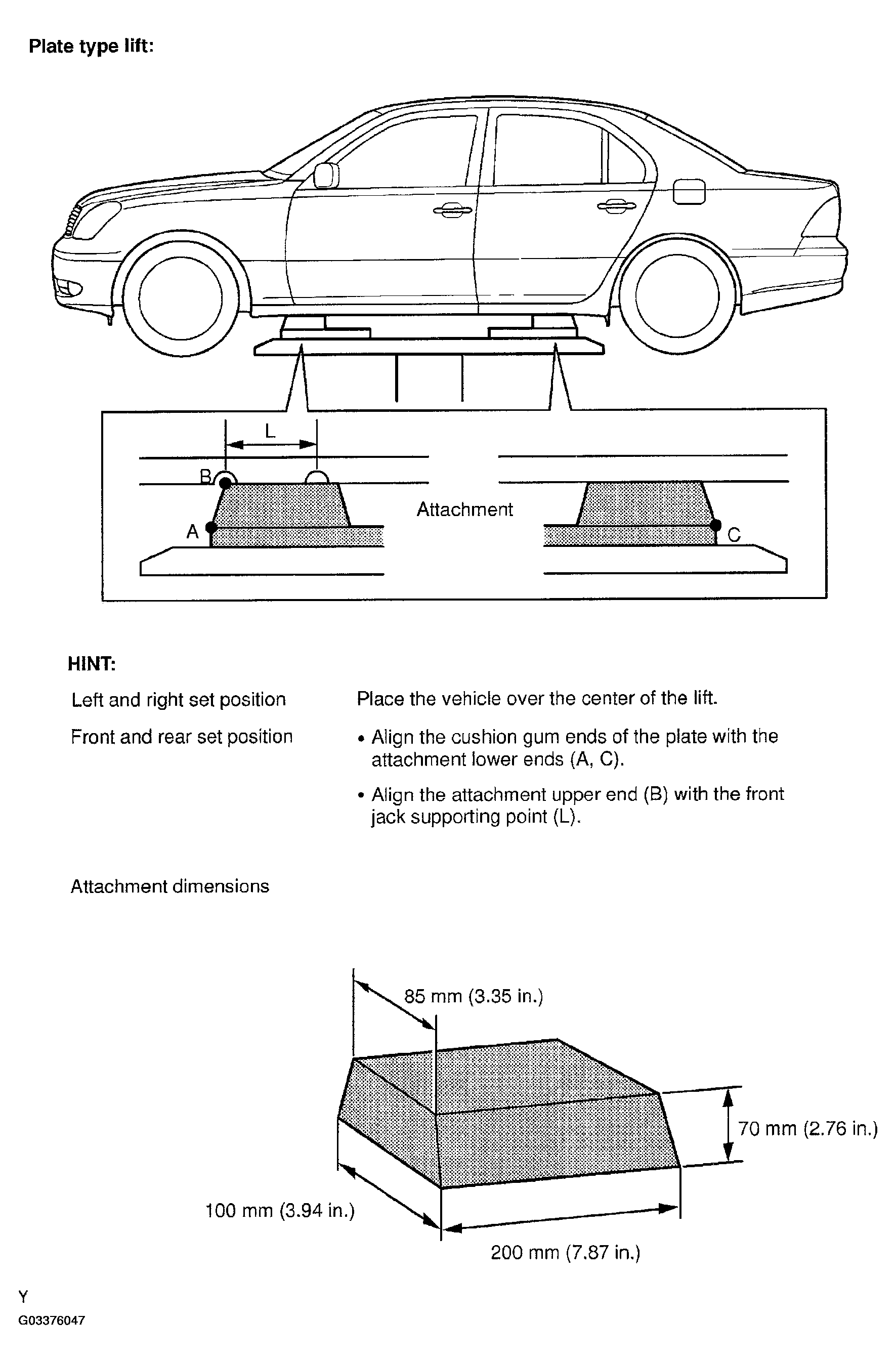

Fig 2: Identifying Vehicle Lift And Support Locations (2 Of 2)
G03376047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
