Home >> Lexus >> 2003 >> LX 470 >> Repair and Diagnosis >> General Information >> Identification >> Introduction >> Repair Instructions >> Vehicle Lift And Support Locations

Vehicle Lift And Support Locations

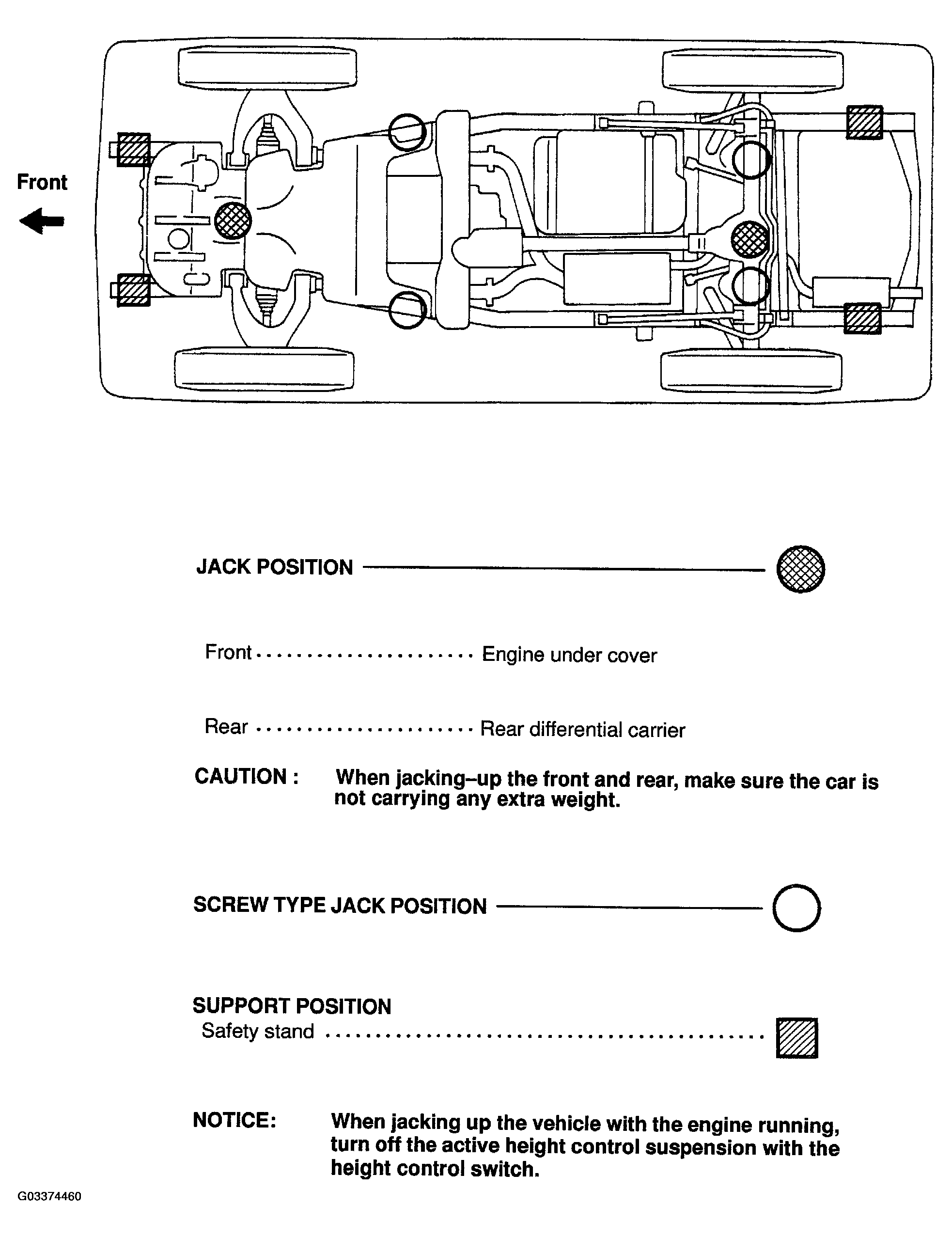

Fig 1: Locating Vehicle Lift And Support (1 Of 2)
G03374460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

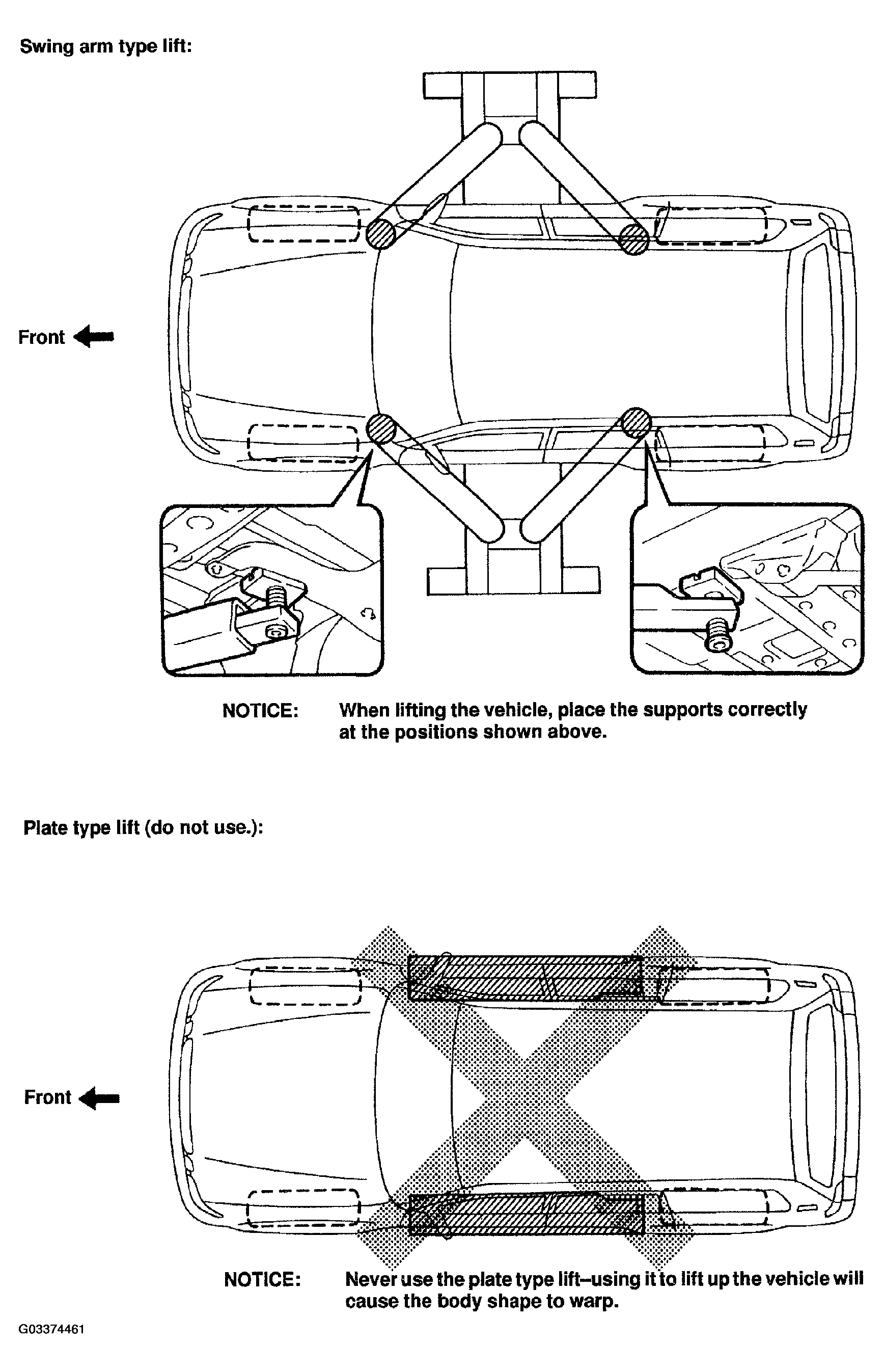

Fig 2: Locating Vehicle Lift And Support (2 Of 2)
G03374461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
