Vehicle Lift And Support Locations

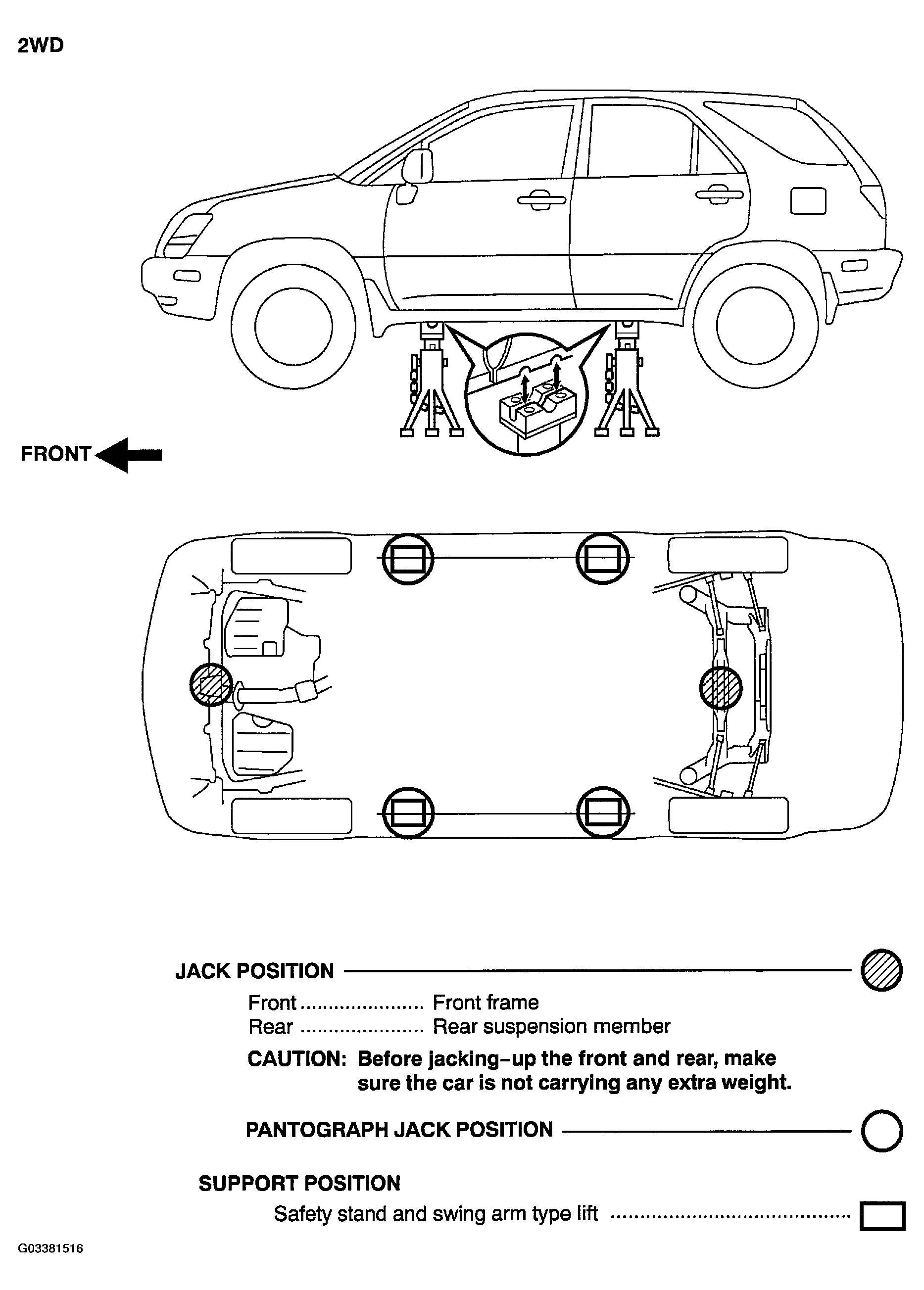

Fig 1: Identifying Vehicle Lift And Support Locations 2WD
G03381516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

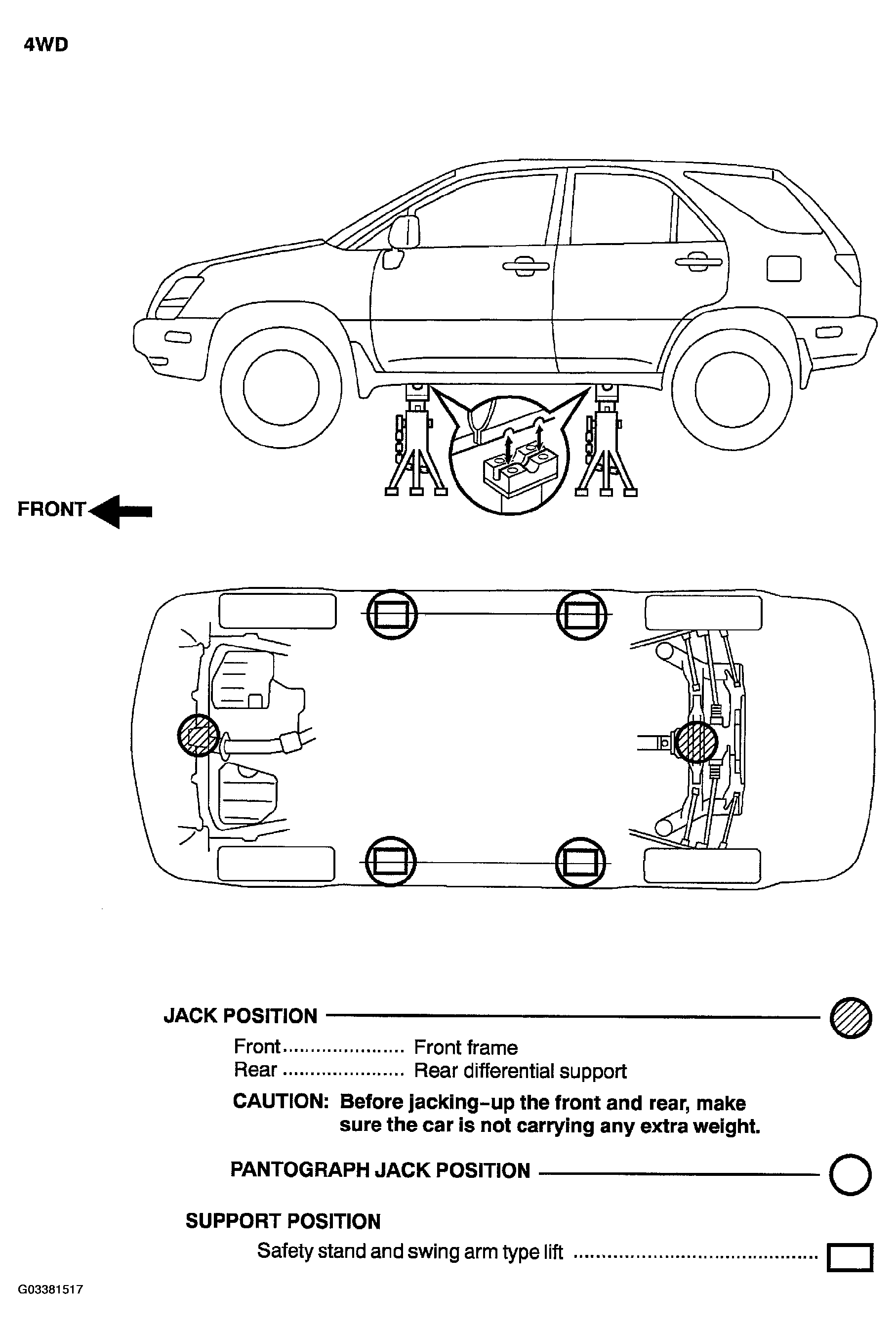

Fig 2: Identifying Vehicle Lift And Support Locations 4WD
G03381517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

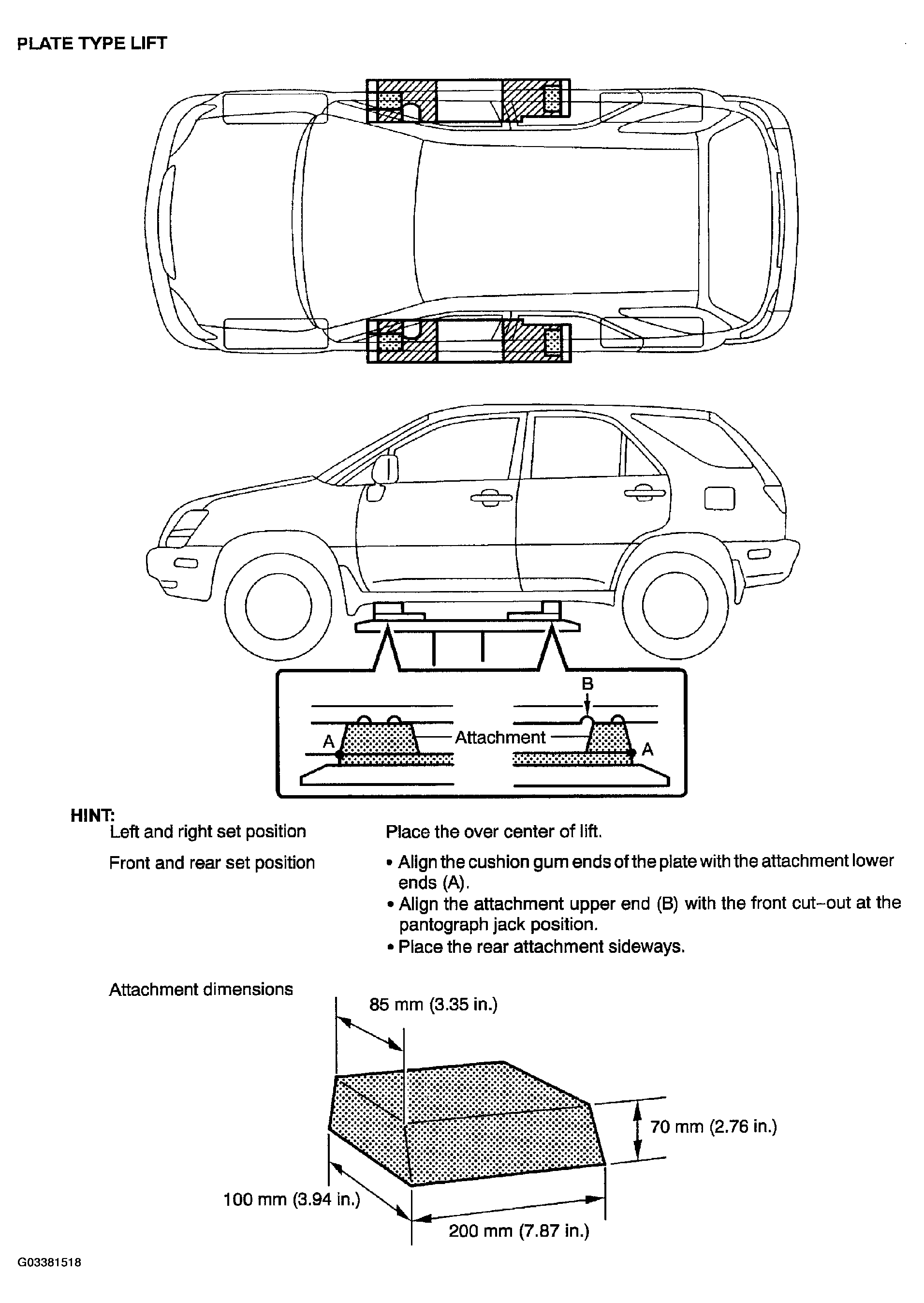

Fig 3: Identifying Vehicle Lift And Support Locations Plate Type Lift
G03381518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
