Fuel Injector ASSY (3MZ-FE): Components

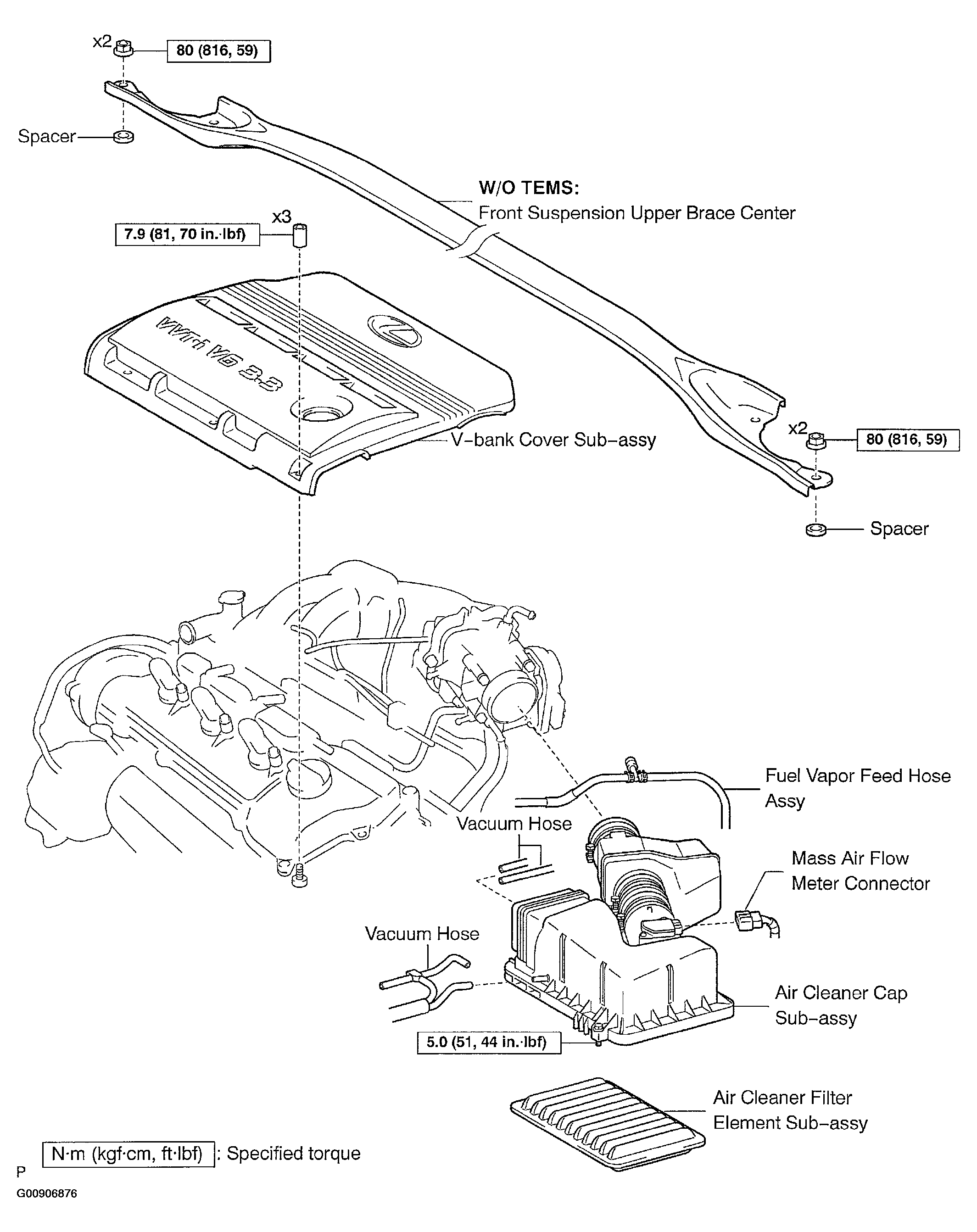

Fig 1: Identifying Fuel Injector Assy (3MZ-FE) Components (1 Of 3)
G00906876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

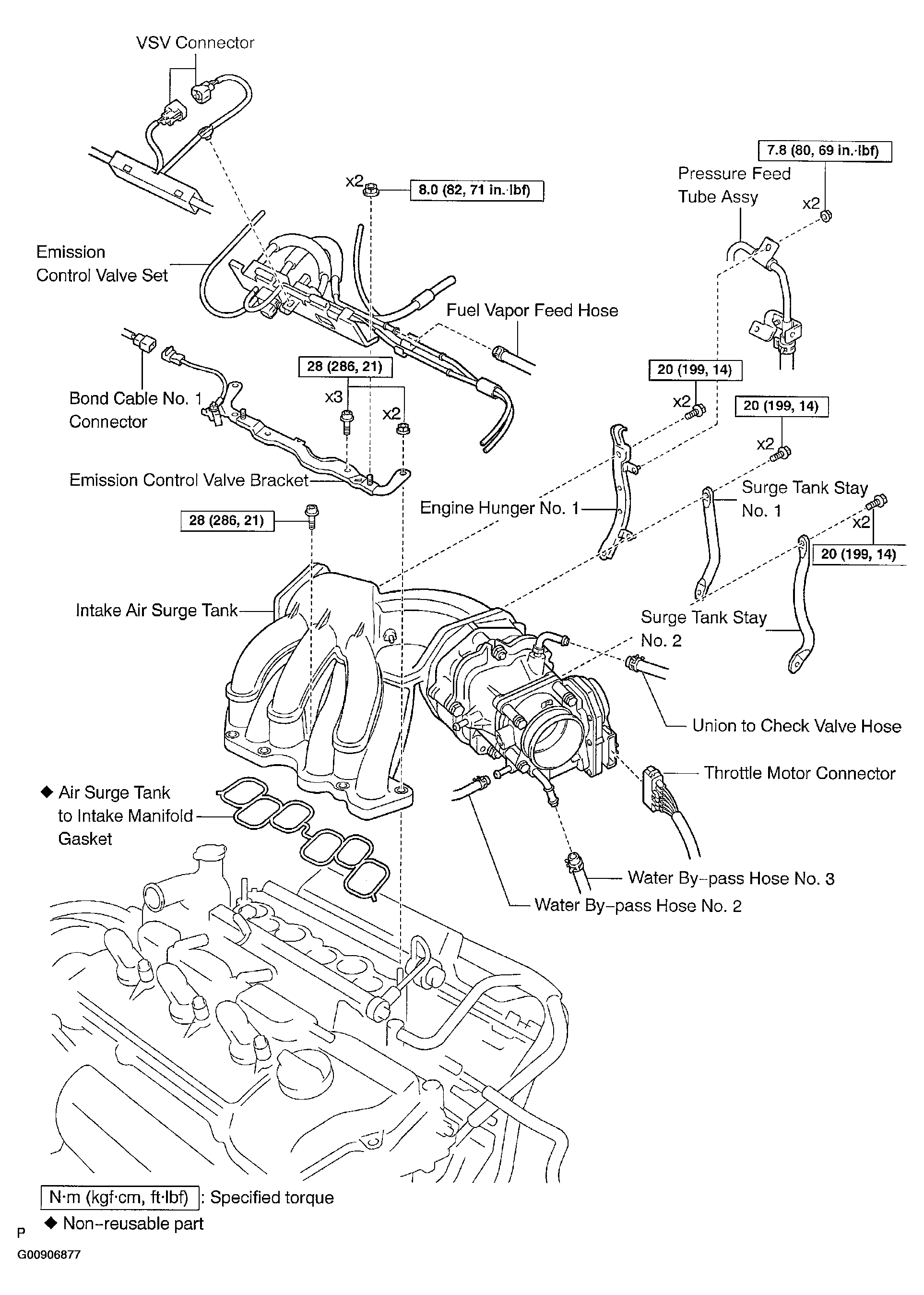

Fig 2: Identifying Fuel Injector Assy (3MZ-FE) Components (2 Of 3)
G00906877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

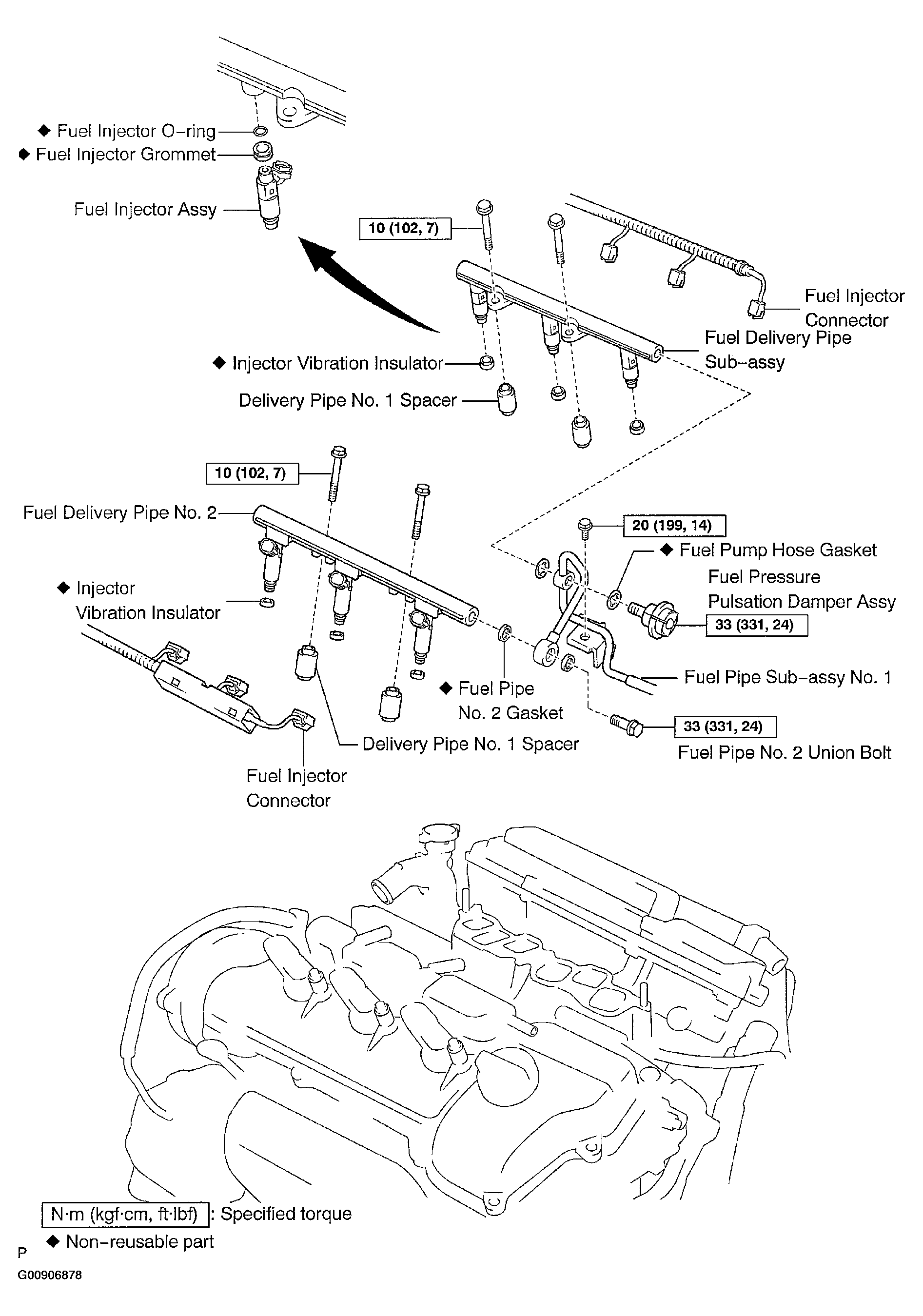

Fig 3: Identifying Fuel Injector Assy (3MZ-FE) Components (3 Of 3)
G00906878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
