ACIS Control Circuit: Wiring Diagram

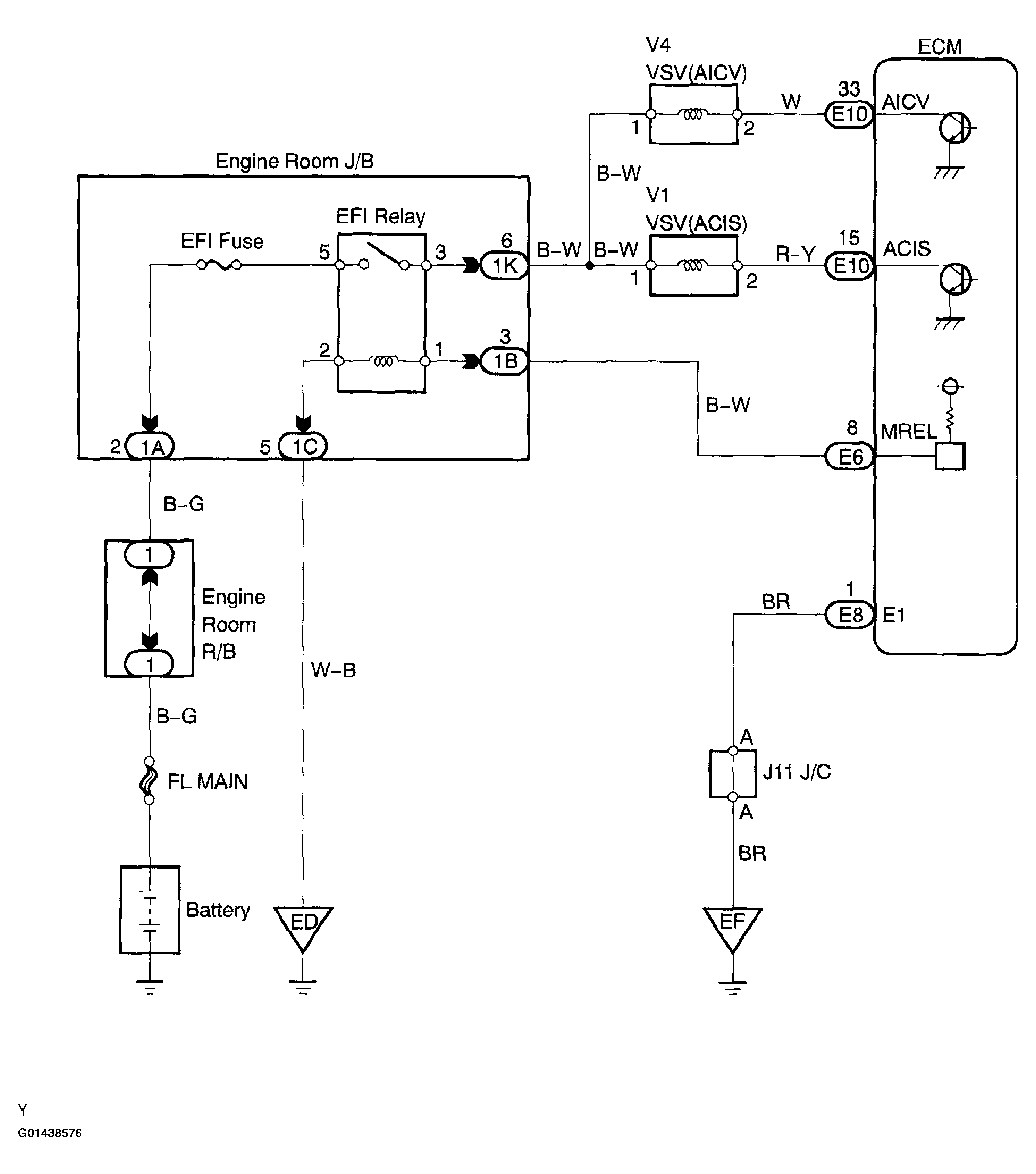

Fig 1: Wiring Diagram - ACIS Control Circuit

G01438576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
