Power Window Control System: Location

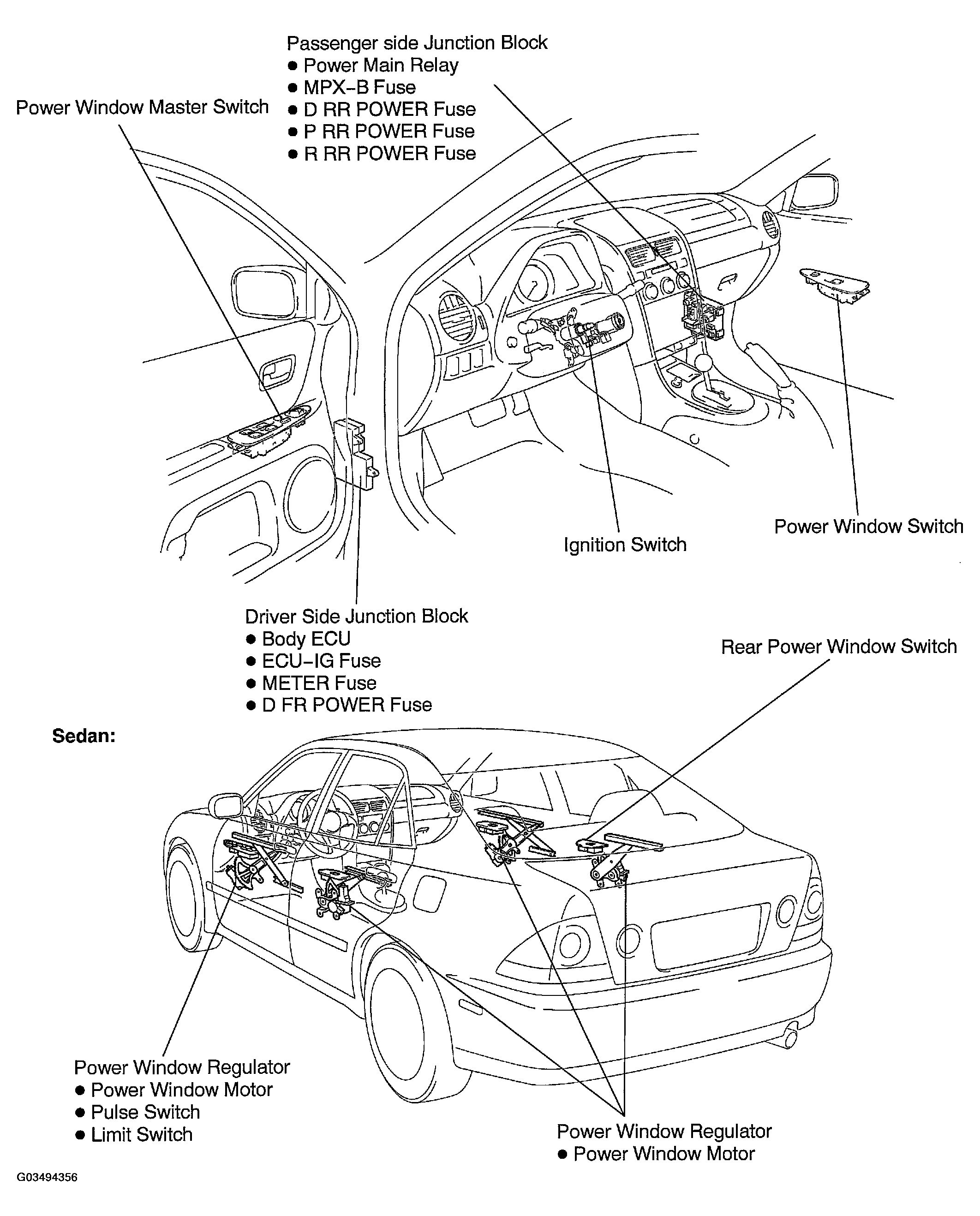

Fig 1: Locating Power Window Control System Components (1 Of 2)
G03494356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

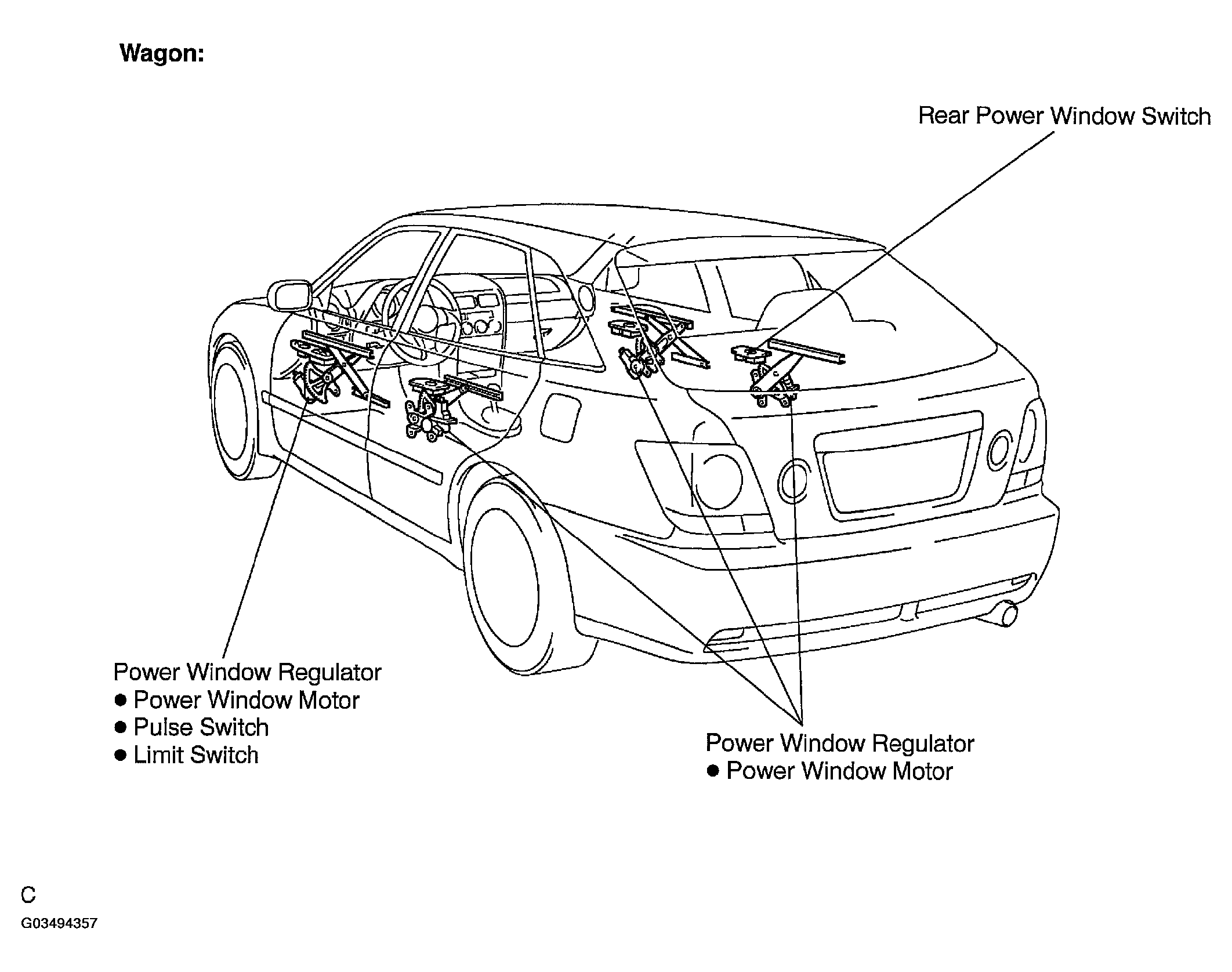

Fig 2: Locating Power Window Control System Components (2 Of 2)
G03494357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
