Fuel Injector ASSY: Components

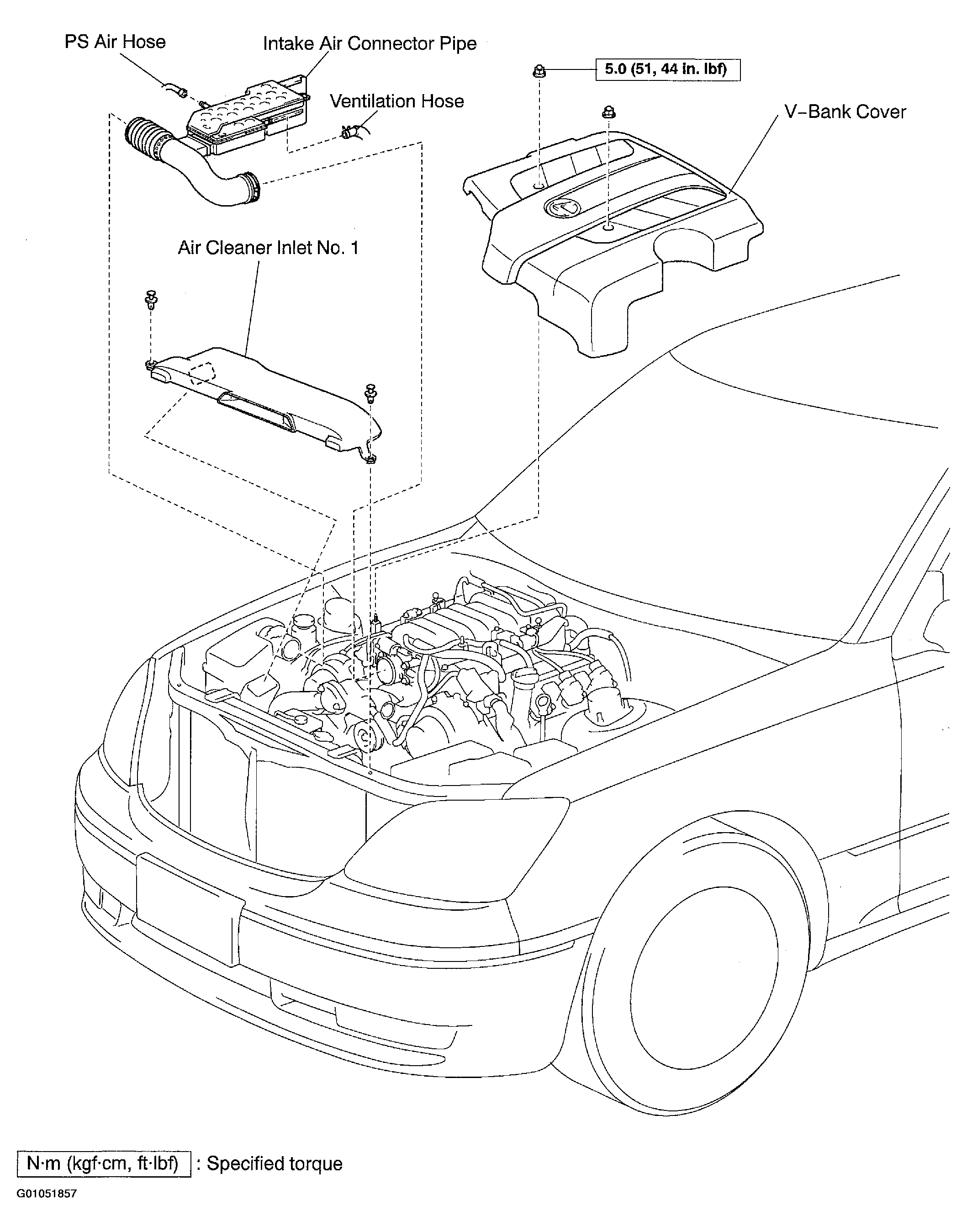

Fig 1: Identifying Fuel Injector Assy Components (1 Of 3)
G01051857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

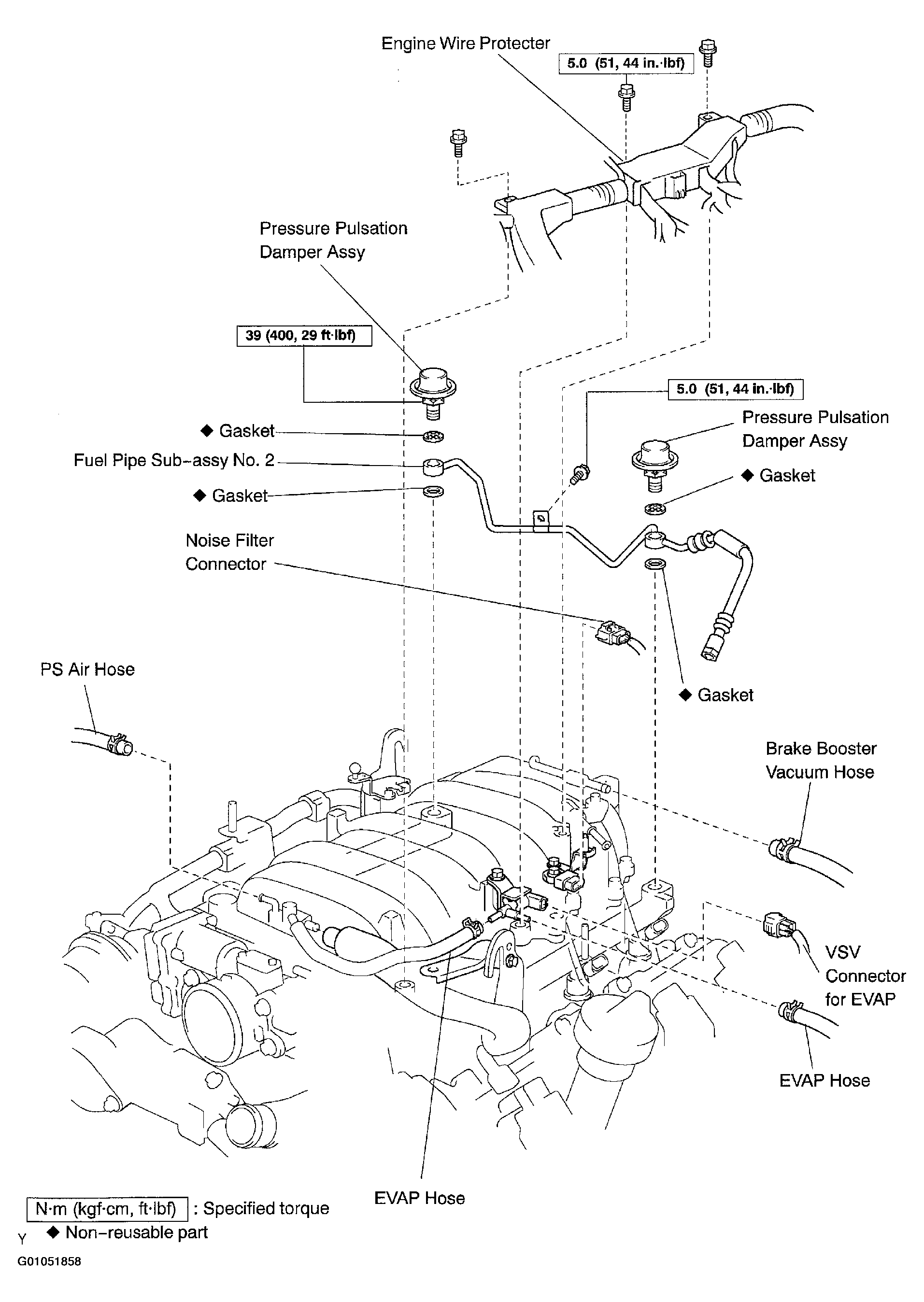

Fig 2: Identifying Fuel Injector Assy Components (2 Of 3)
G01051858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

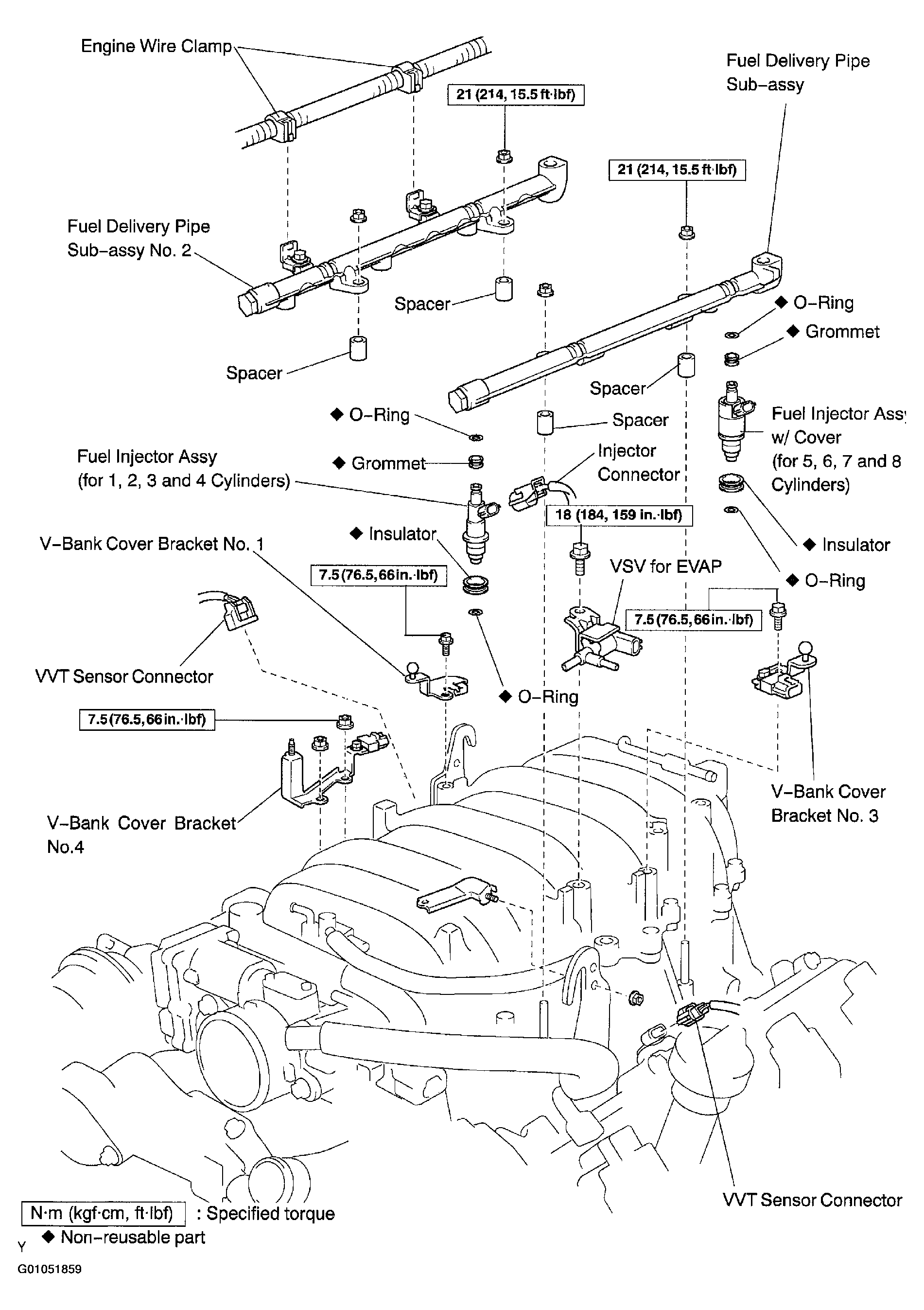

Fig 3: Identifying Fuel Injector Assy Components (3 Of 3)
G01051859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
