Fuel Pump ASSY: Components

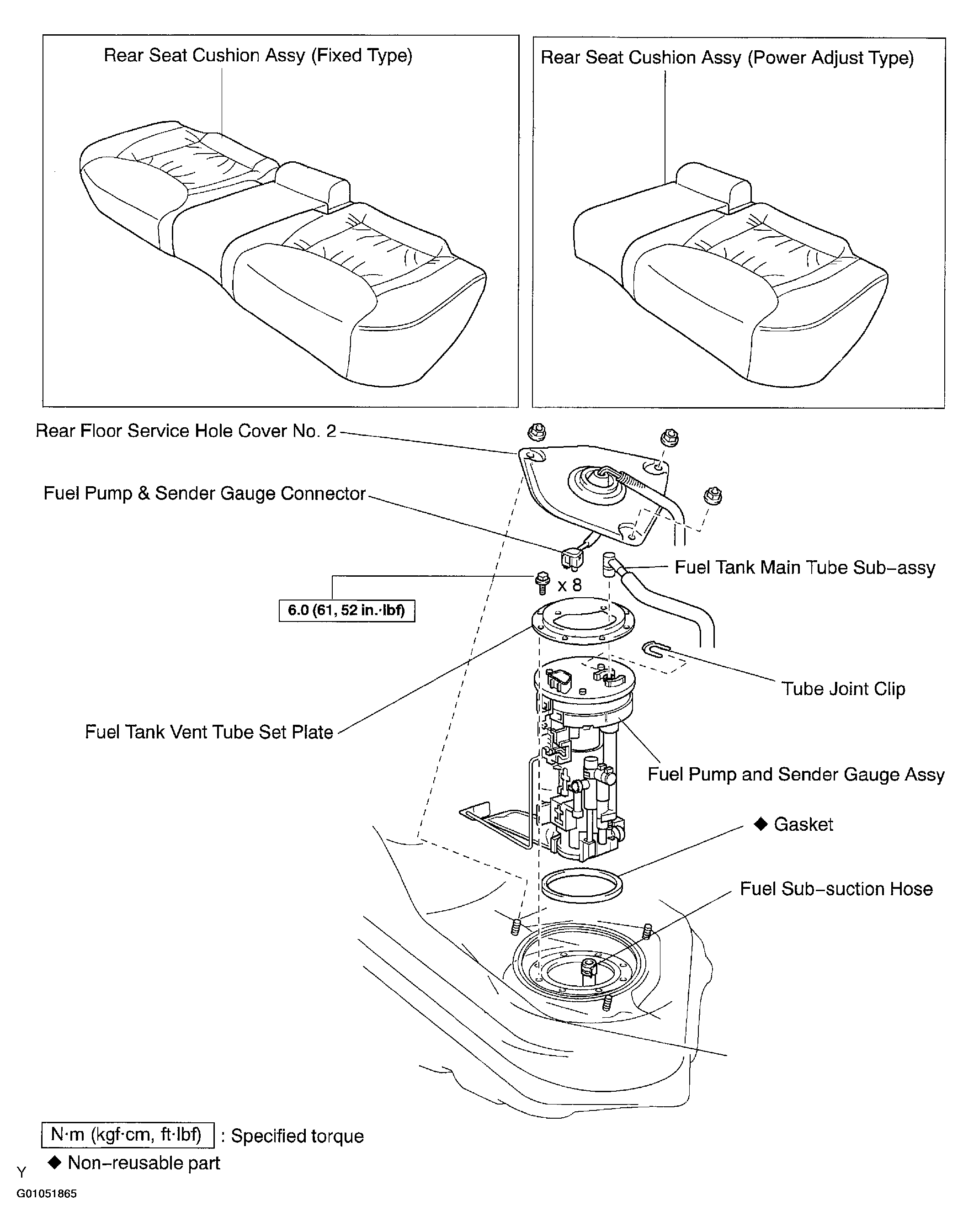

Fig 1: Identifying Fuel Pump Assy Components And Seat Cushion Assy
G01051865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

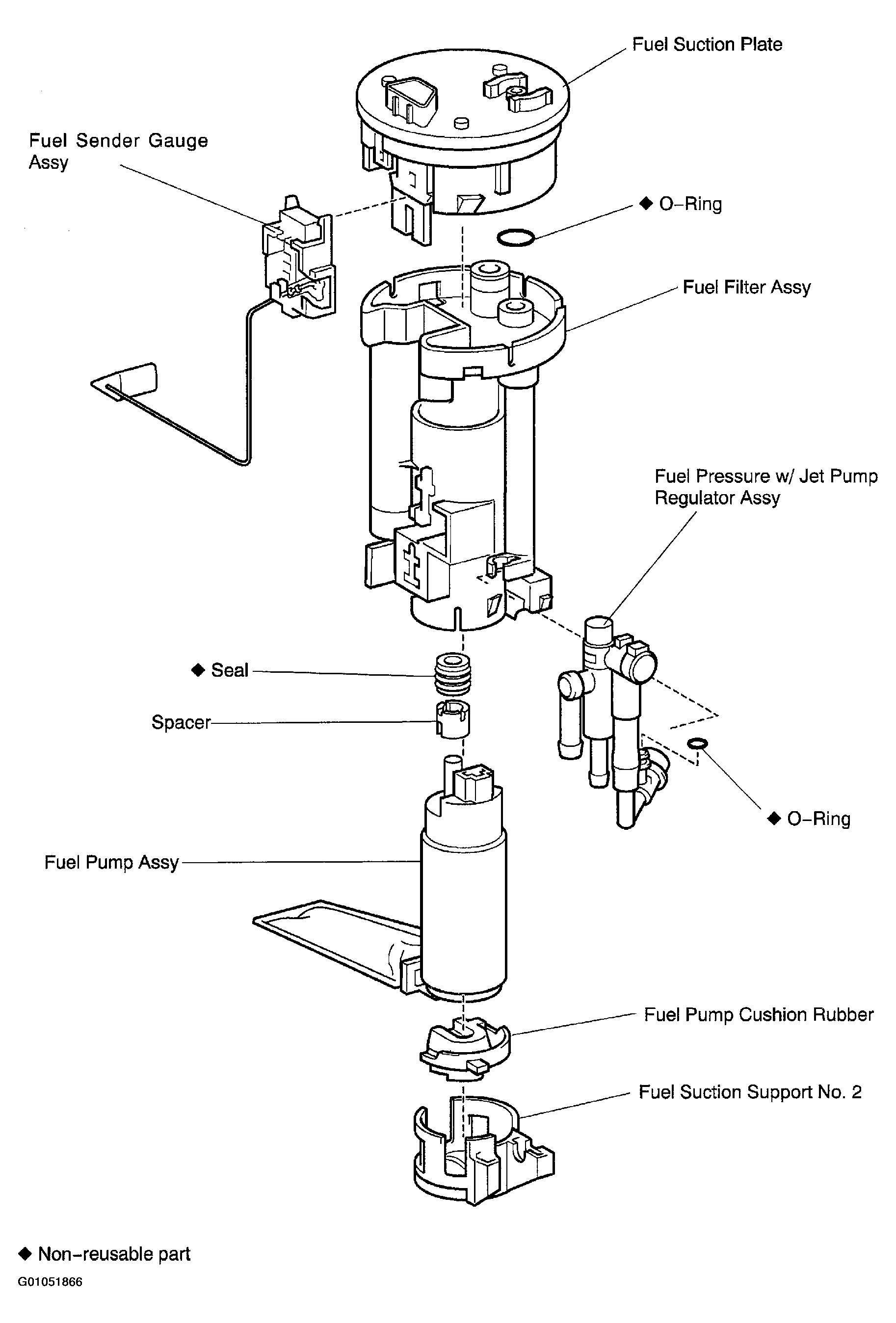

Fig 2: Identifying Fuel Pump Assy Components
G01051866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
