LS 430
>>
Repair and Diagnosis
>>
Engine Performance
>>
Testing & Diagnosis
>>
Engine Control System
>>
SFI System
>>
System Diagram
System Diagram
Engine control system is determined by the ECM based on signals from various sensors.

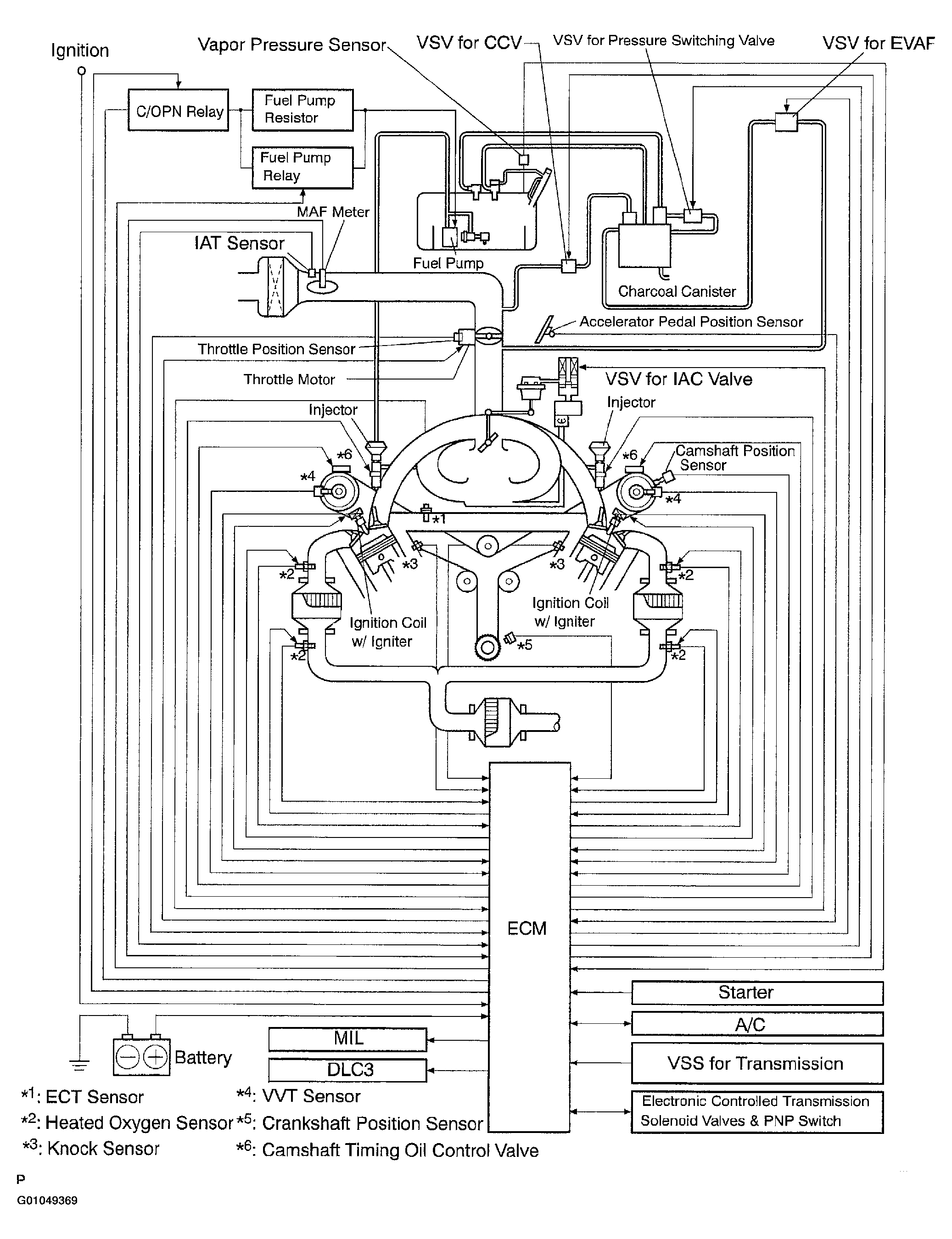

Fig 1: System Diagram - Engine Control System
