Home >> Lexus >> 2004 >> LS 430 >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

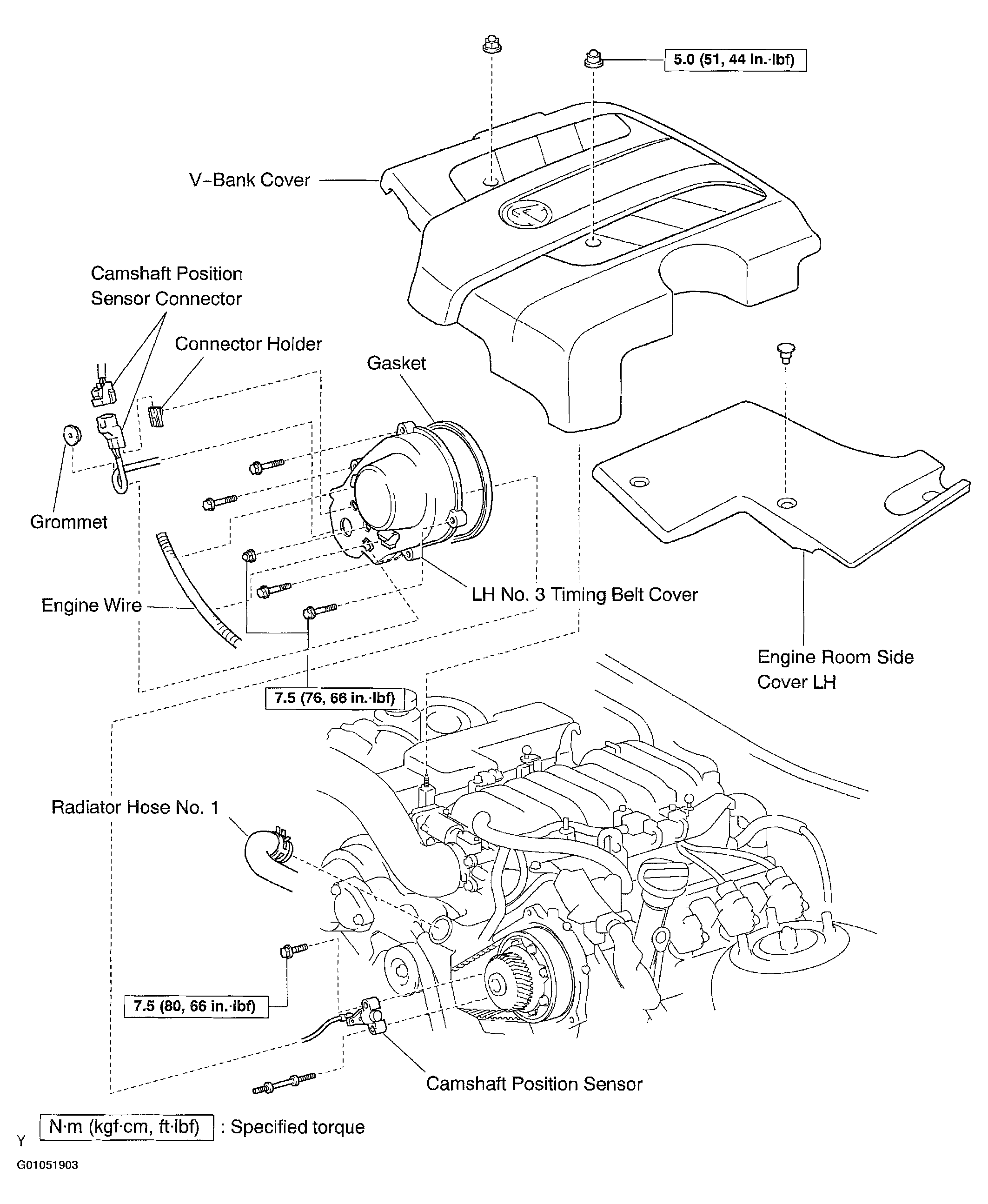

Fig 1: Identifying Camshaft Position Sensor Components
G01051903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
