System Diagram

The ECM determines ignition timing based on signals from various sensors.

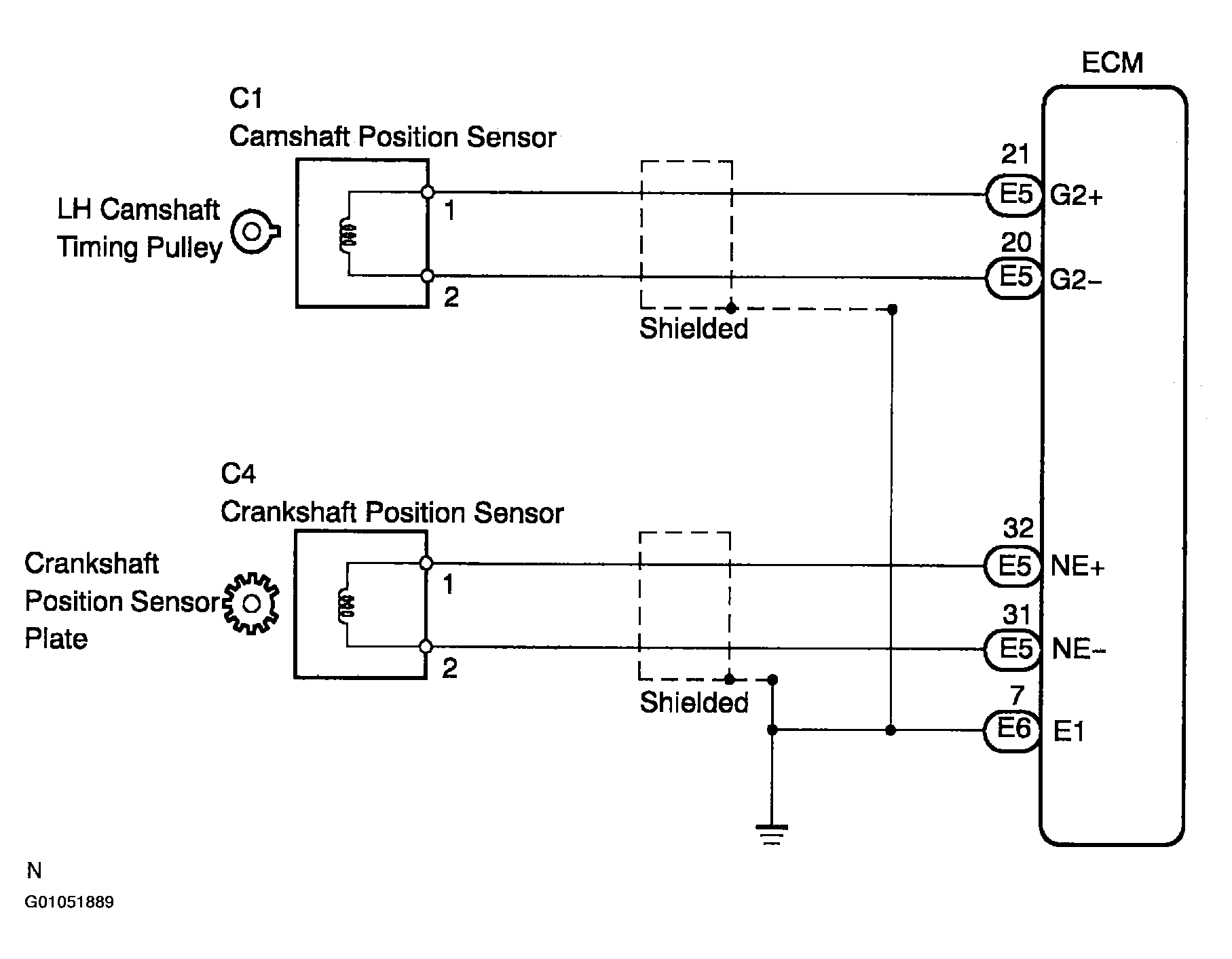

Fig 1: Ignition System Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

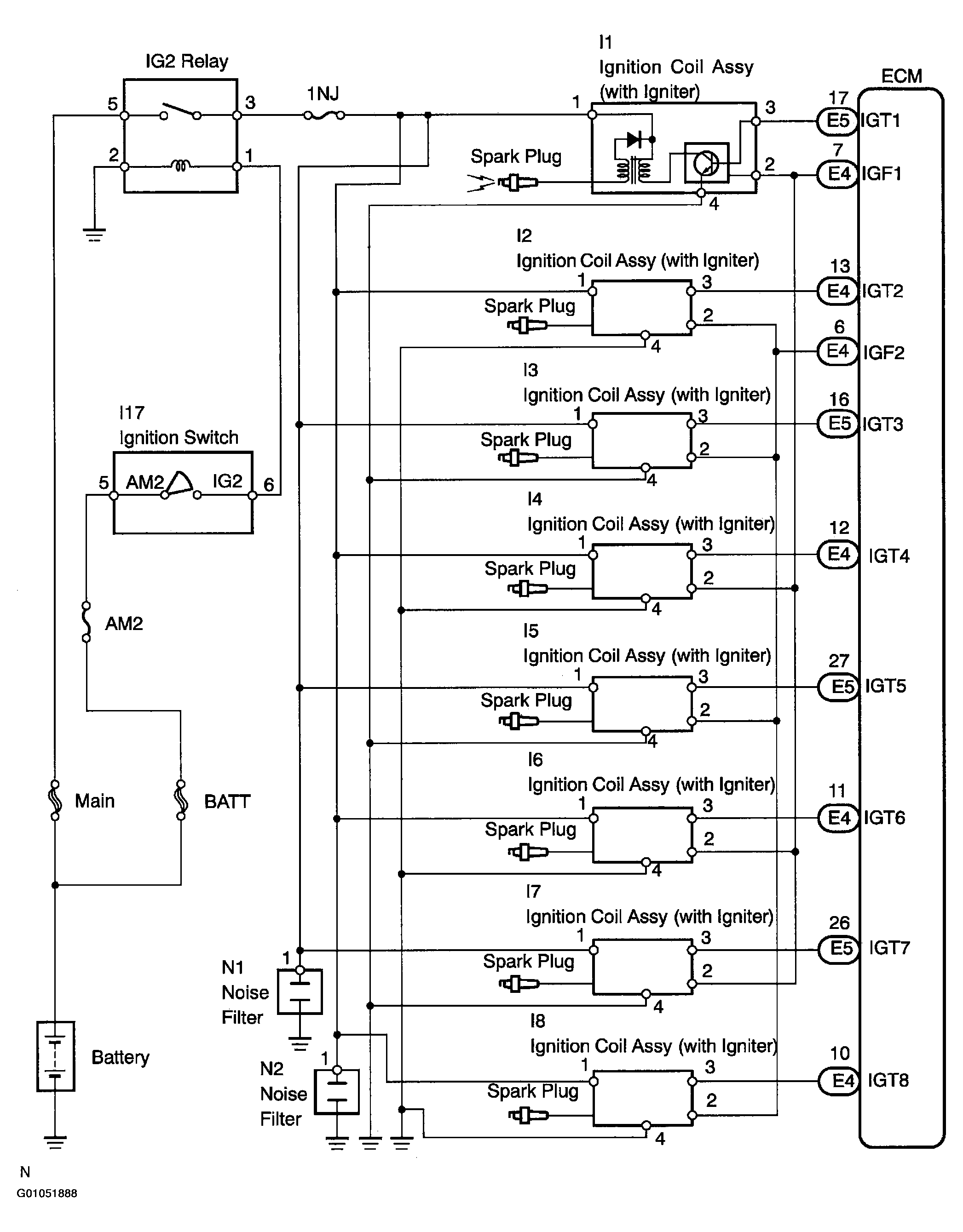

Fig 2: Ignition System Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
