Ignition Coils: Removal

  1. REMOVE V-BANK COVER
  2. REMOVE INTAKE AIR CONNECTOR
  3. DISCONNECT ENGINE WIRE FROM LH CYLINDER HEAD COVER

    Disconnect the 2 wire clamps and engine wire.

  4. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
  5. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

    Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

    1. Torque: 7.5 N.m (80 kgf.cm, 66 in.lbf)

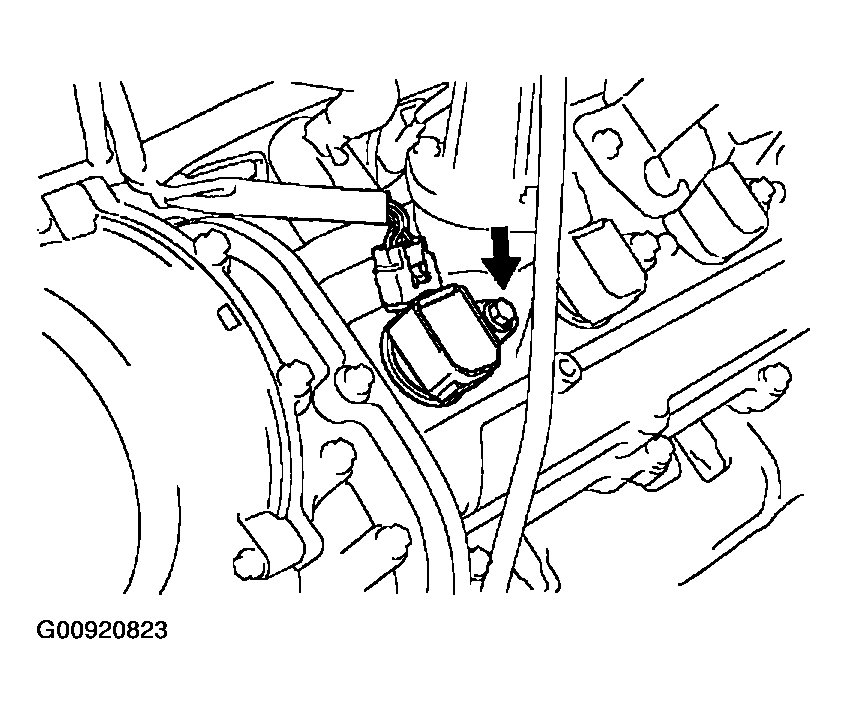

    Fig 1: Disconnecting Ignition Coil (With Igniter) Connectors
    G00920823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
