Vehicle Lift And Support Locations

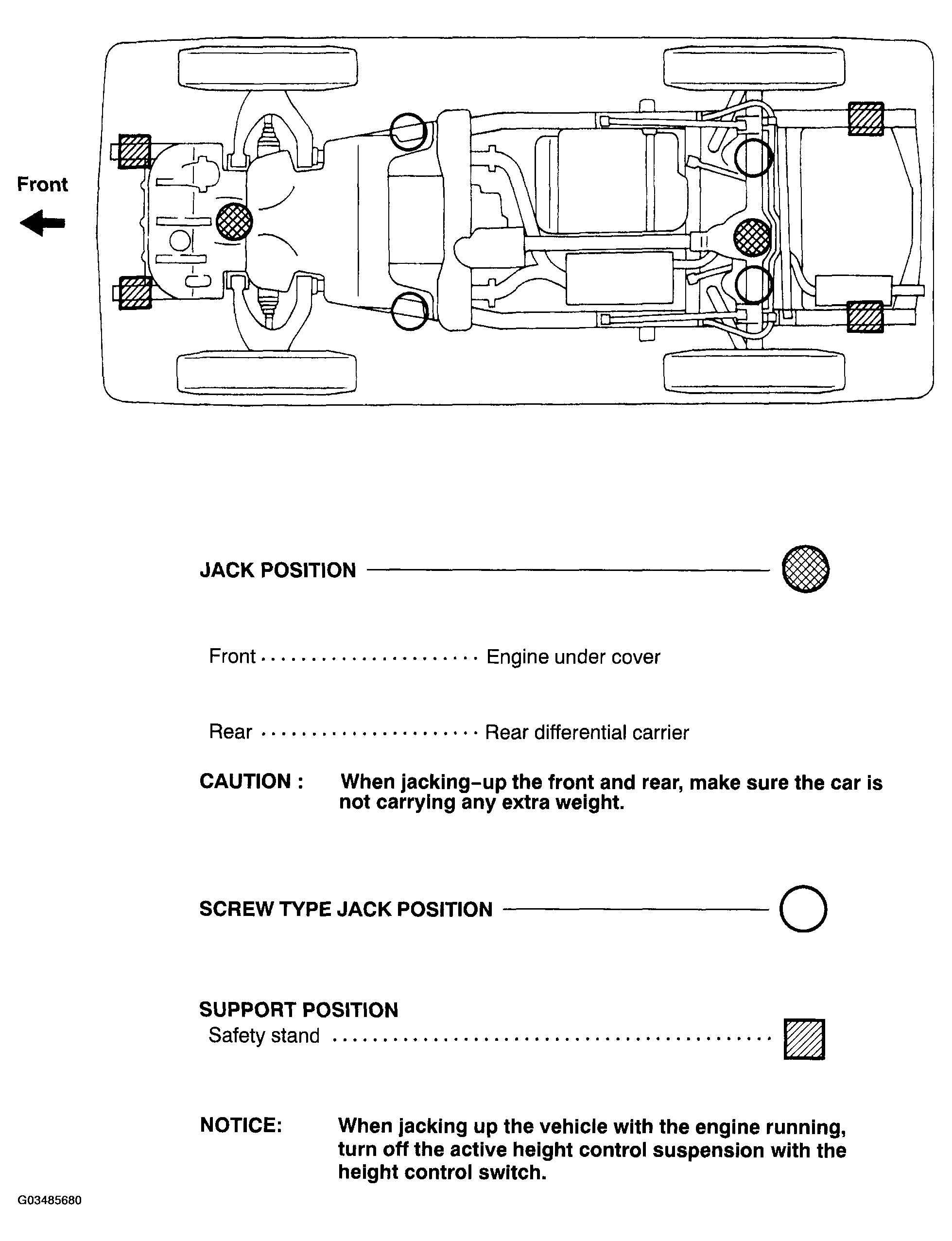

Fig 1: Identifying Vehicle Lift And Support Locations
G03485680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

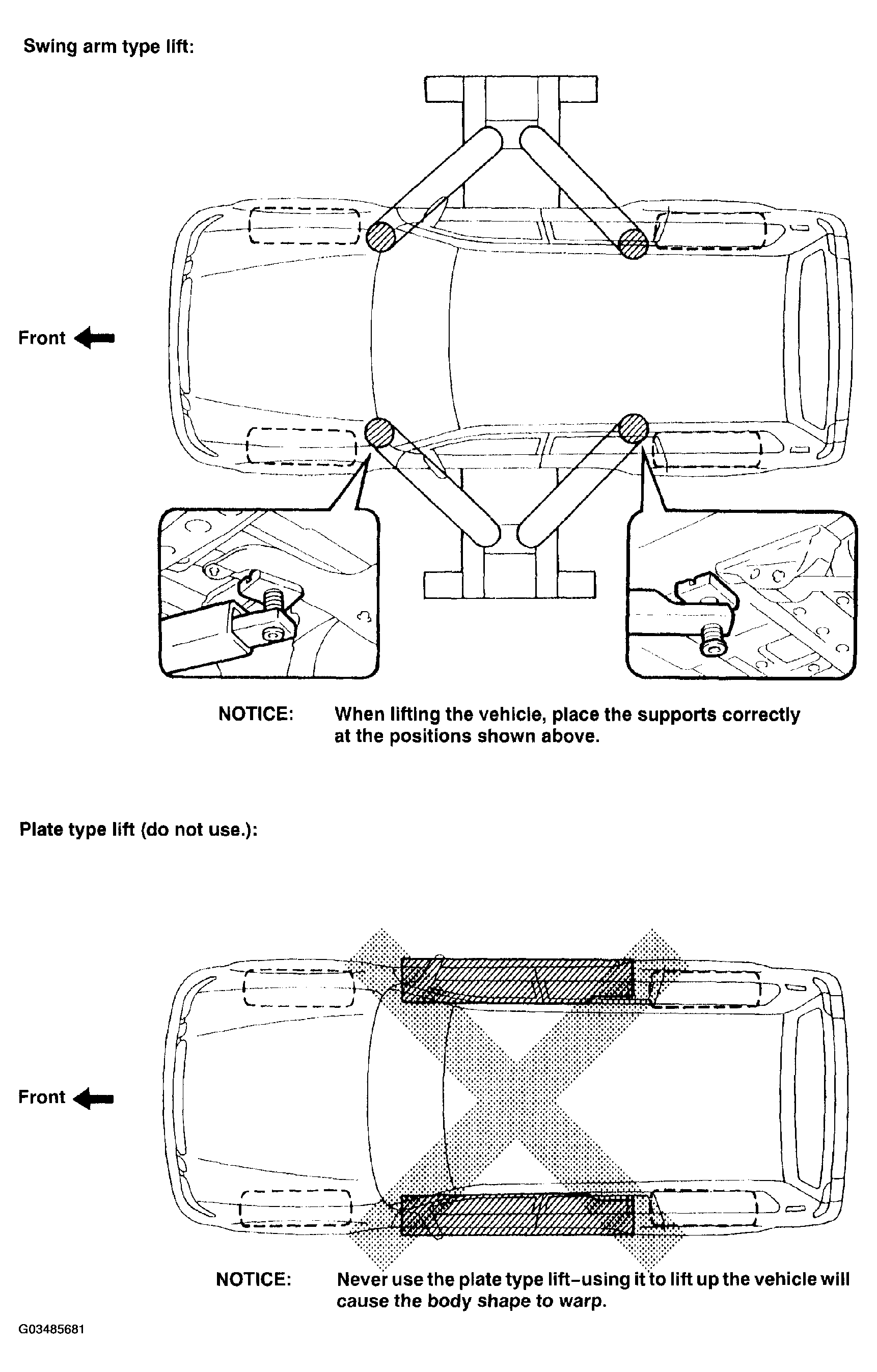

Fig 2: Identifying Vehicle Lift And Support Locations (Swing Arm Type Lift)
G03485681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
