Vehicle Lift And Support Locations

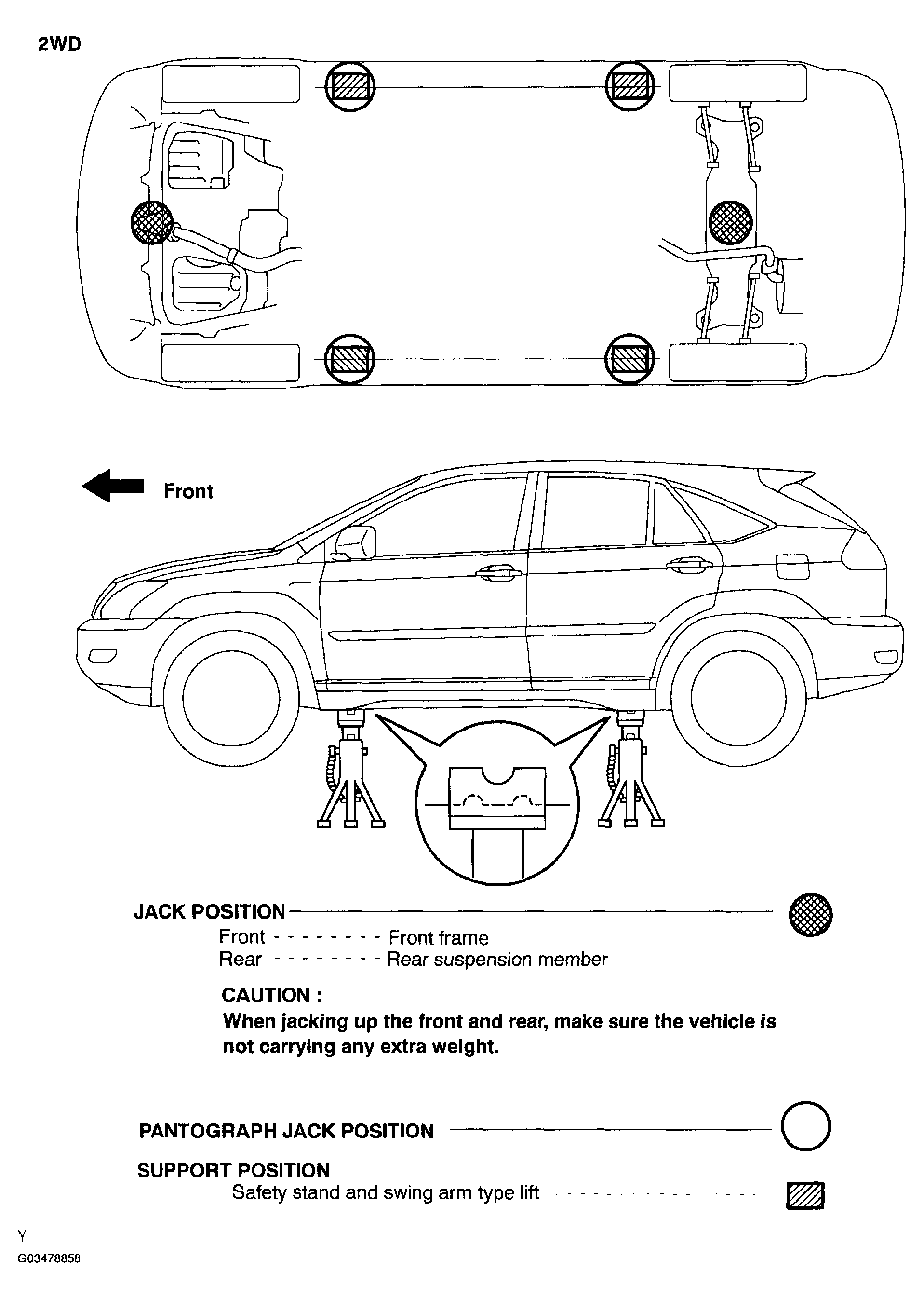

Fig 1: Locating Vehicle Lift And Support Point (2WD)
G03478858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

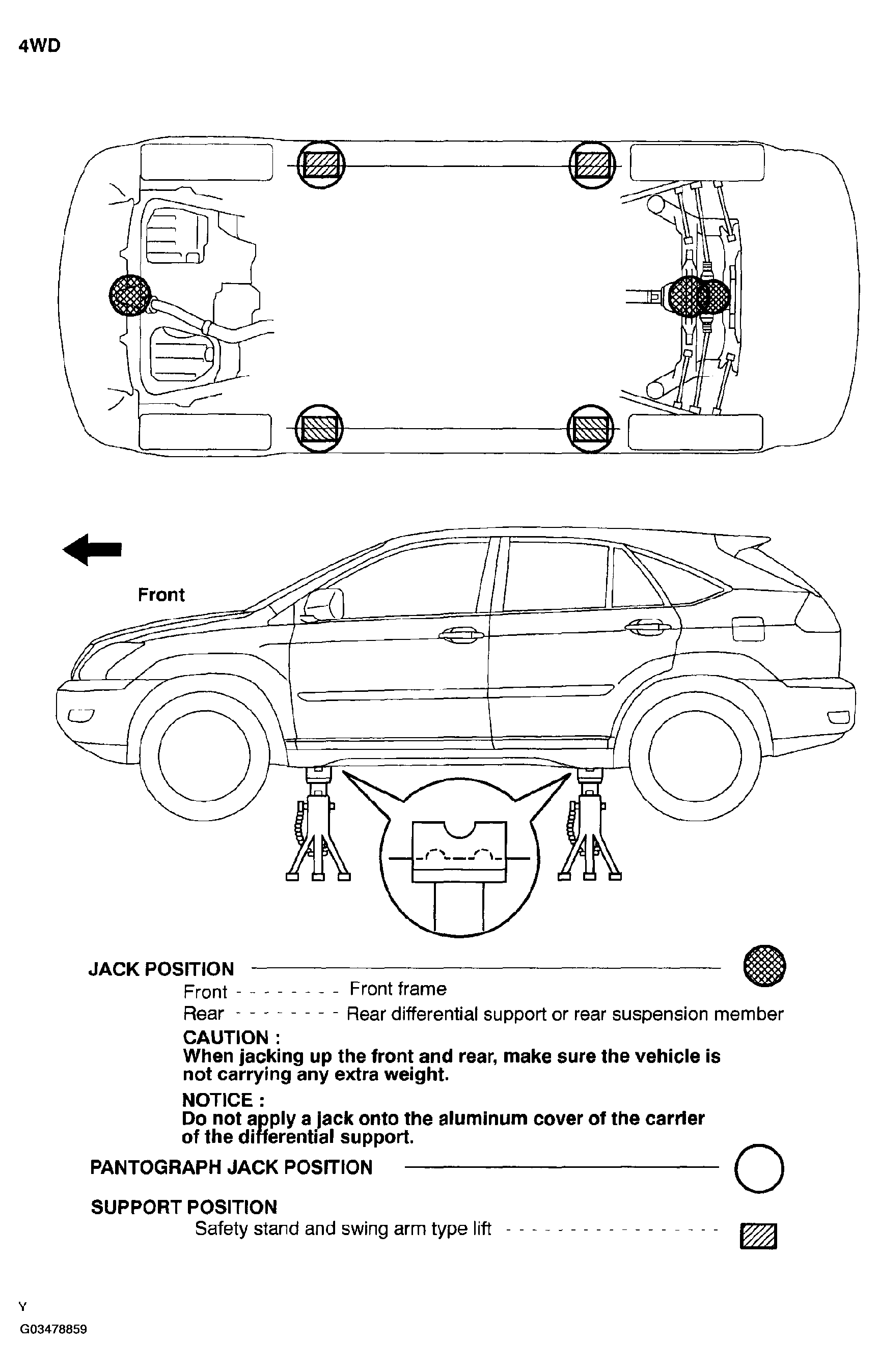

Fig 2: Locating Vehicle Lift And Support Point (4WD)
G03478859Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

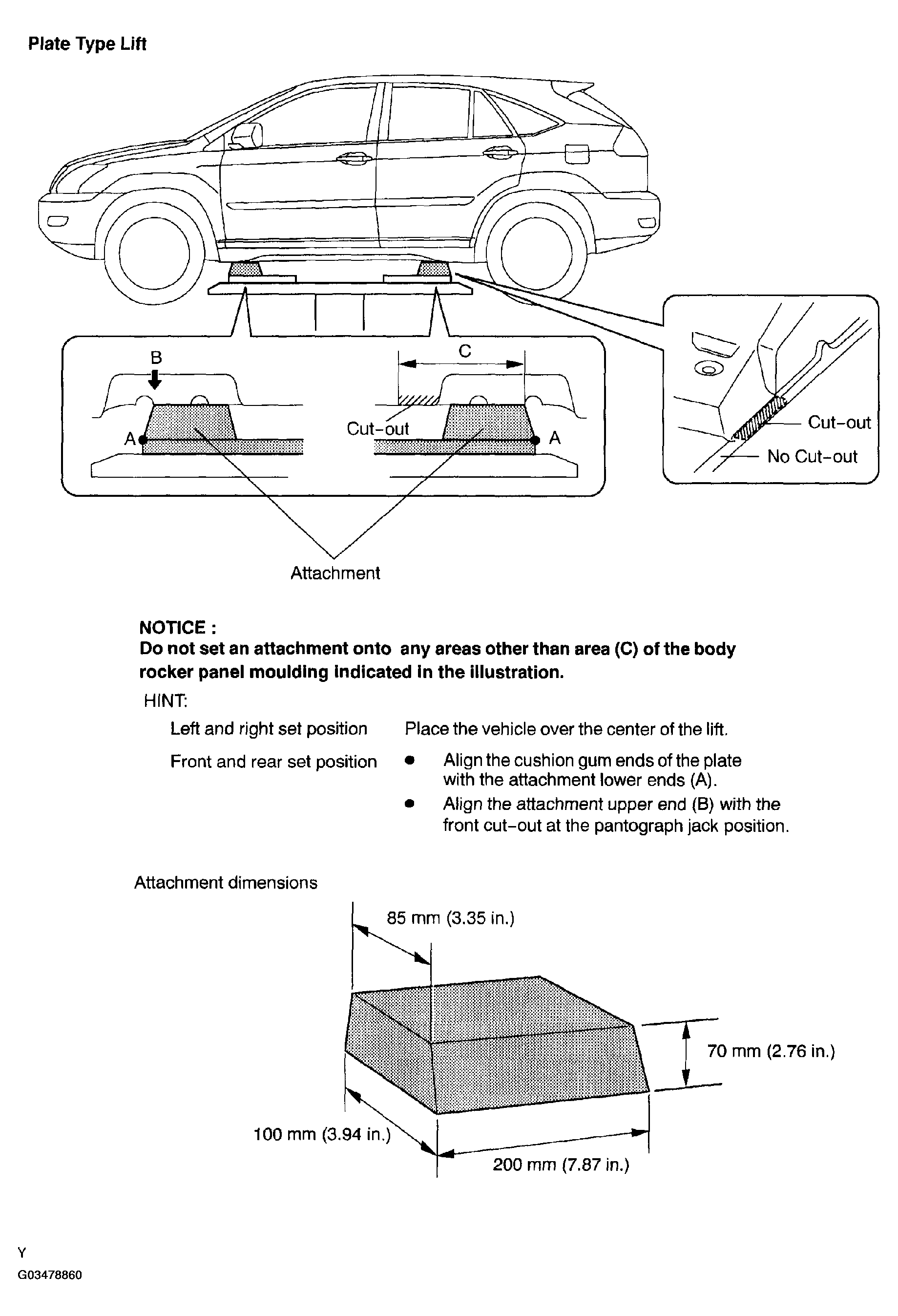

Fig 3: Locating Vehicle Lift And Support Point (Plate Type Lift)
G03478860Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
