GPS Antenna: Components

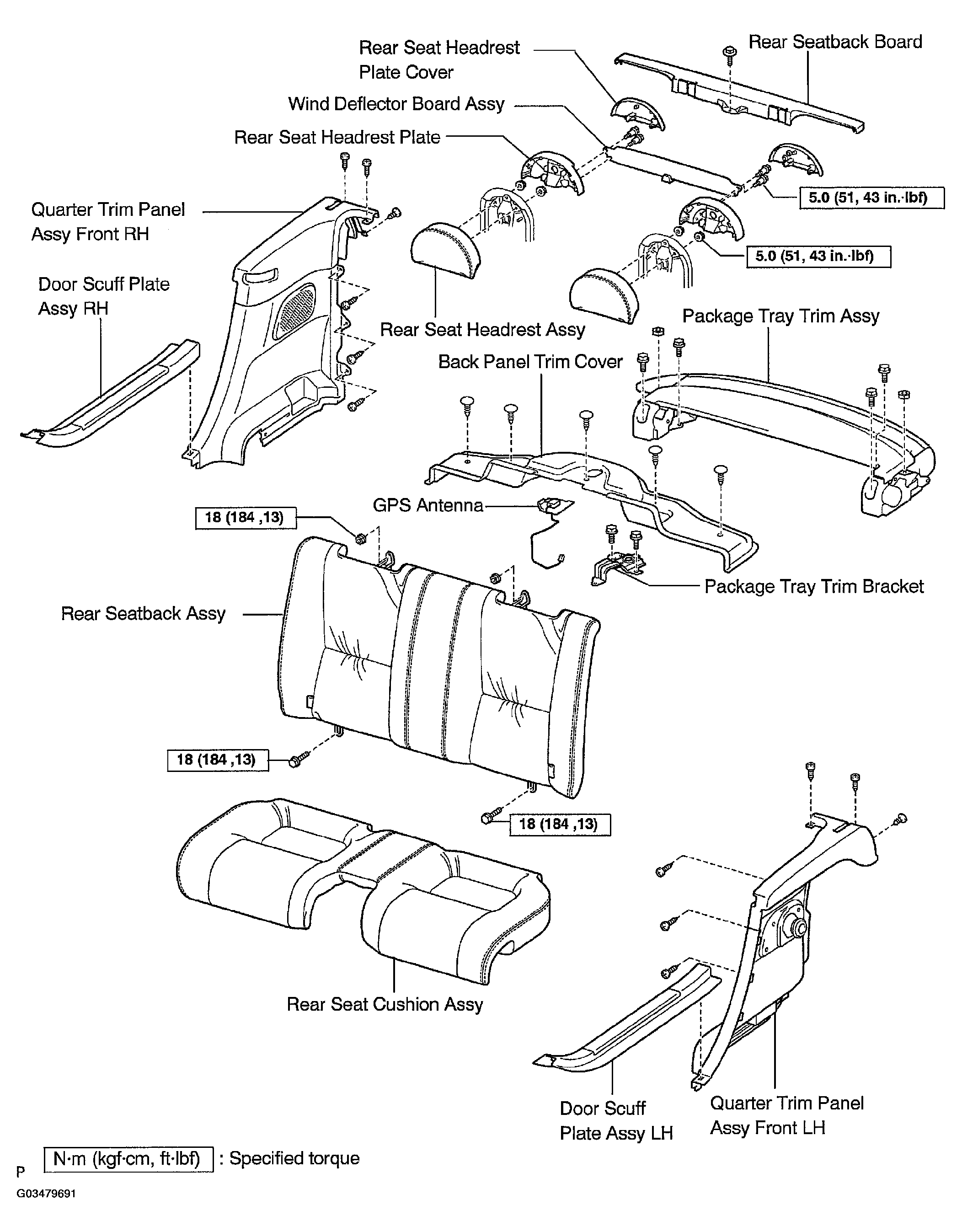

Fig 1: Identifying GPS Antenna Components (1 Of 2)
G03479691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

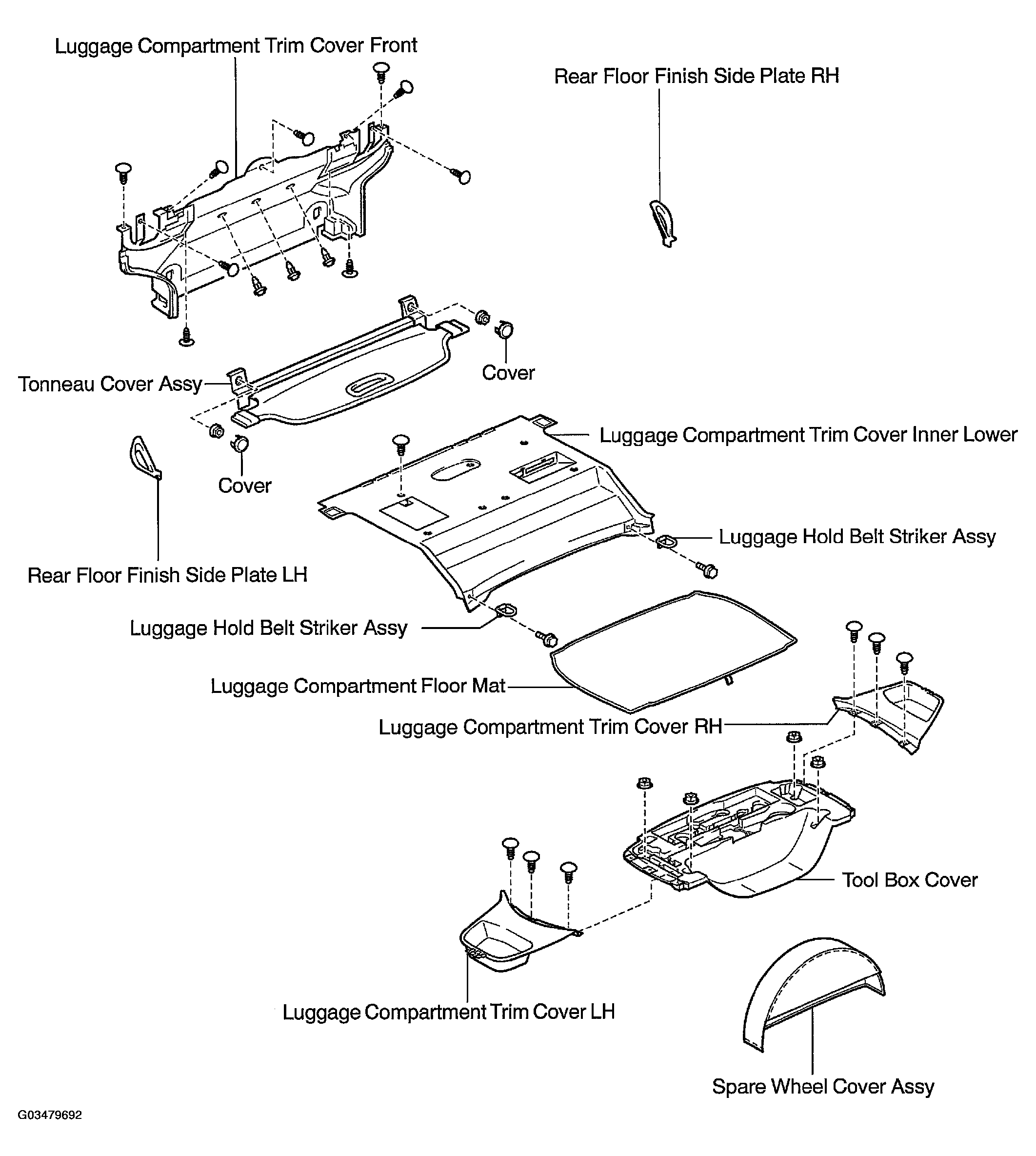

Fig 2: Identifying GPS Antenna Components (2 Of 2)
G03479692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
