Crankshaft Position Sensor (3MZ-FE): Replacement

  1. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
  2. REMOVE ENGINE UNDER COVER NO.1
    1. Remove the 3 clips and 5 screws, then remove the engine under cover No. 1.

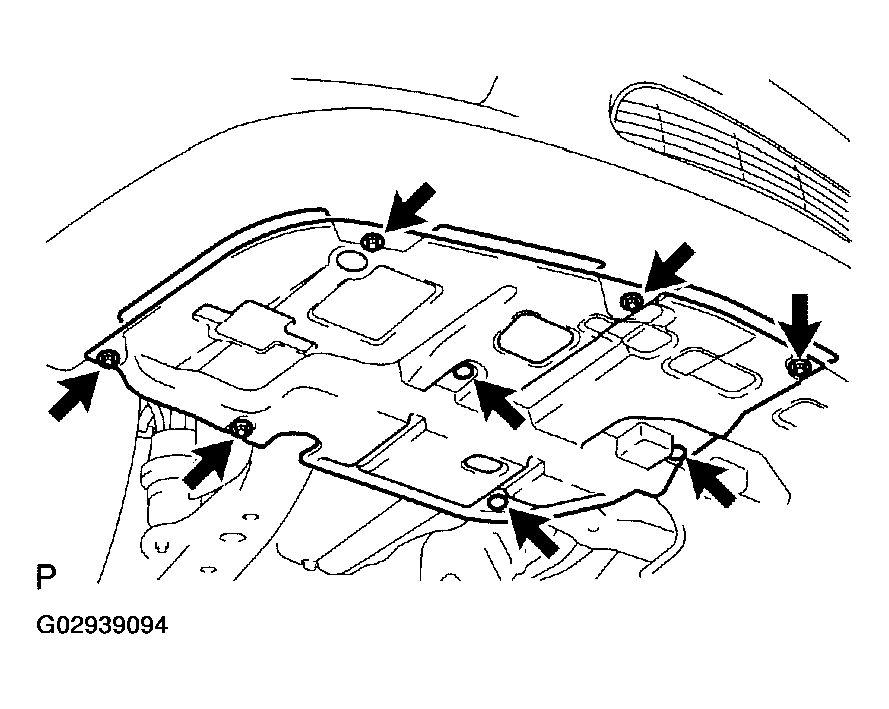

      Fig 1: Removing Engine Under Cover
      G02939094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT FENDER APRON SEAL RH
    1. Remove the clip and 2 bolts, then remove the front fender apron seal.

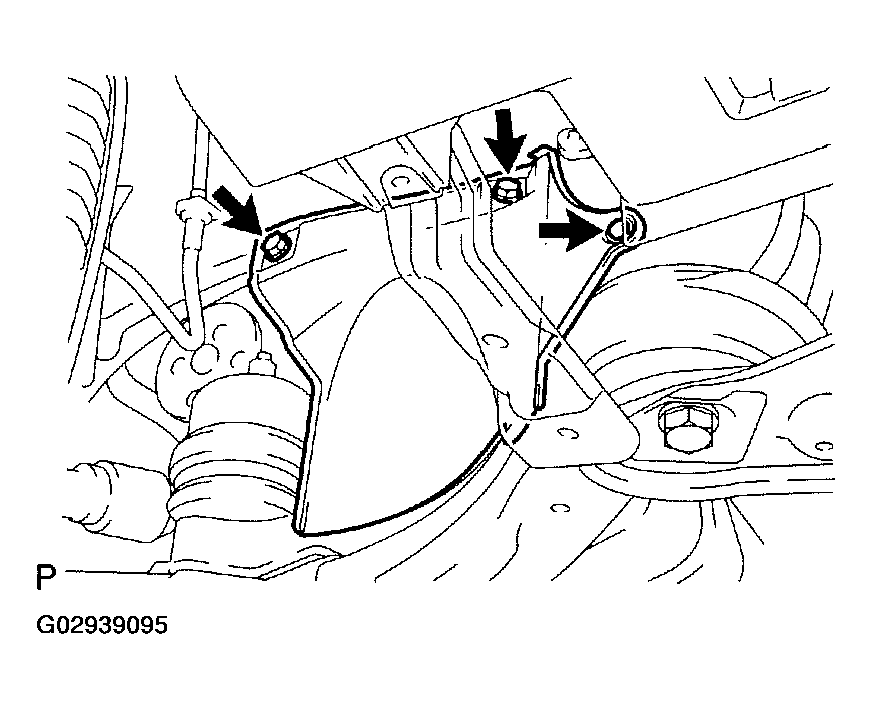

      Fig 2: Locating Front Fender Apron Seal
      G02939095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CRANKSHAFT POSITION SENSOR
    1. Remove the crankshaft position sensor connector.
    2. Remove the bolt, then remove the crankshaft position sensor.

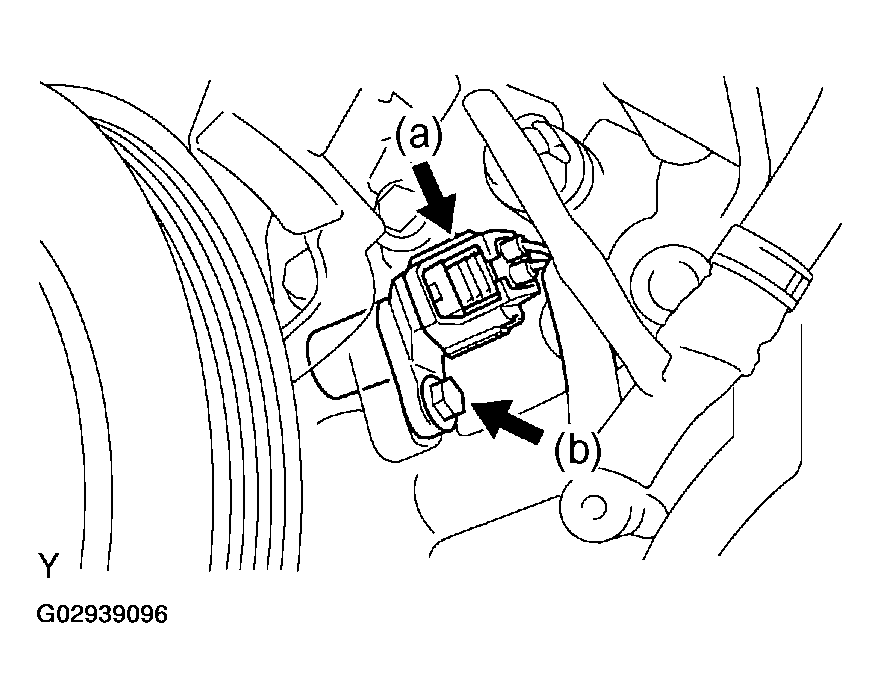

      Fig 3: Locating Crankshaft Position Sensor
      G02939096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CRANKSHAFT POSITION SENSOR
    1. Torque: 8.0 N.m (80 kgf.cm, 71 in..lbf)
  6. INSTALL FRONT FENDER APRON SEAL RH
  7. INSTALL ENGINE UNDER COVER NO.1
  8. CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL)
    1. Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)
  9. SYSTEM INITIALIZATION (See  CHARGING SYSTEM (3MZ-FE)  )
