Home >> Lexus >> 2005 >> GS 300 >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Power Window Control System >> Power Window Control System >> Troubleshooting >> Notes

Power Window Control System: Troubleshooting: Notes

  1. WINDOW DOES NOT OPERATE WITH POWER WINDOW MASTER SWITCH (MANUAL OR AUTOMATIC OPERATION CAN NOT BE PERFORMED).

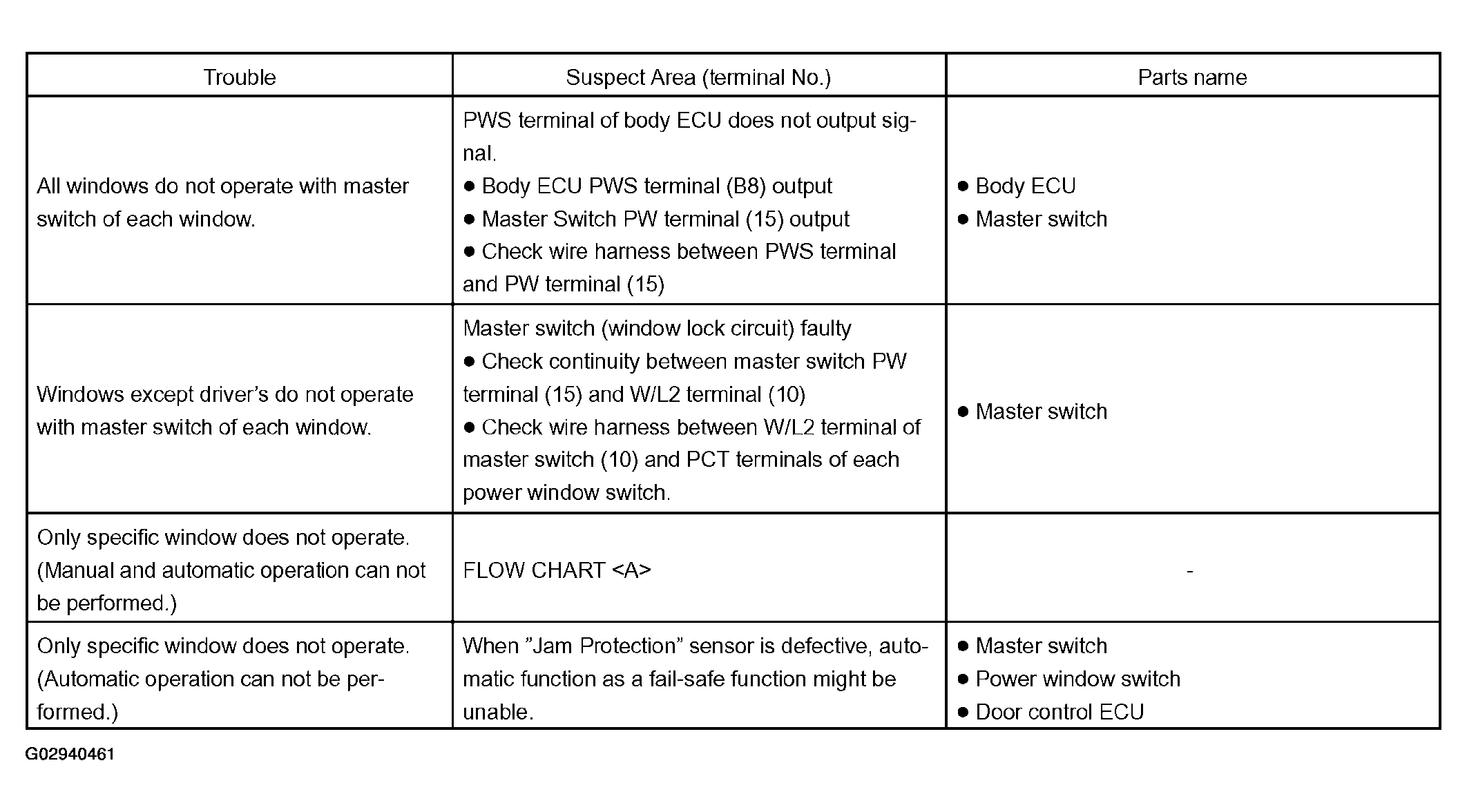

    Fig 1: Power Window Control System Trouble Shooting Table
    G02940461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
