SST (Special Service Tools)

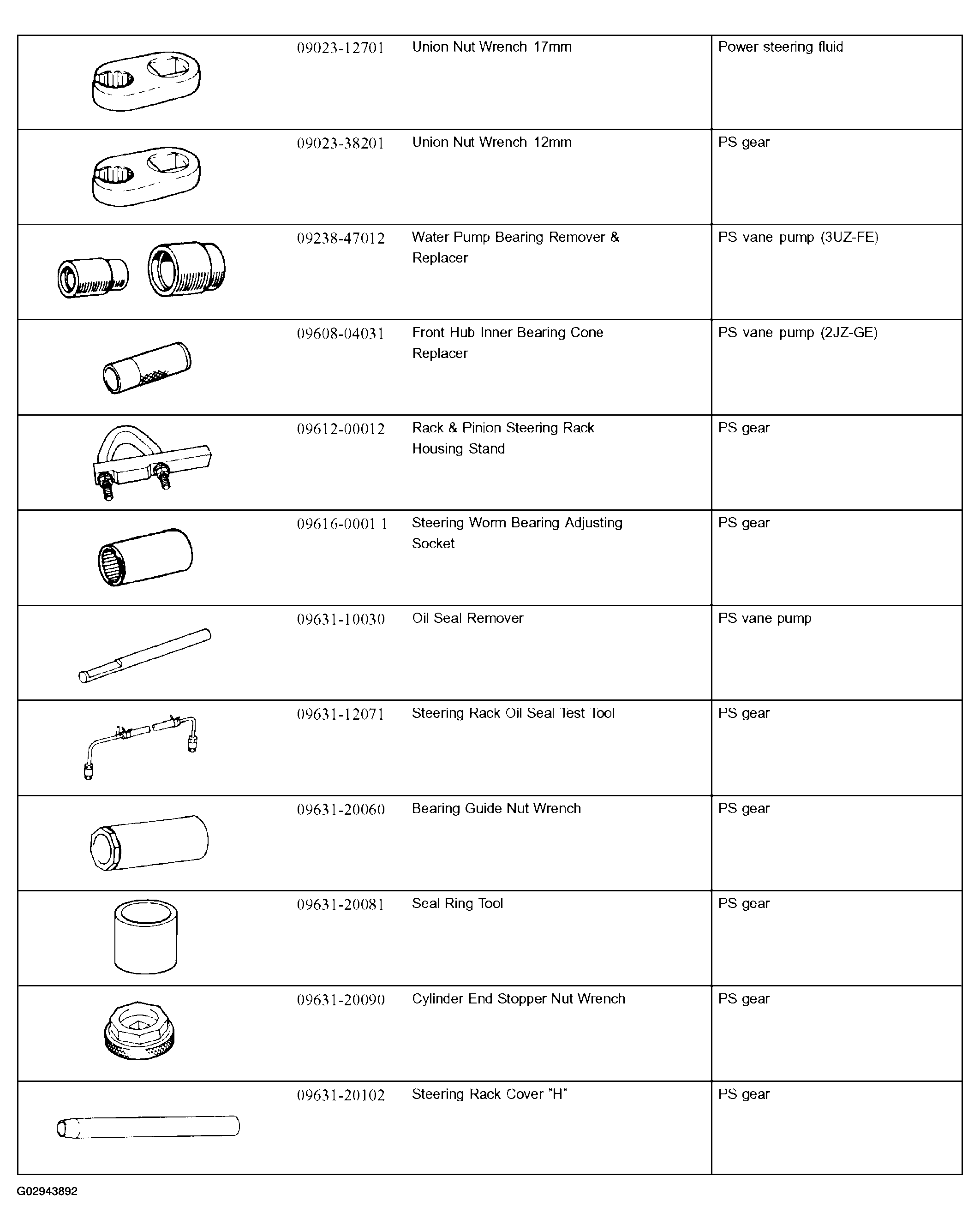

Fig 1: Identifying Special Service Tools (Steering) (1 Of 3)
G02943892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

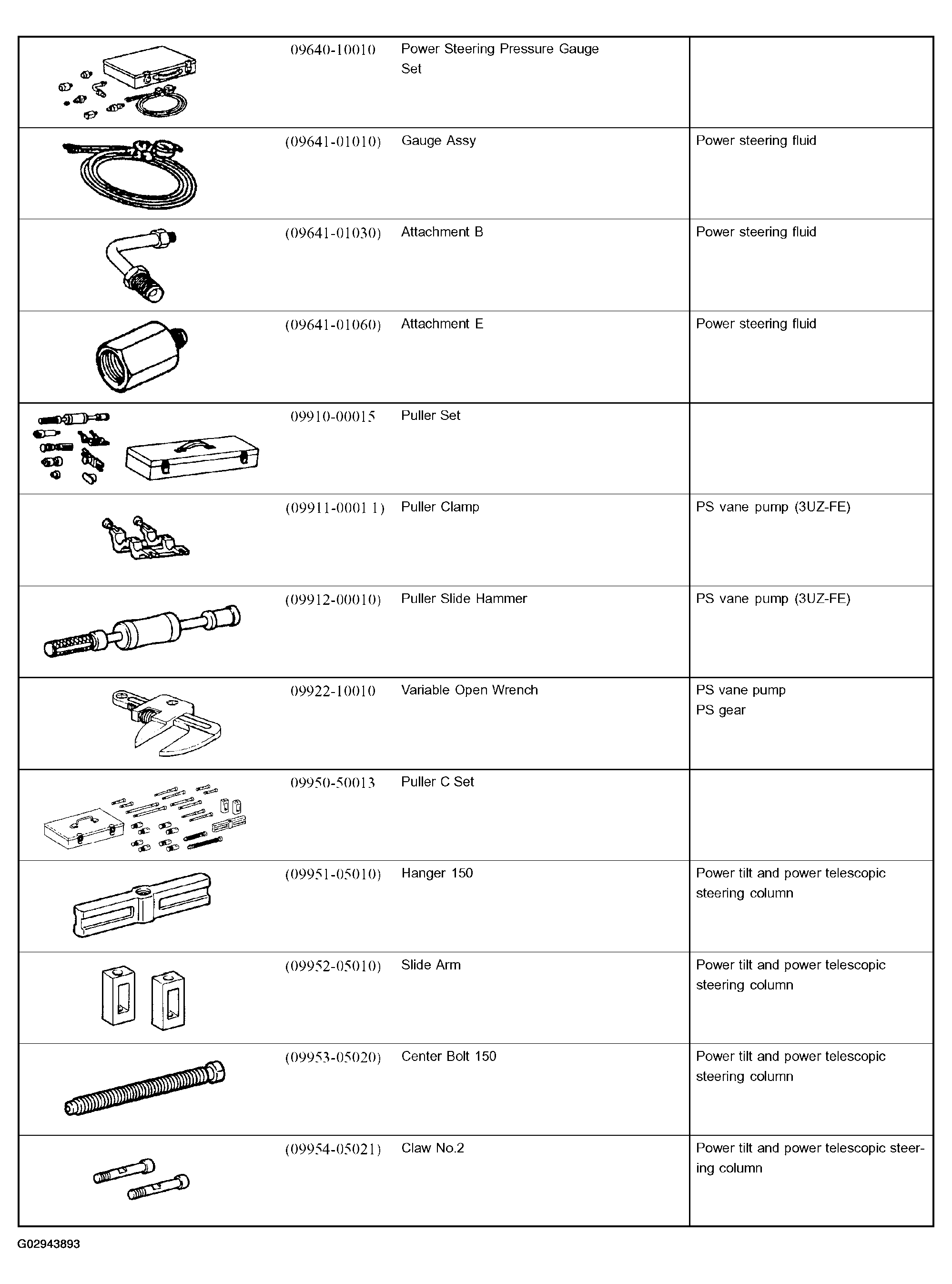

Fig 2: Identifying Special Service Tools (Steering) (2 Of 3)
G02943893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

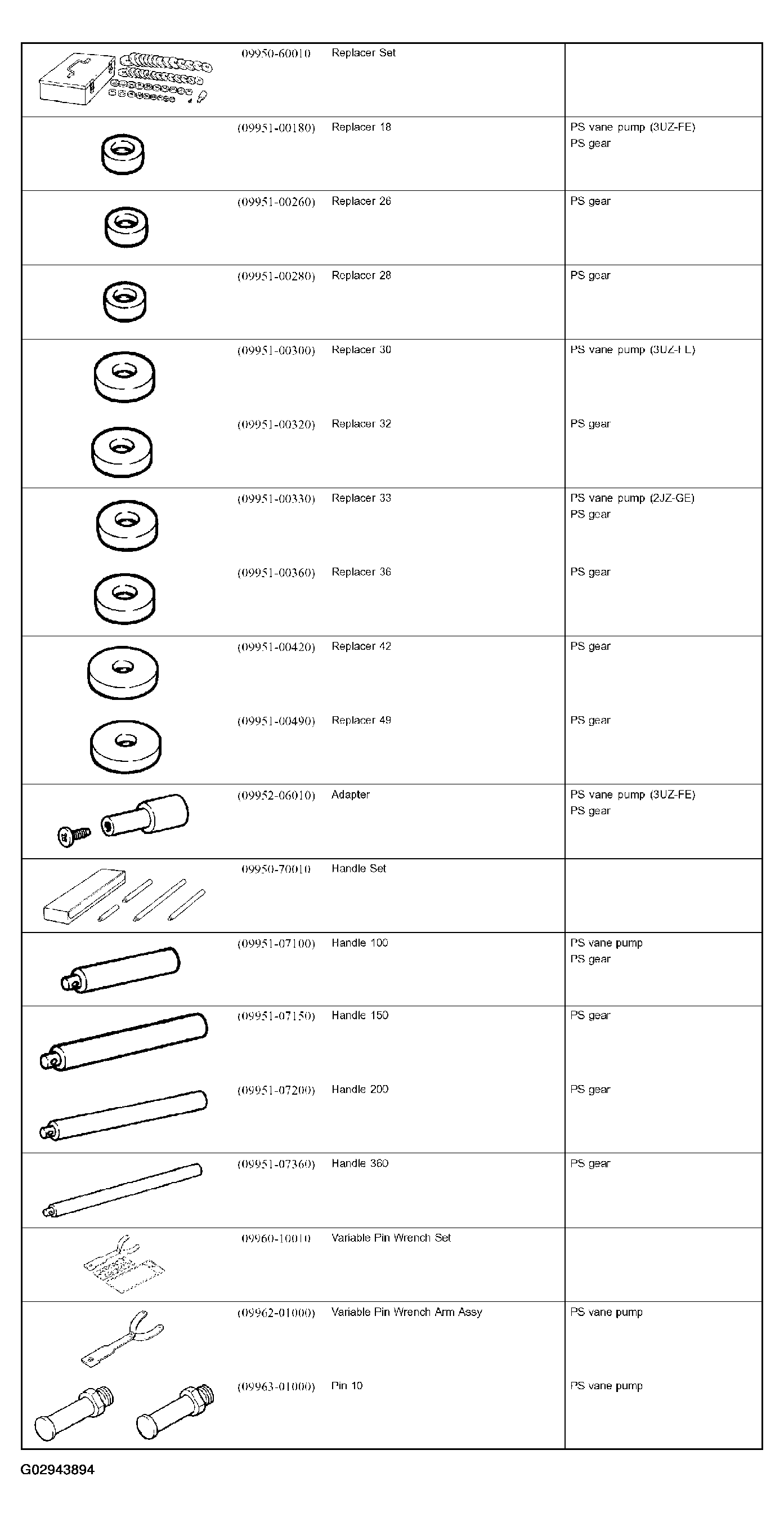

Fig 3: Identifying Special Service Tools (Steering) (3 Of 3)
G02943894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
