Suspension And Axle
>>
SST (Special Service Tools)
SST (Special Service Tools)

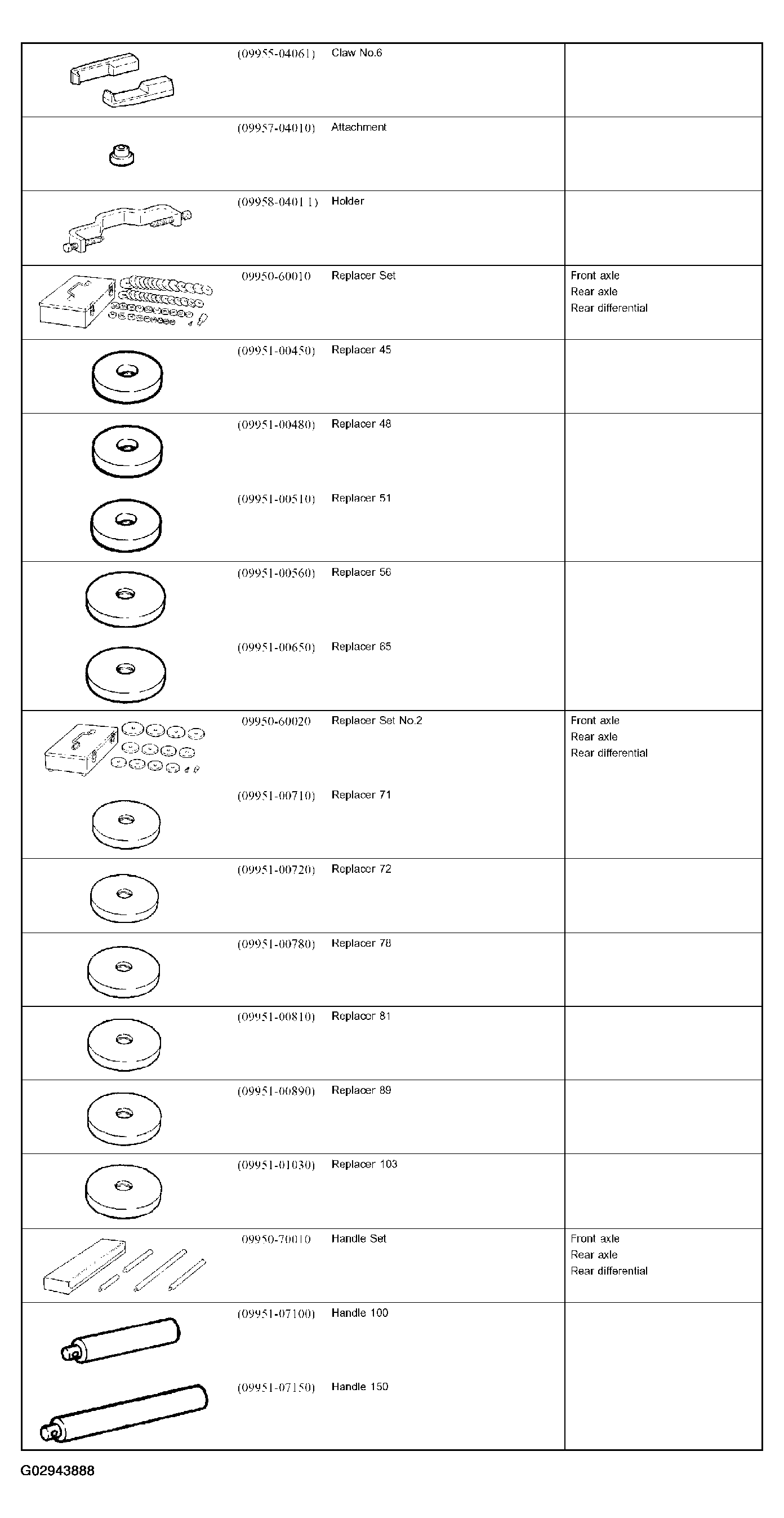

Fig 1: Identifying Special Service Tools (Suspension And Axle) (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

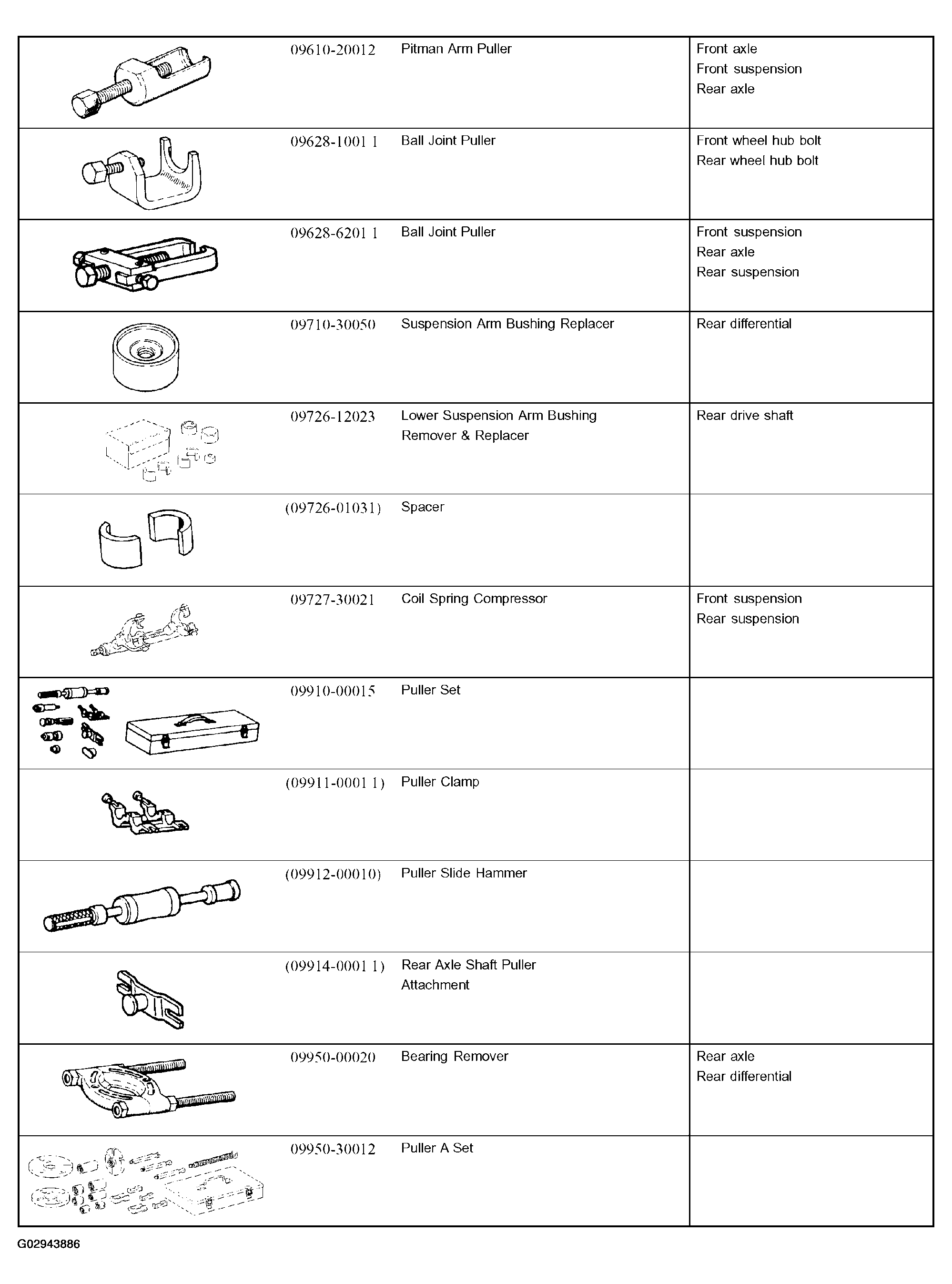

Fig 2: Identifying Special Service Tools (Suspension And Axle) (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

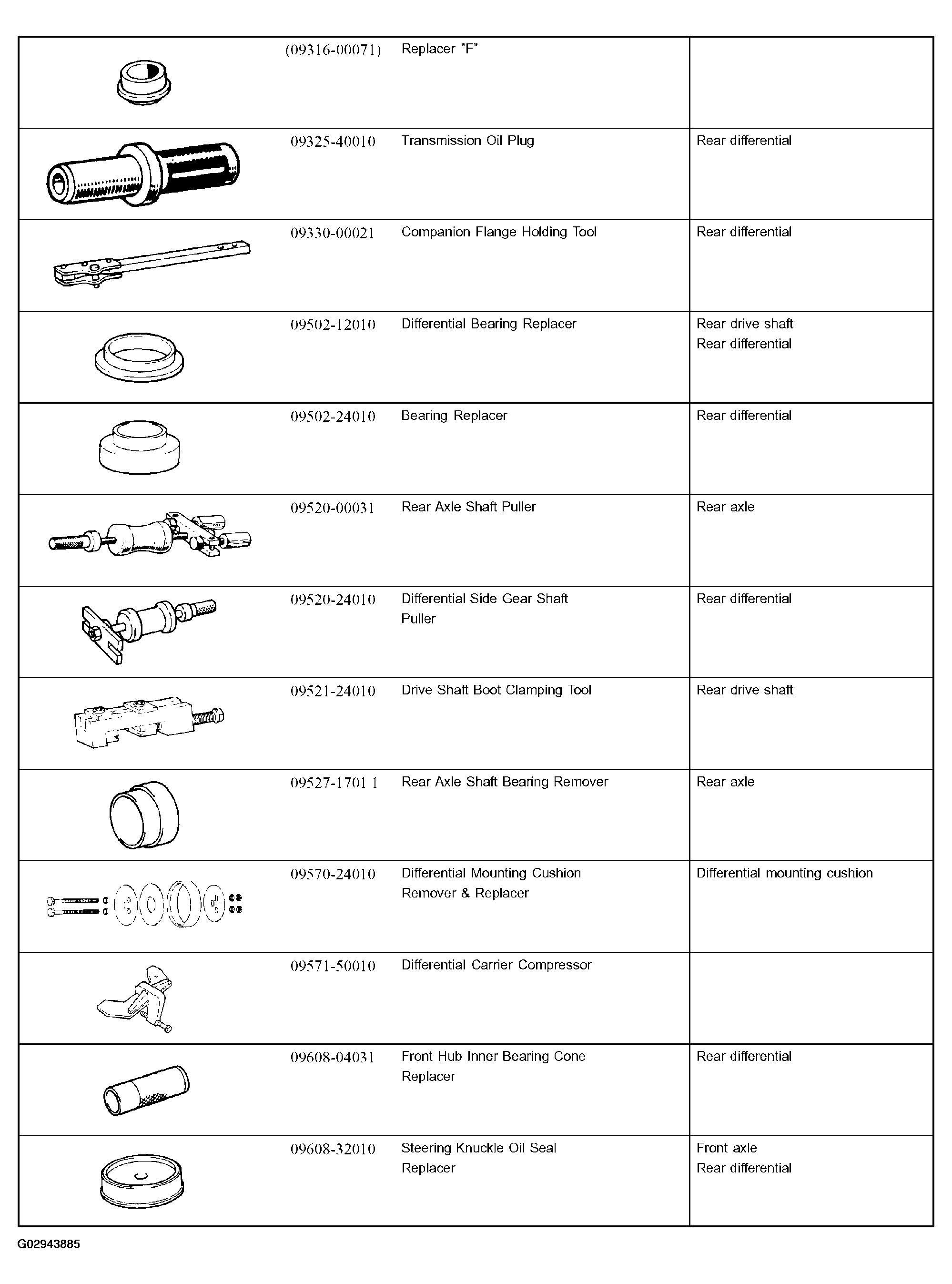

Fig 3: Identifying Special Service Tools (Suspension And Axle) (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

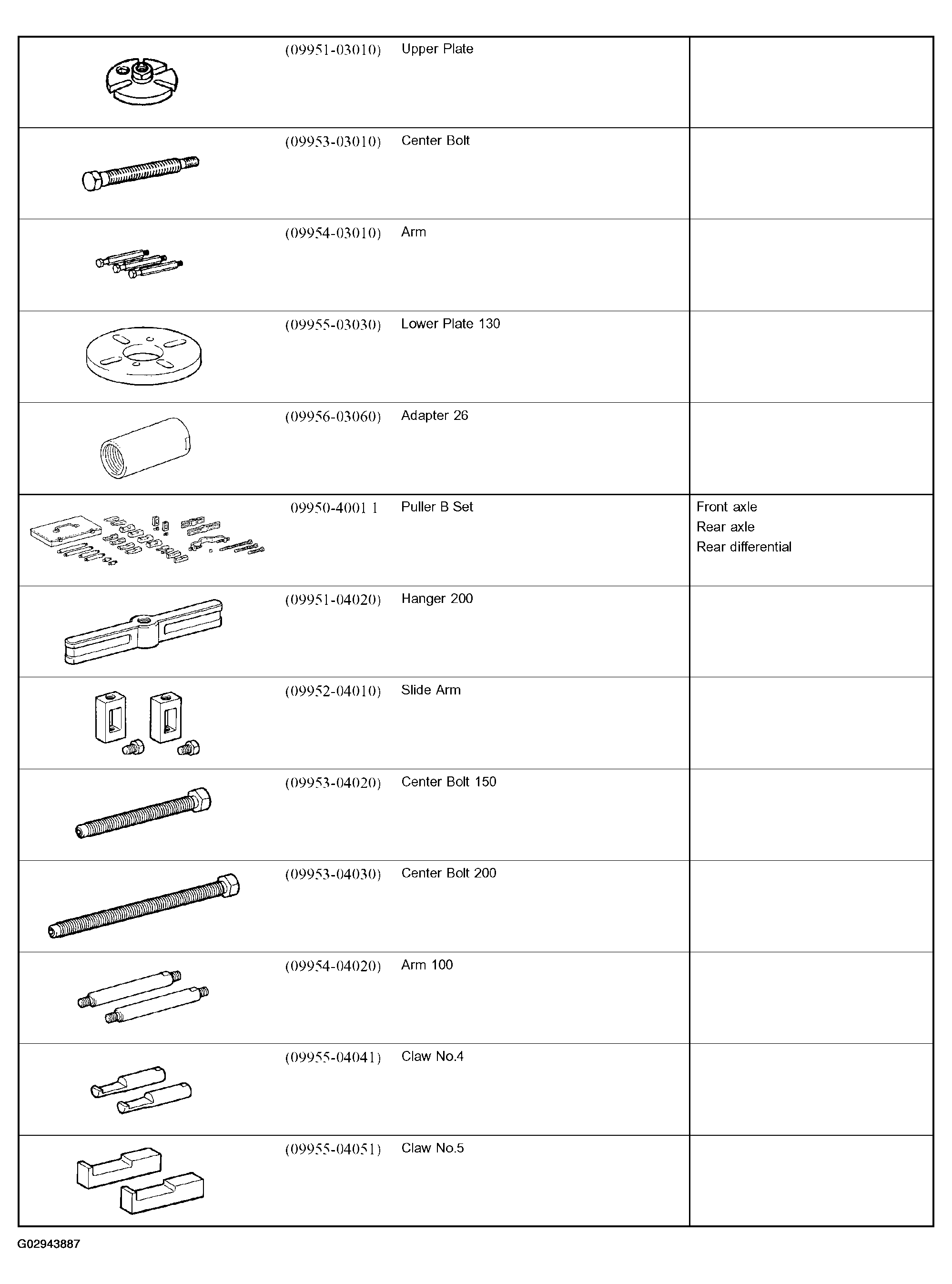

Fig 4: Identifying Special Service Tools (Suspension And Axle) (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

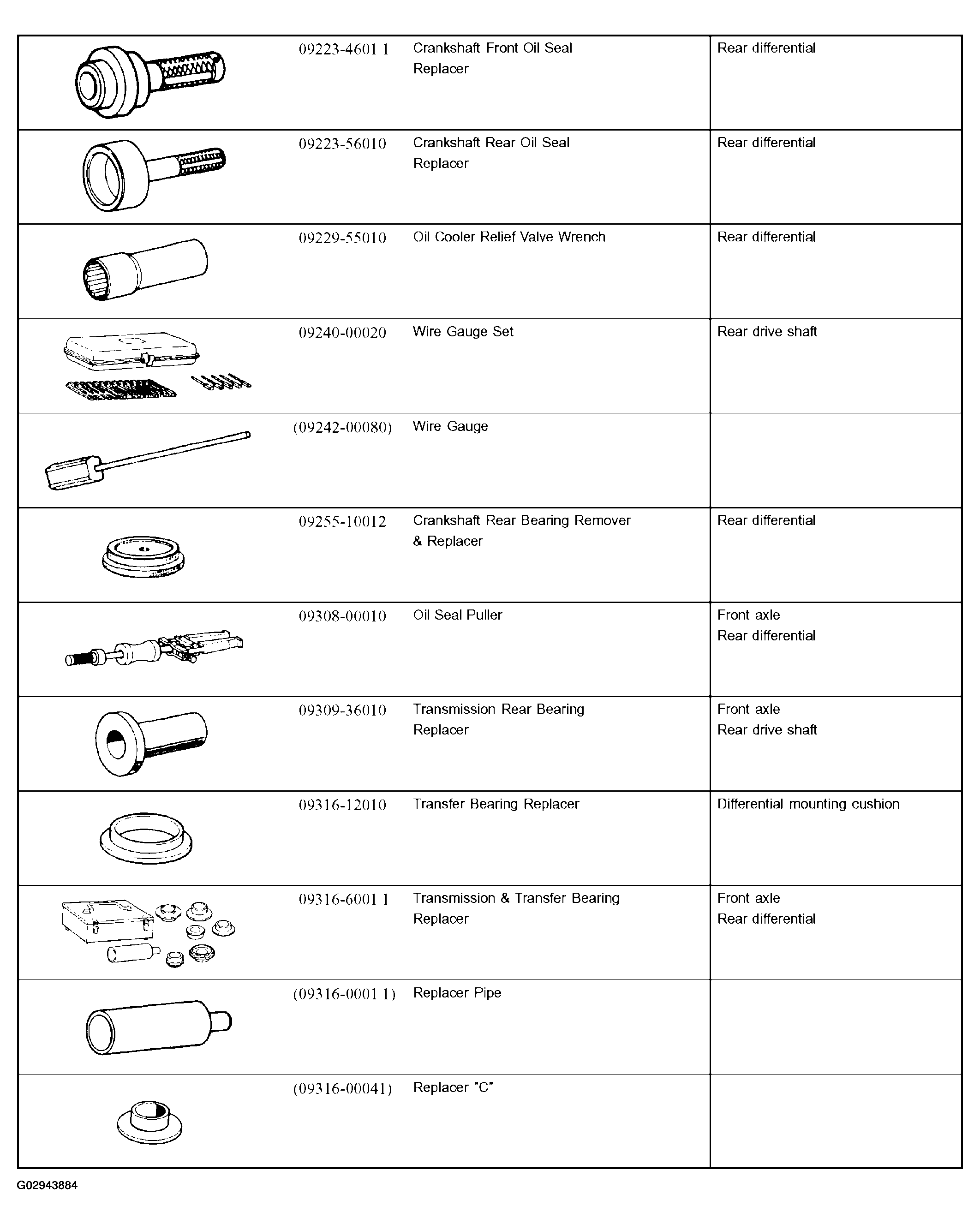

Fig 5: Identifying Special Service Tools (Suspension And Axle) (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
