SST (Special Service Tools)

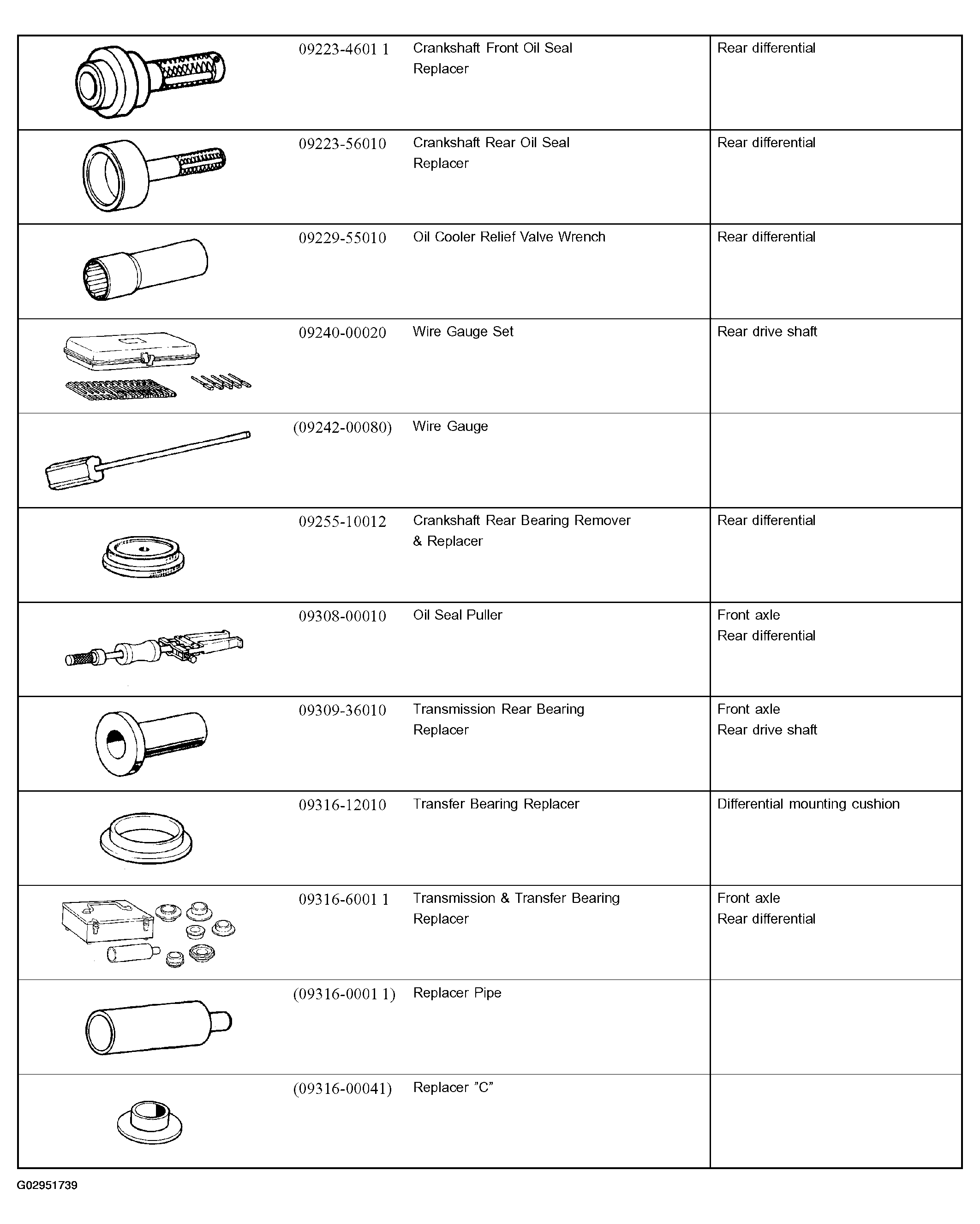

Fig 1: Identifying Special Service Tools - Suspension And Axle (1 of 6)
G02951739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

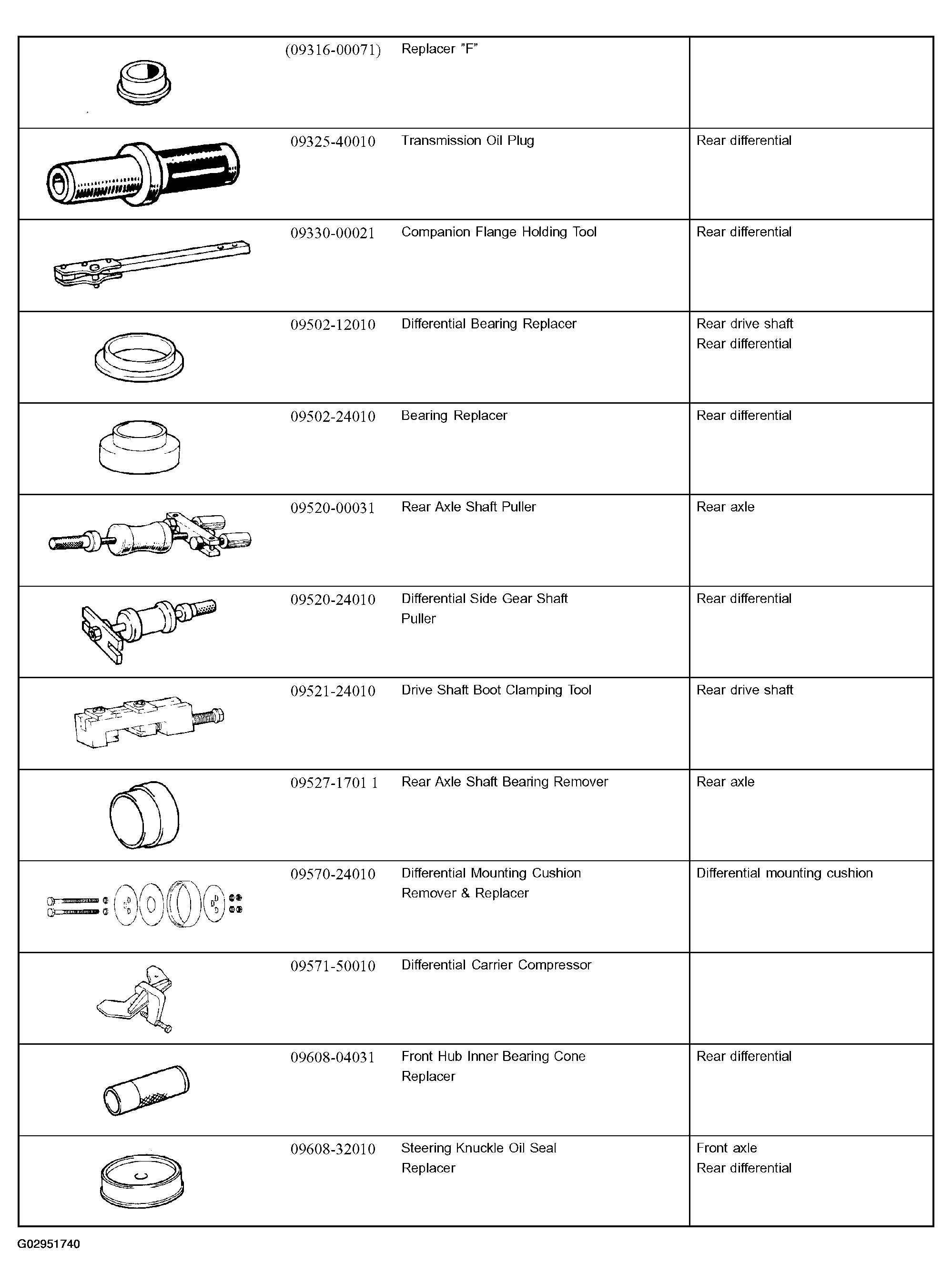

Fig 2: Identifying Special Service Tools - Suspension And Axle (2 of 6)
G02951740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

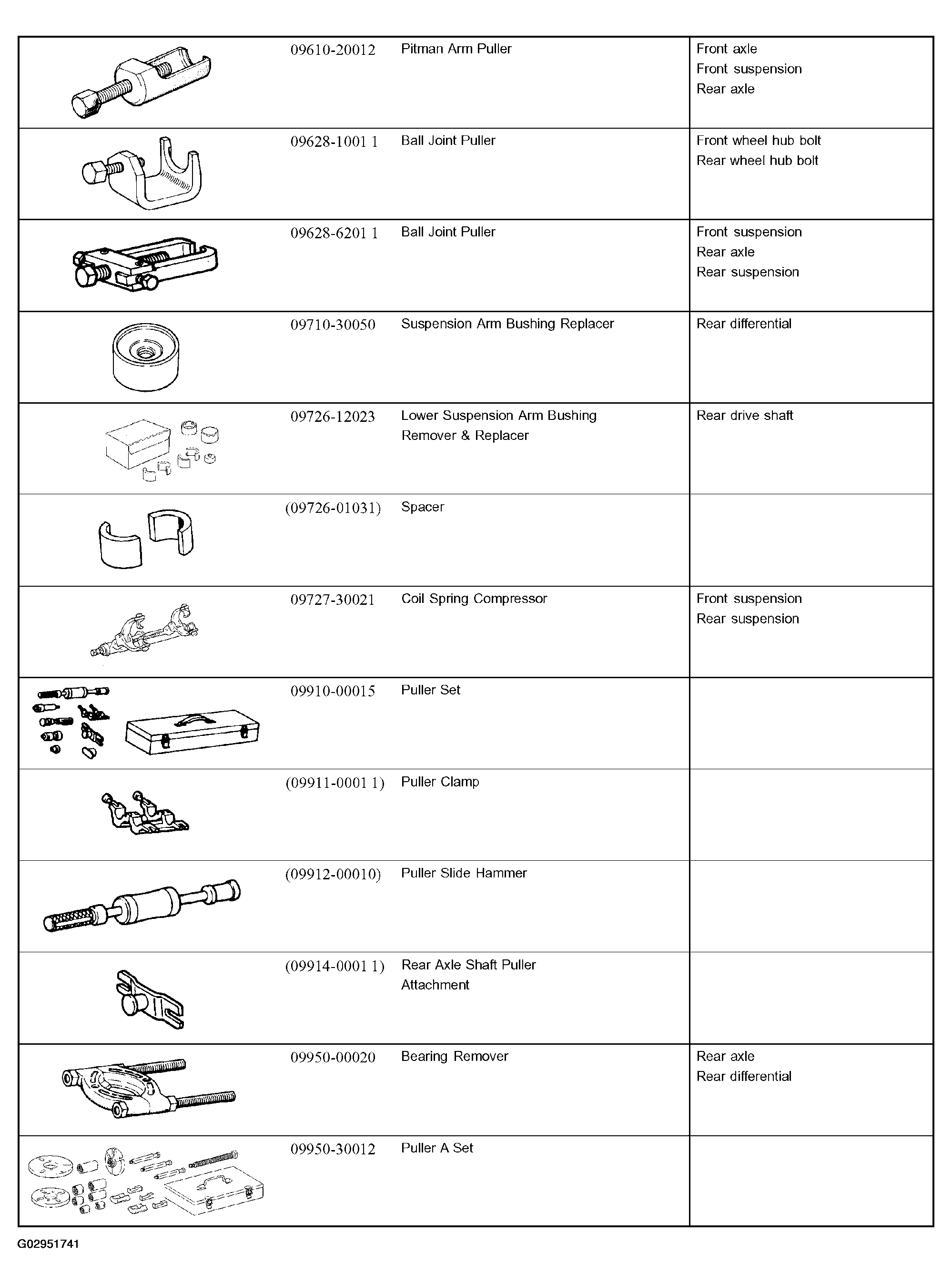

Fig 3: Identifying Special Service Tools - Suspension And Axle (3 of 6)
G02951741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

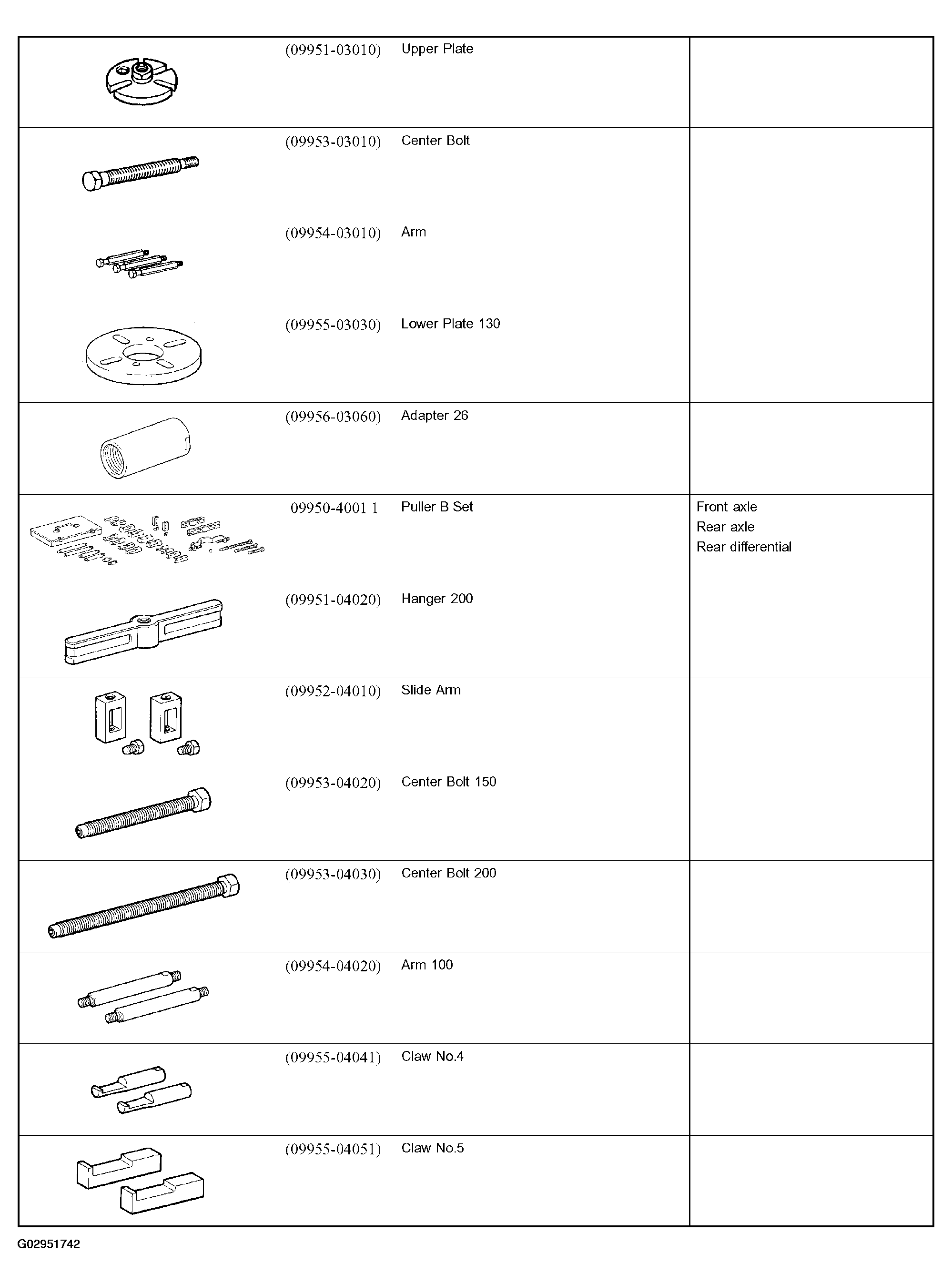

Fig 4: Identifying Special Service Tools - Suspension And Axle (4 of 6)
G02951742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

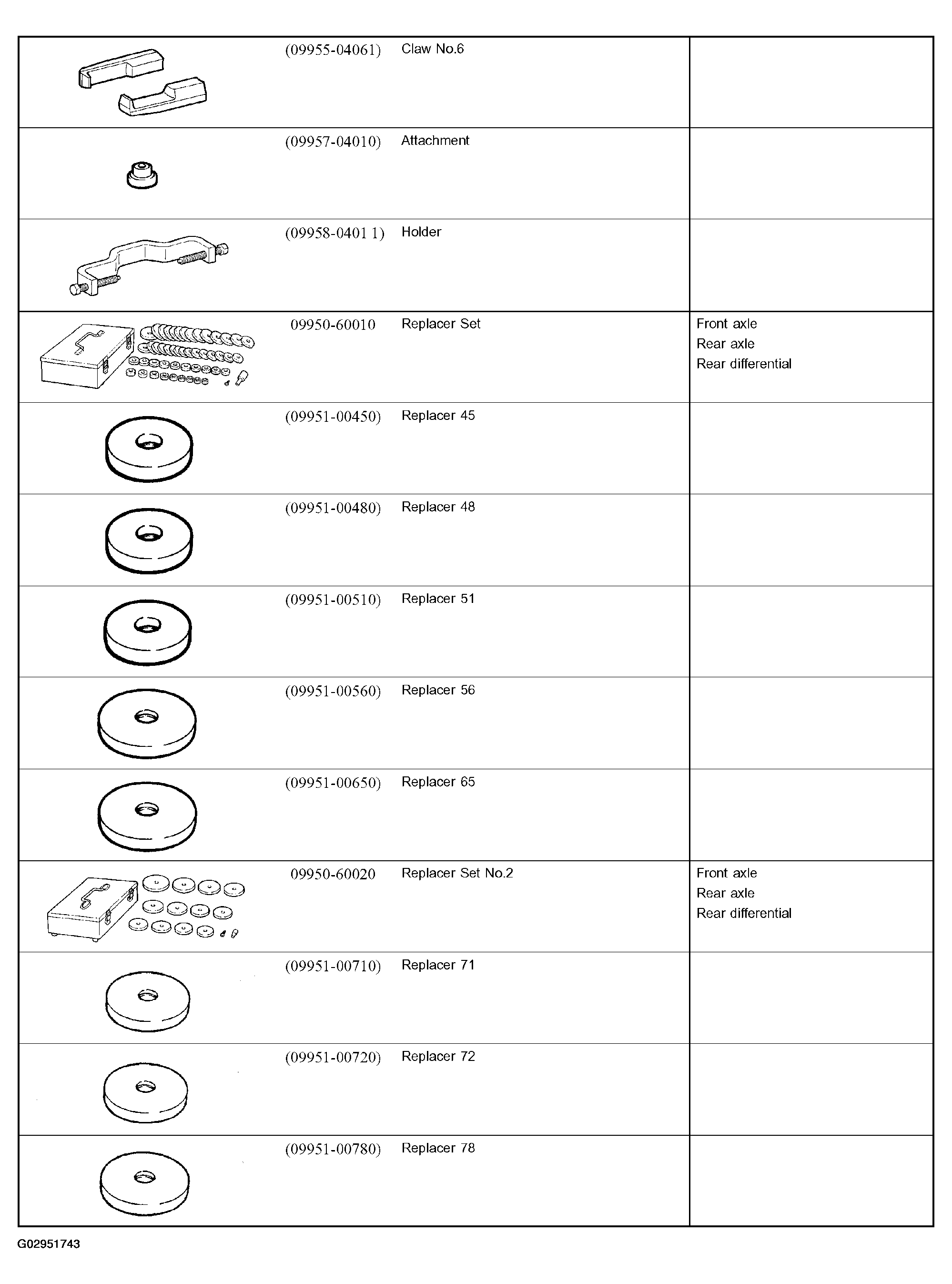

Fig 5: Identifying Special Service Tools - Suspension And Axle (5 of 6)
G02951743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

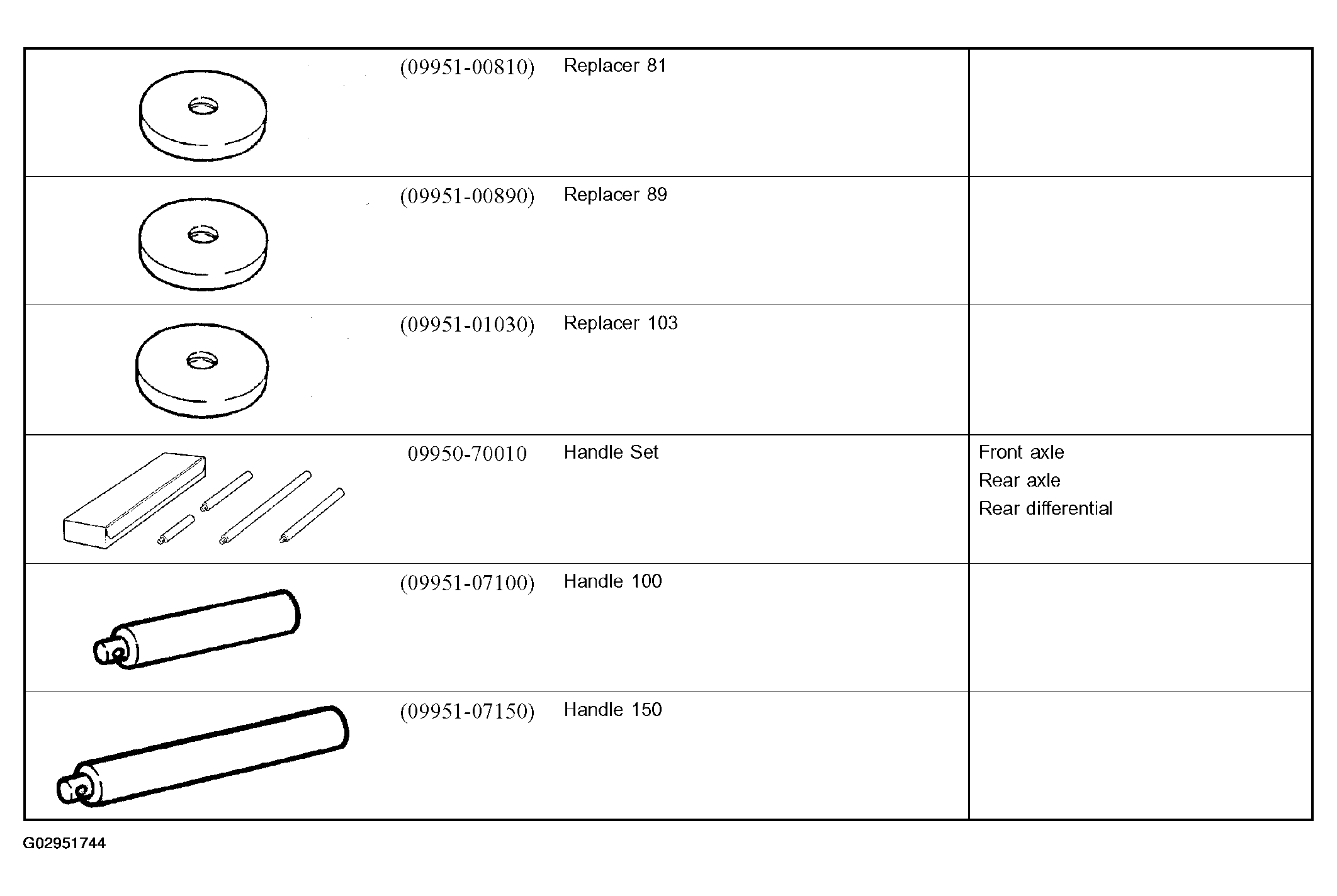

Fig 6: Identifying Special Service Tools - Suspension And Axle (5 of 6)
G02951744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
