How To Troubleshoot Ecu Controlled Systems
>>
Circuit Inspection
Circuit Inspection
How to read and use each reference is shown in
Fig 1
.

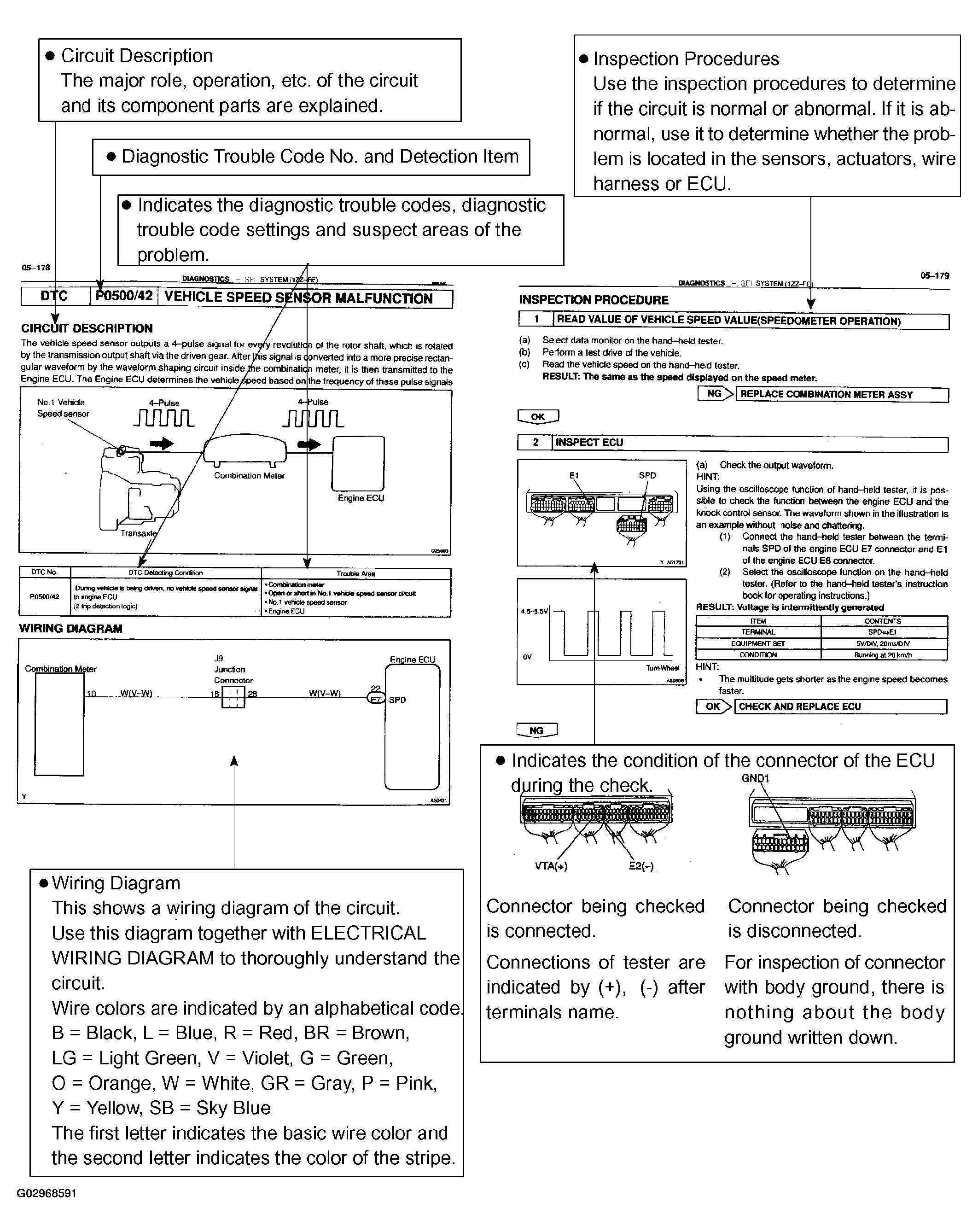

Fig 1: Circuit Inspection Description Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
