Vehicle Lift And Support Locations

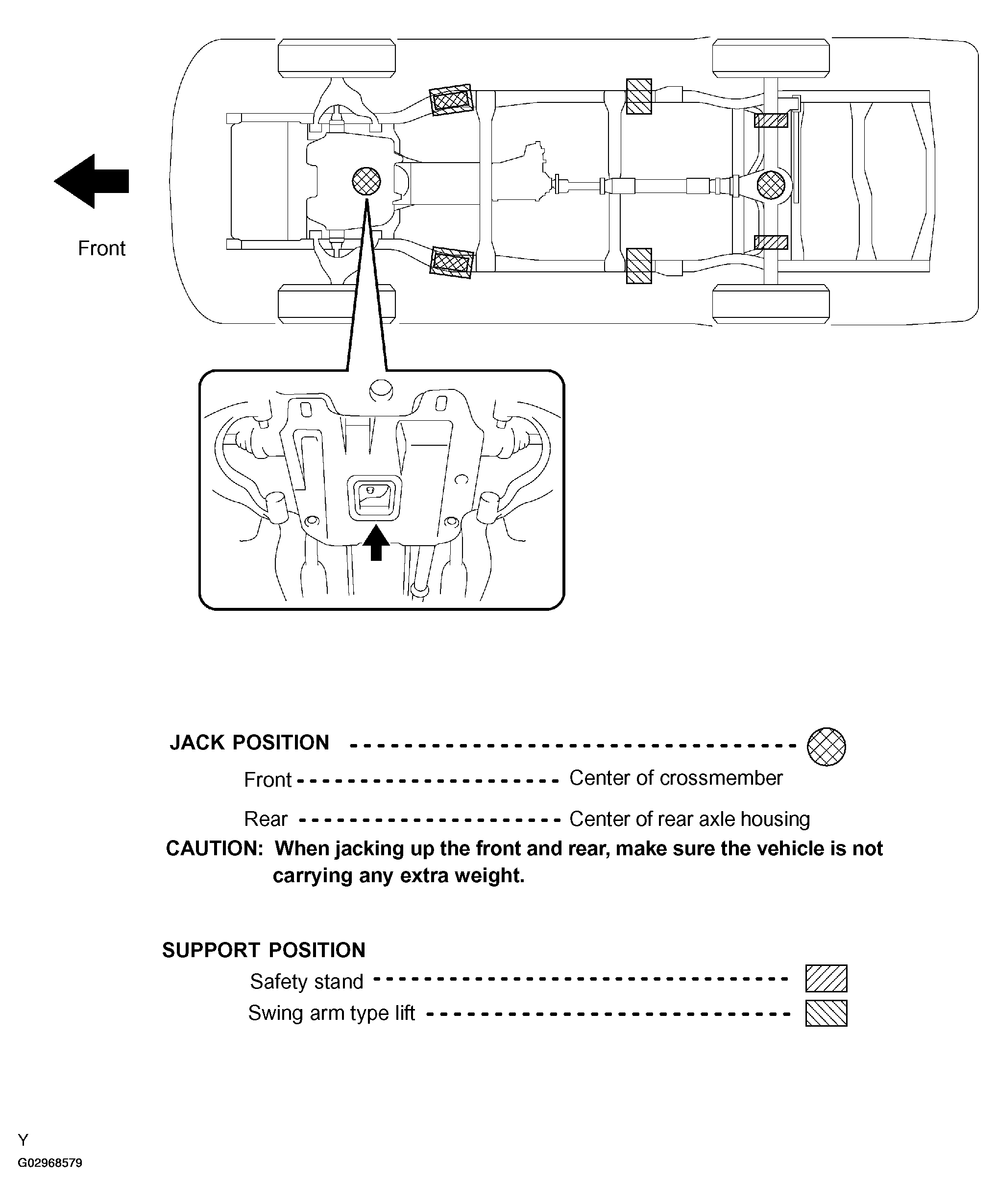

Fig 1: Identifying Vehicle Lift & Support Locations
G02968579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
