Charging Systems: Charging: Generator: Components

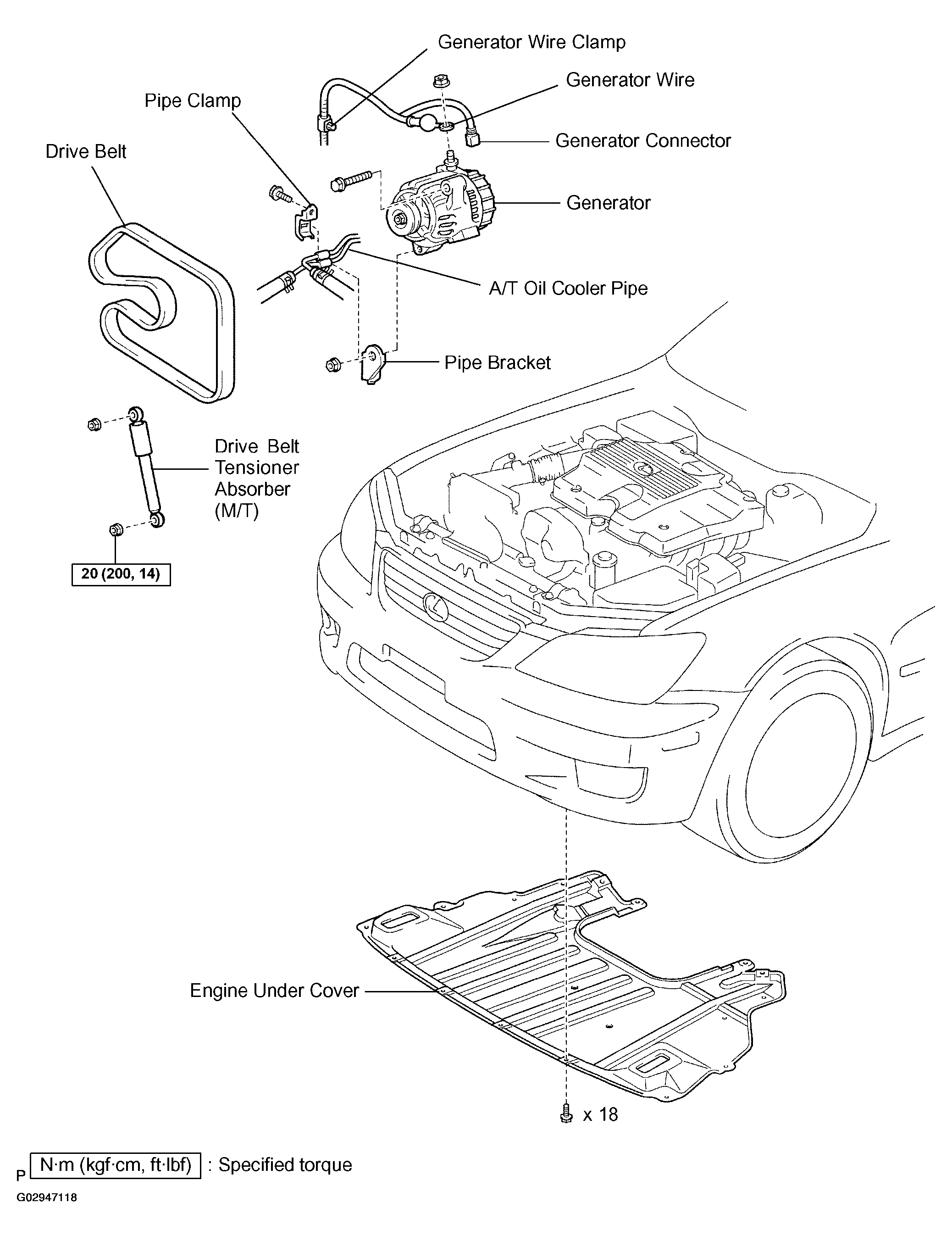

Fig 1: Removal & Installation Of Generator
G02947118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

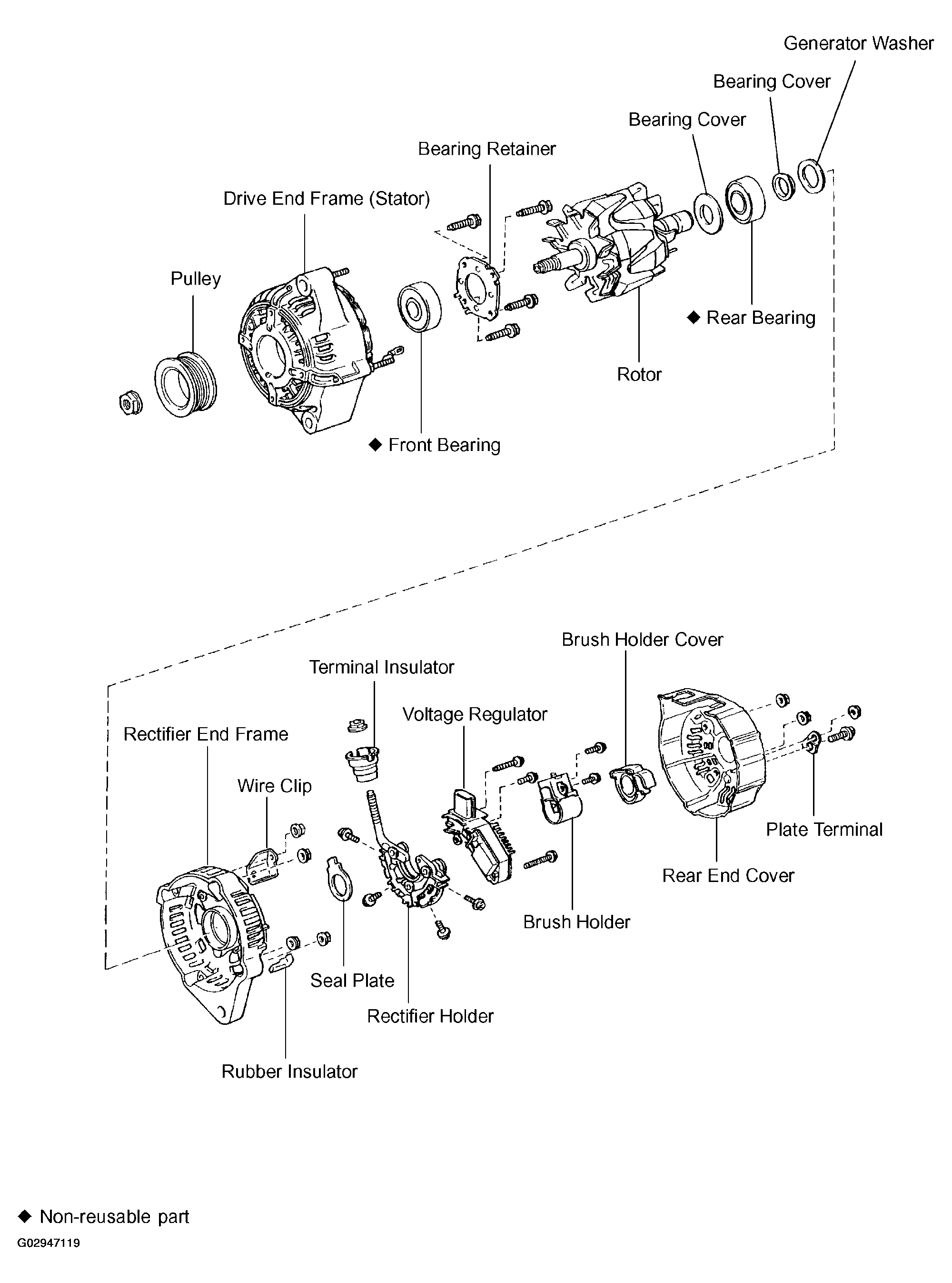

Fig 2: Exploded View Of Generator
G02947119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
