Home >> Lexus >> 2005 >> LX 470 >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Preparation >> Transfer >> SST (Special Service Tools)

SST (Special Service Tools)

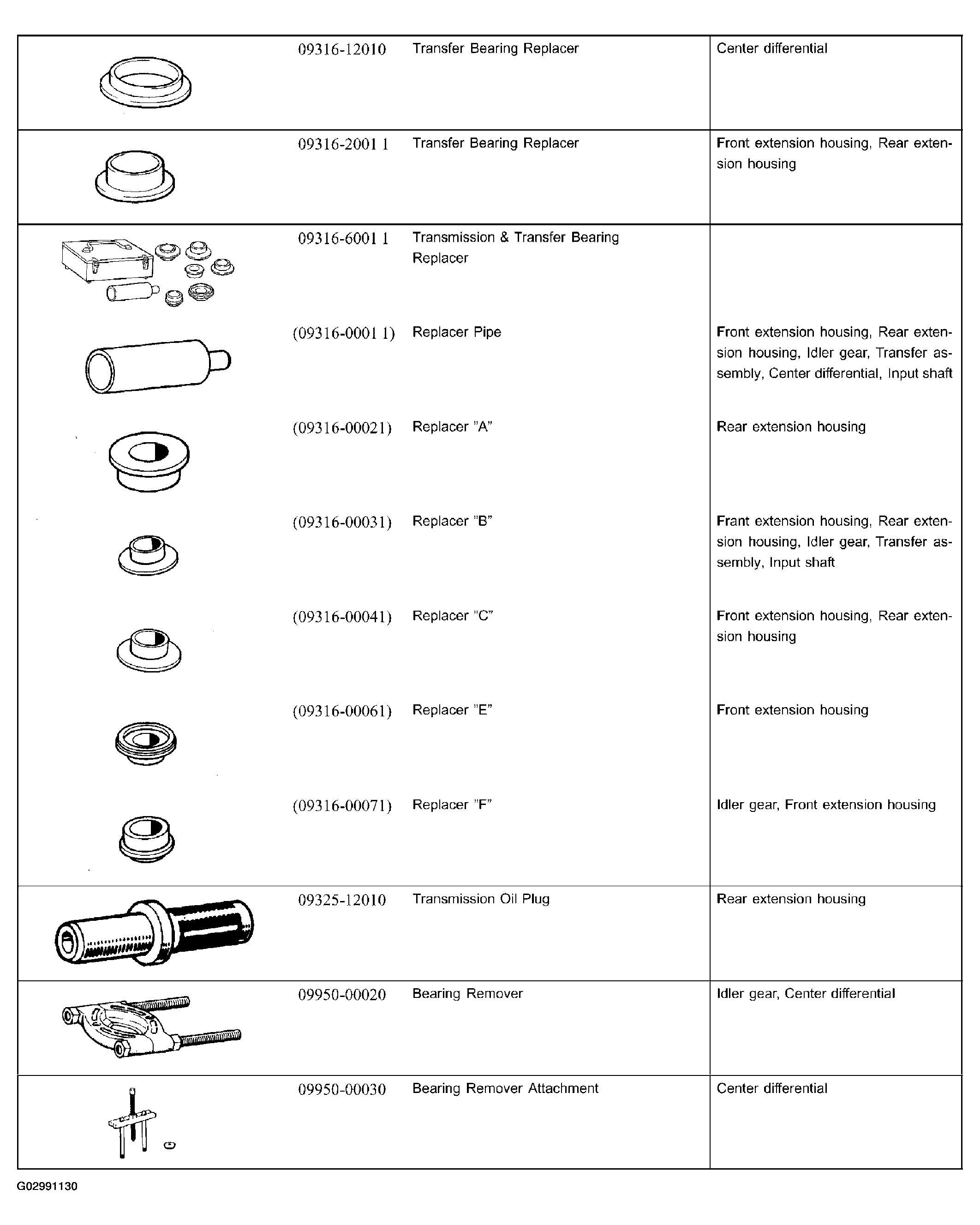

Fig 1: Identifying Special Service Tools - Transfer (1 Of 3)
G02991130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

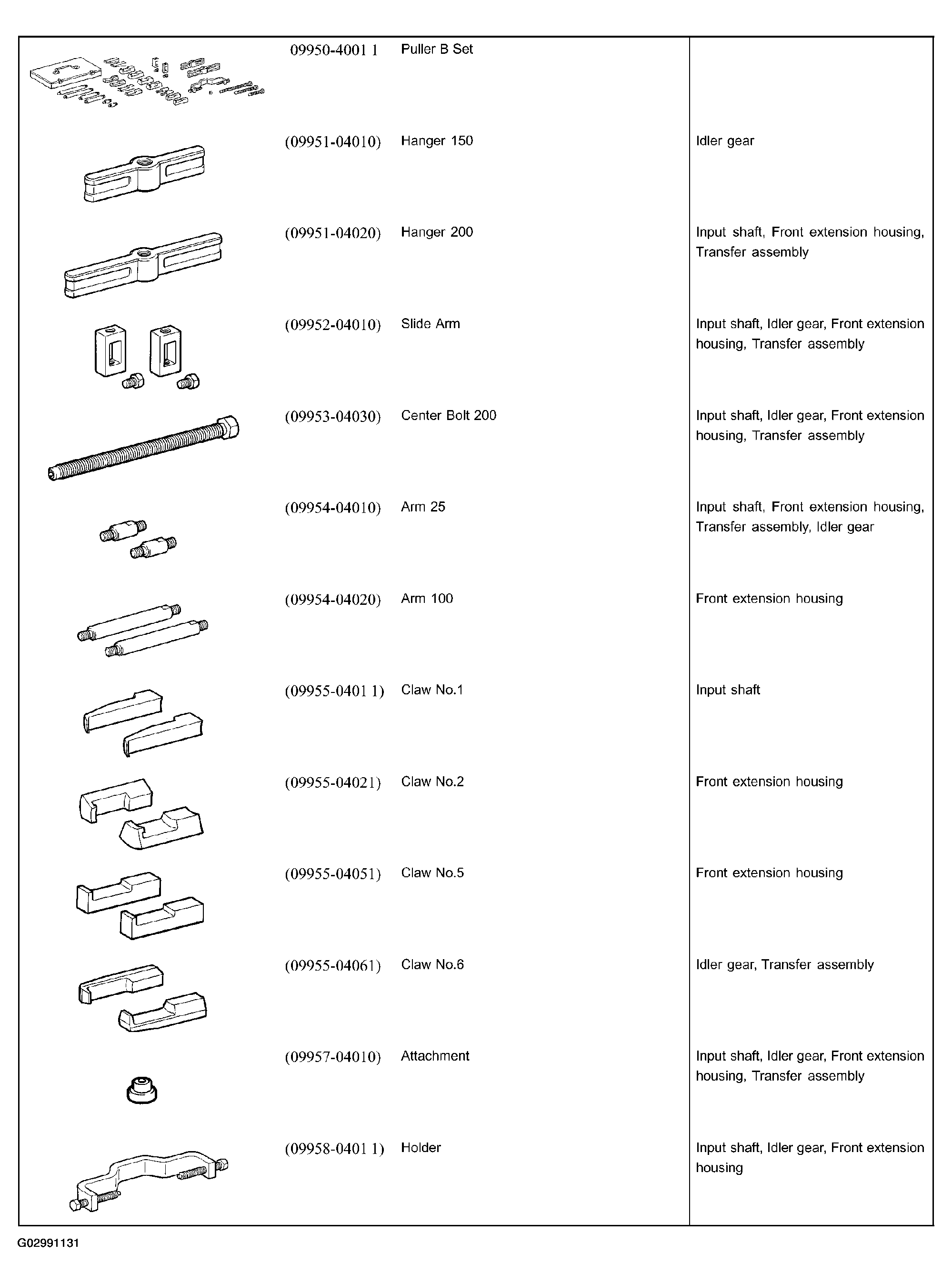

Fig 2: Identifying Special Service Tools - Transfer (2 Of 3)
G02991131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

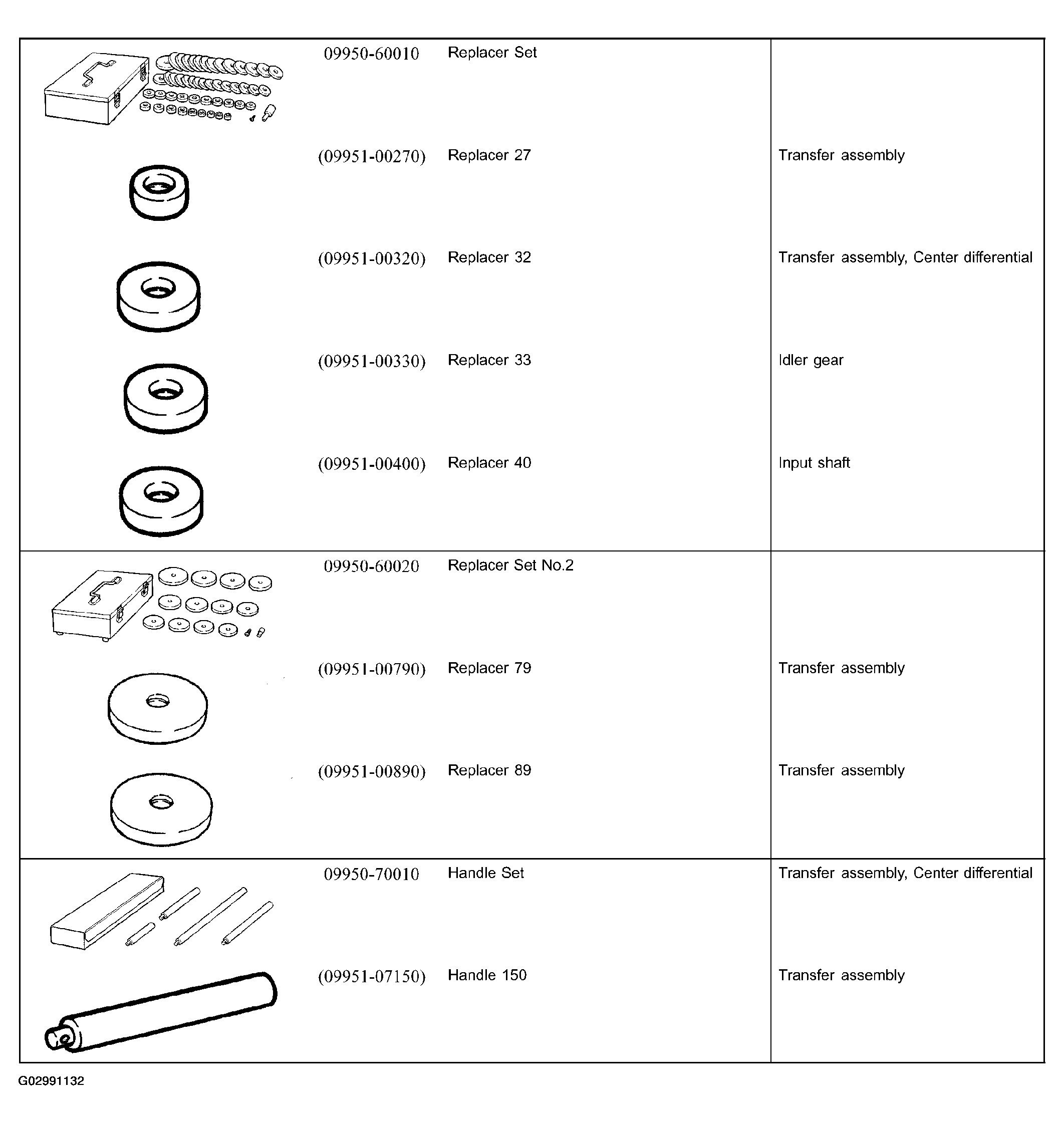

Fig 3: Identifying Special Service Tools - Transfer (3 Of 3)
G02991132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
