Throttle Body ASSY (3MZ-FE): Components

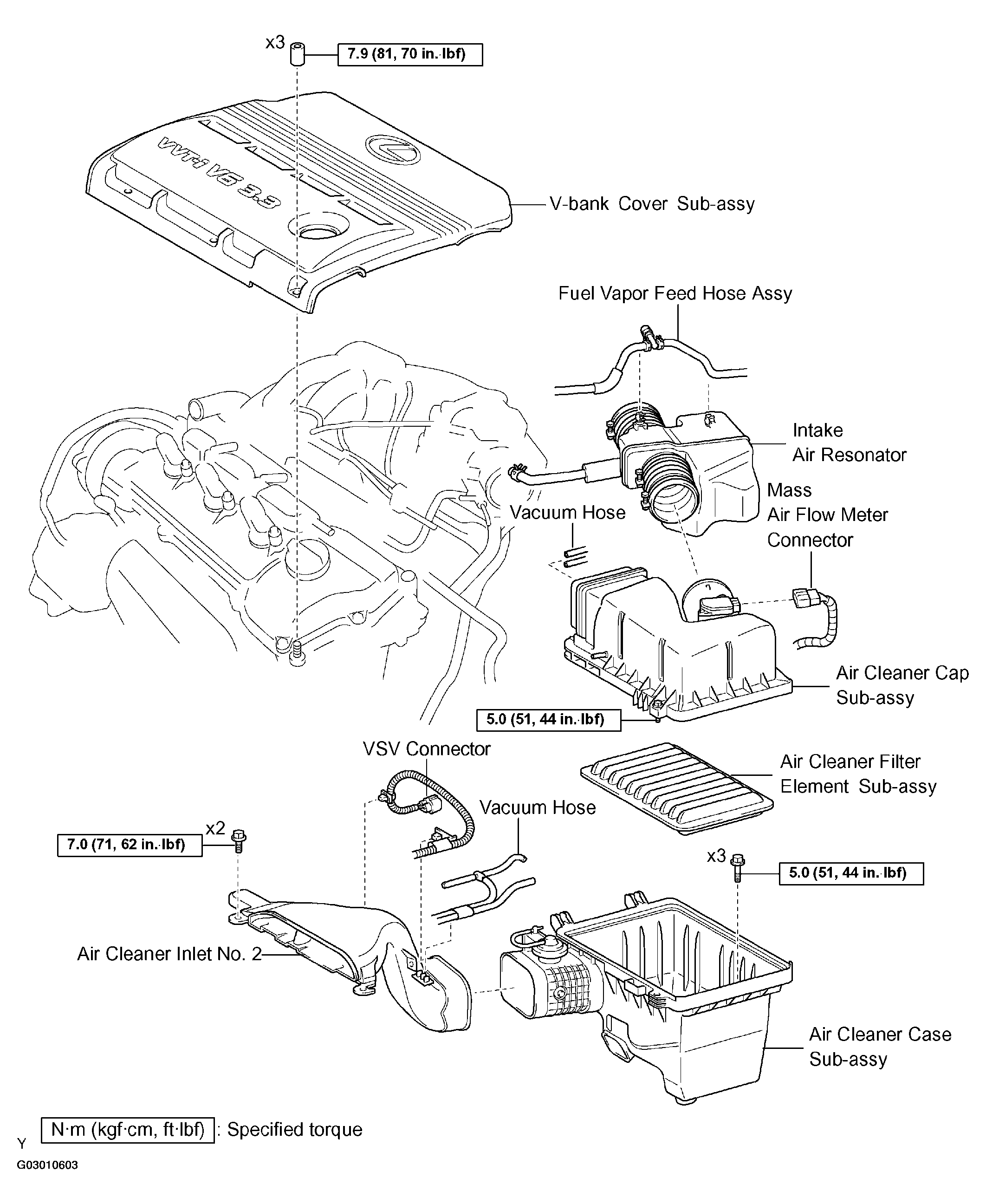

Fig 1: Identifying Throttle Body Assy Components And Replacements

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

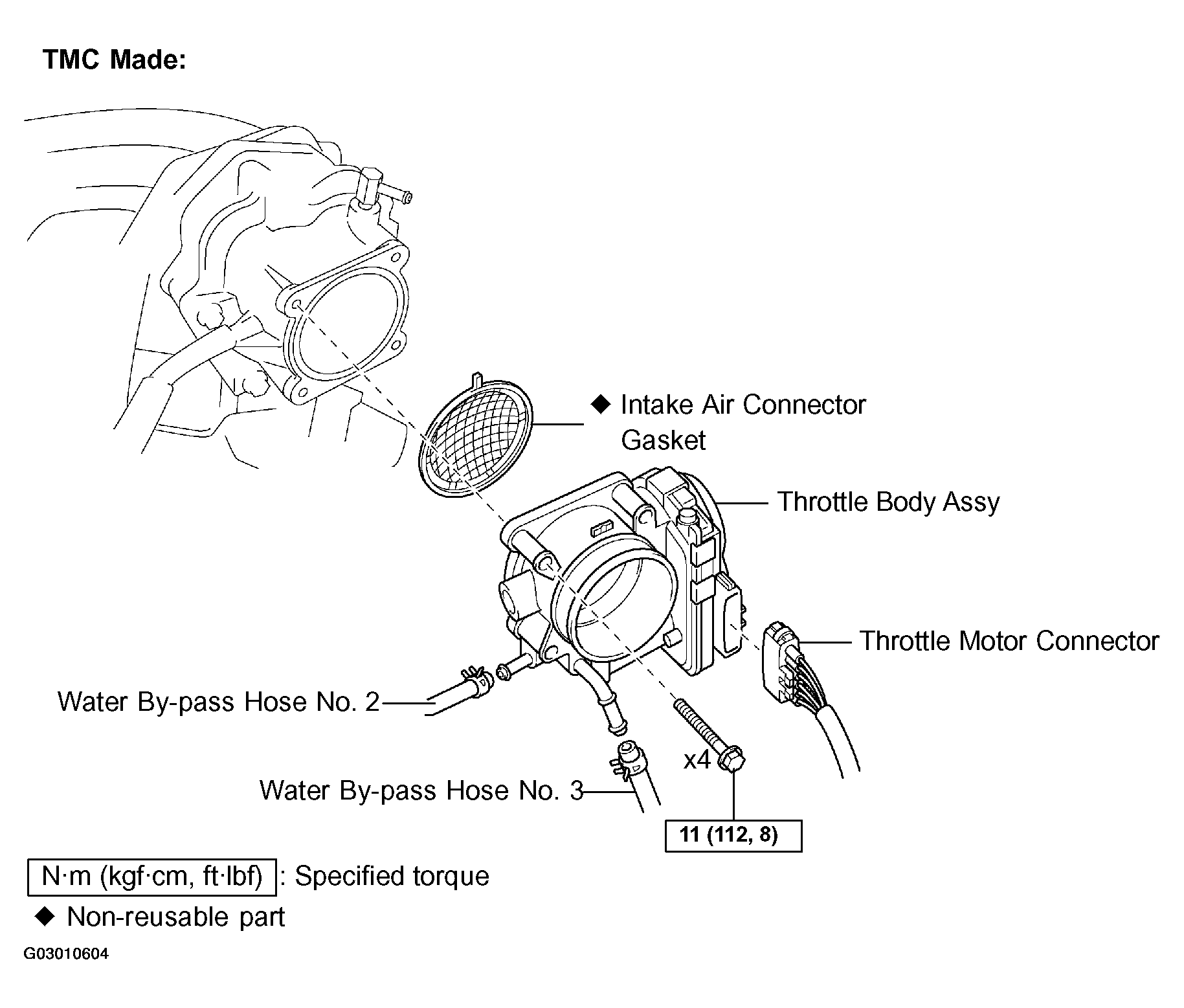

Fig 2: Identifying Throttle Body Assy Components And Replacements (TMC Made)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

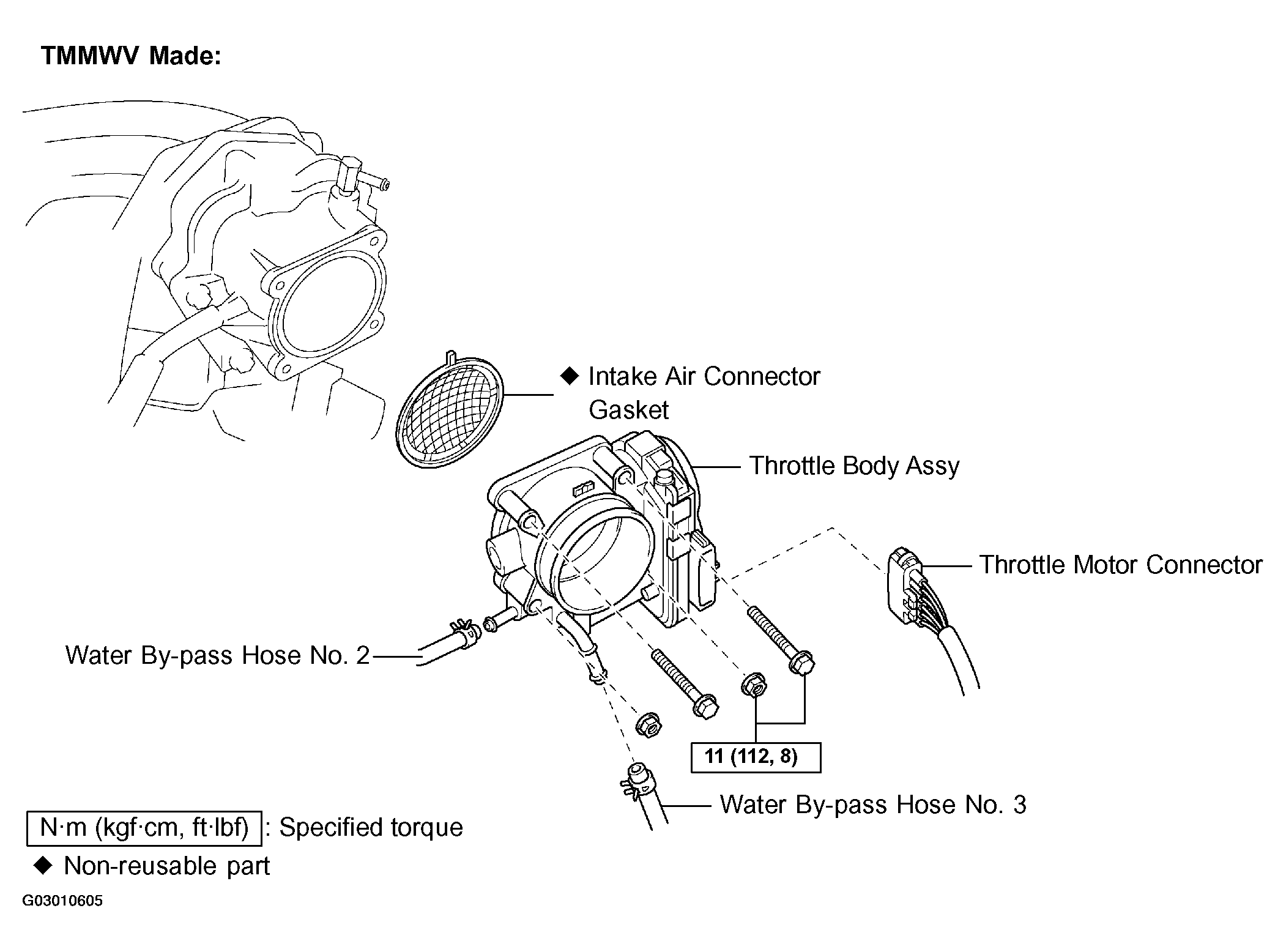

Fig 3: Identifying Throttle Body Assy Components And Replacements (TMMWV Made)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
