Drive Shaft/Propeller Shaft: Preparation: SST

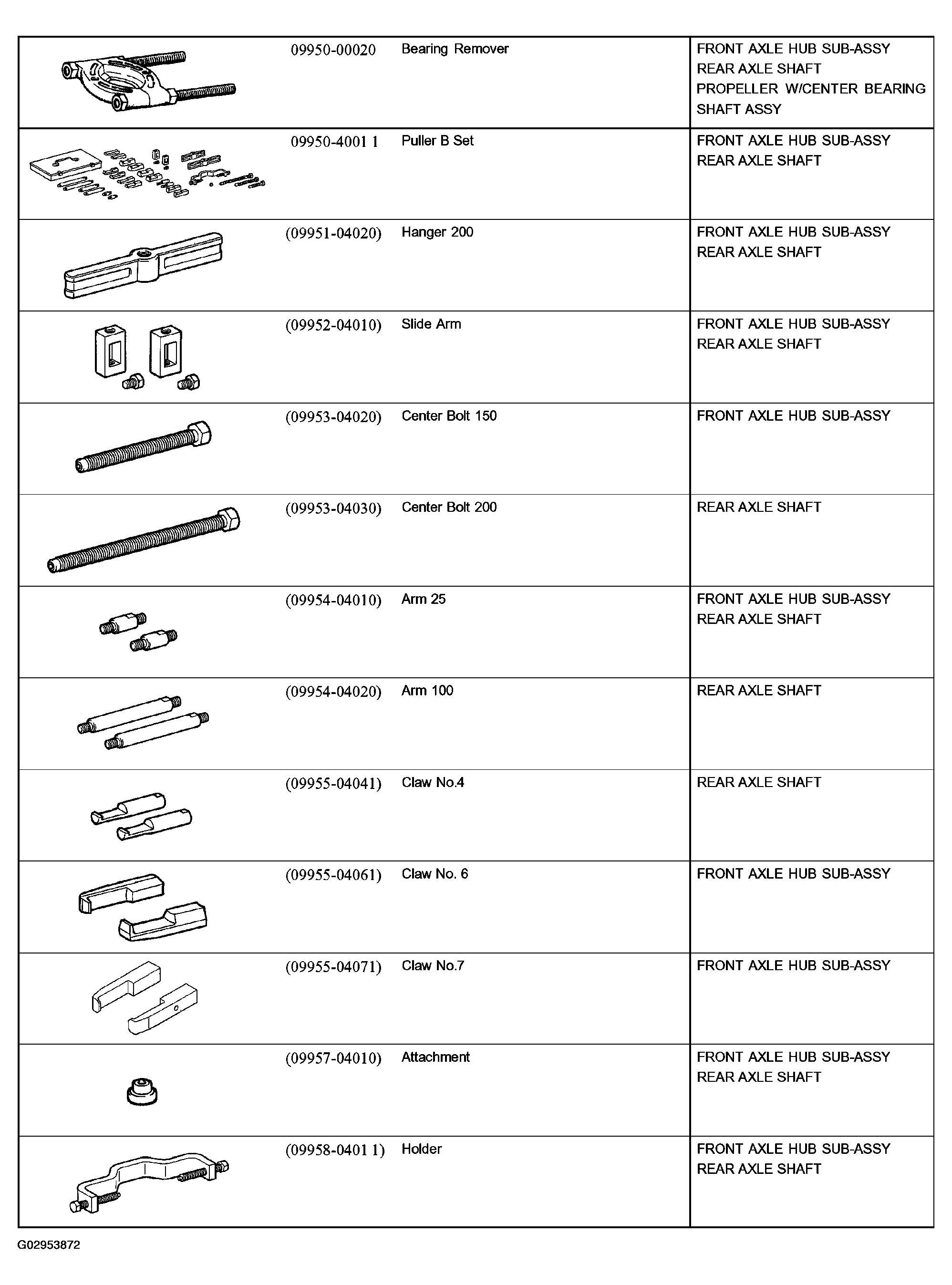

Fig 1: Drive Shaft/Propeller Shaft - Preparation Special Tools Specifications Table (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

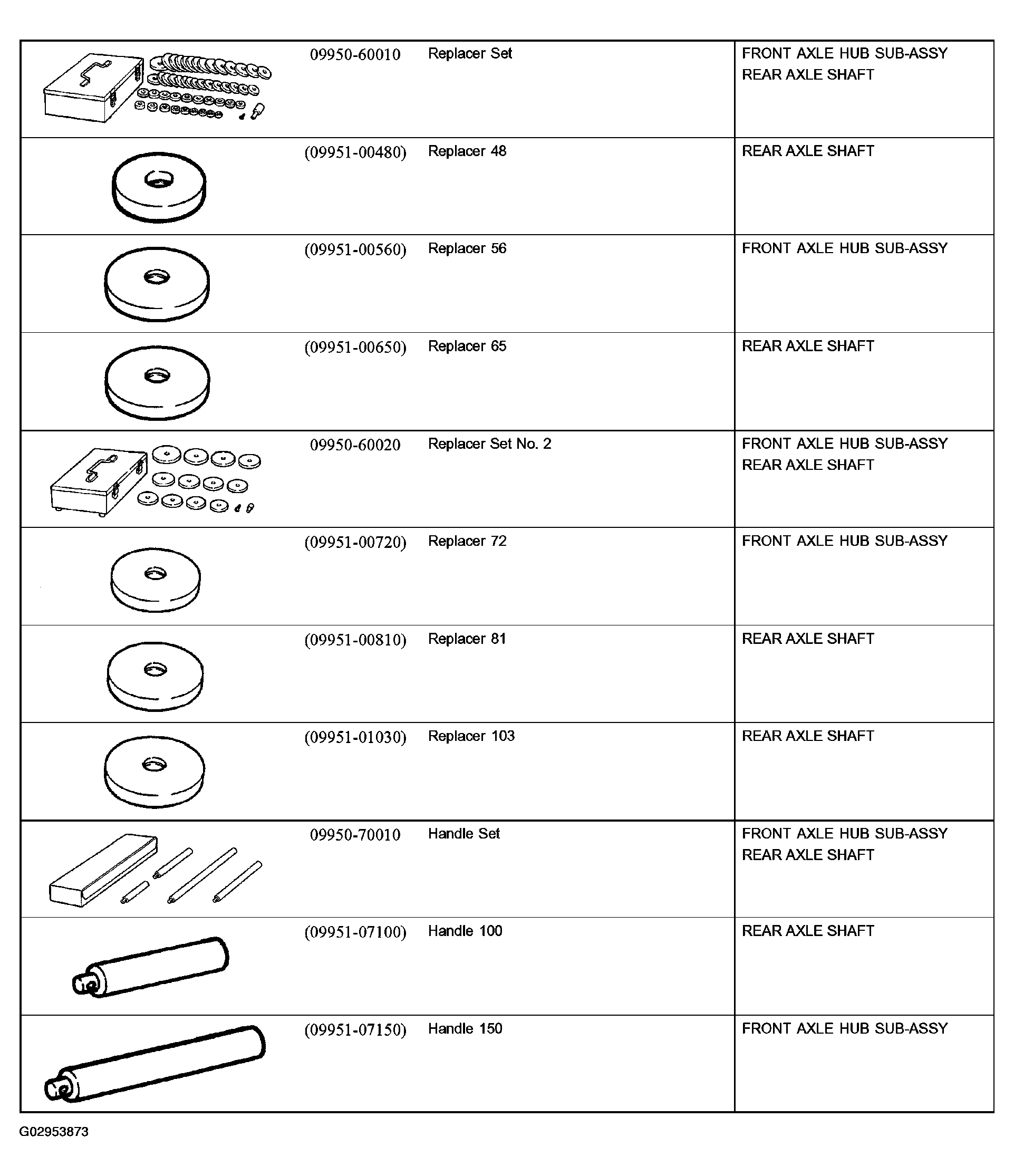

Fig 2: Drive Shaft/Propeller Shaft - Preparation Special Tools Specifications Table (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

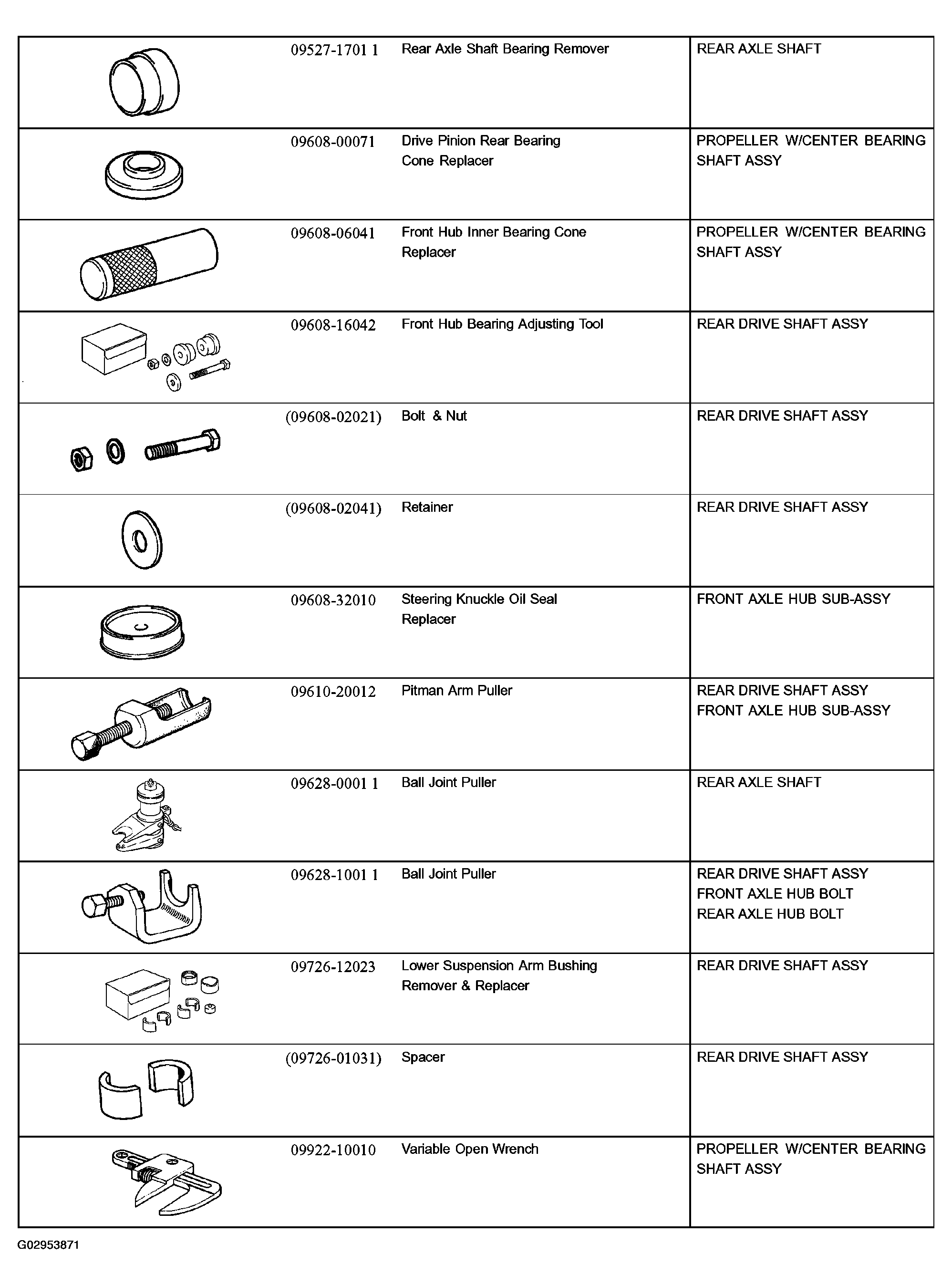

Fig 3: Drive Shaft/Propeller Shaft - Preparation Special Tools Specifications Table (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

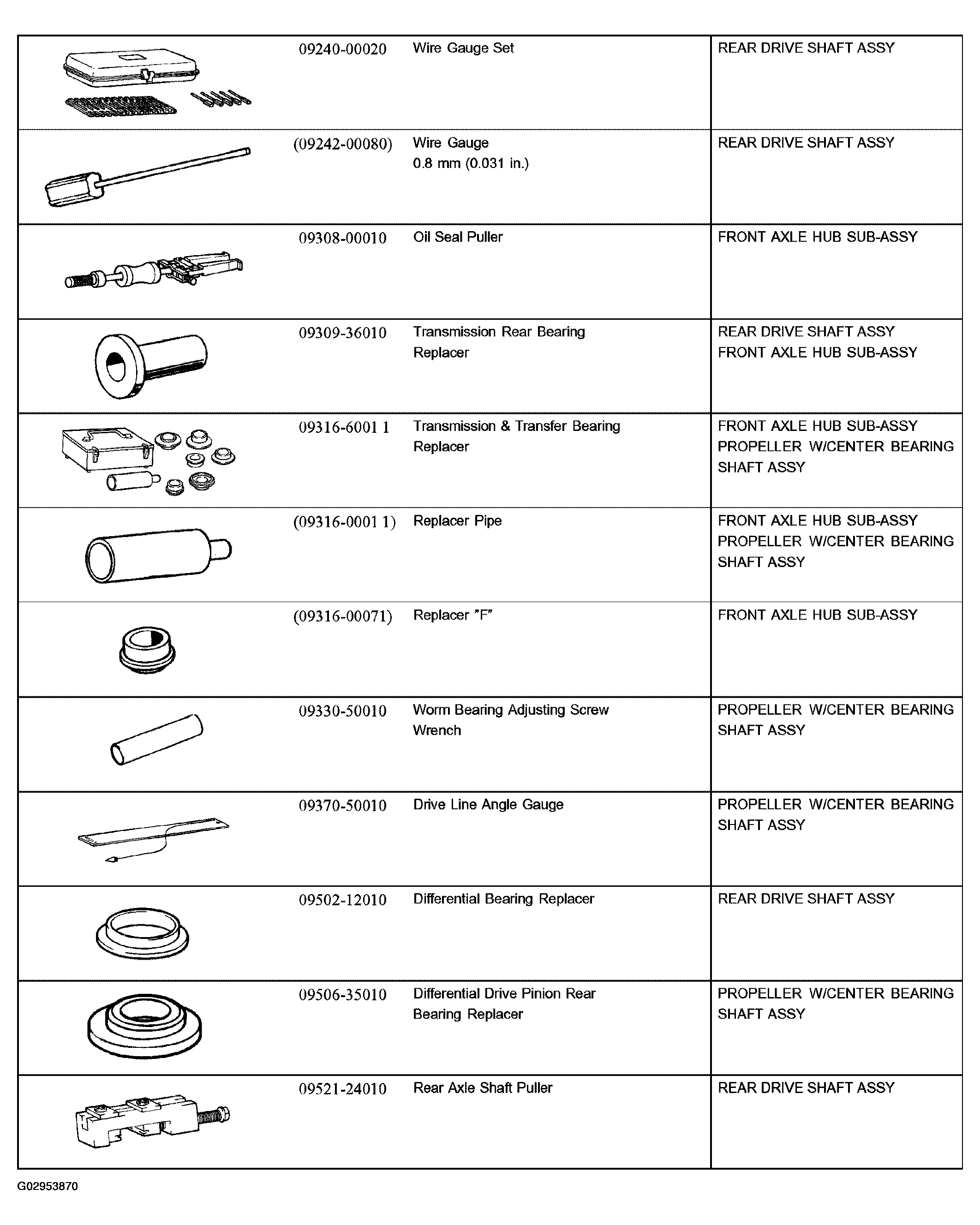

Fig 4: Drive Shaft/Propeller Shaft - Preparation Special Tools Specifications Table (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
