Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3UZ-FE) >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

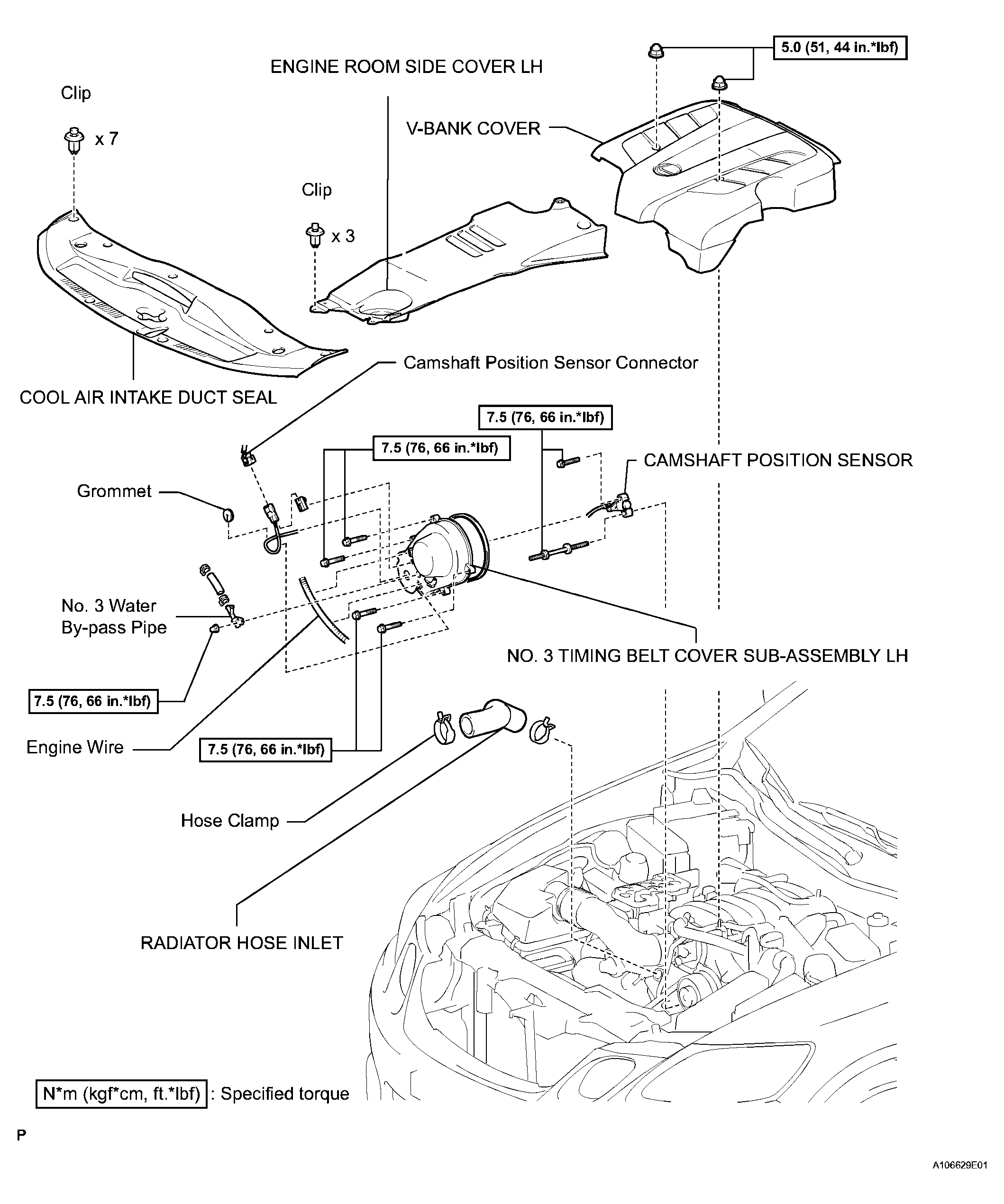

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
G04027198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
