Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3UZ-FE) >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

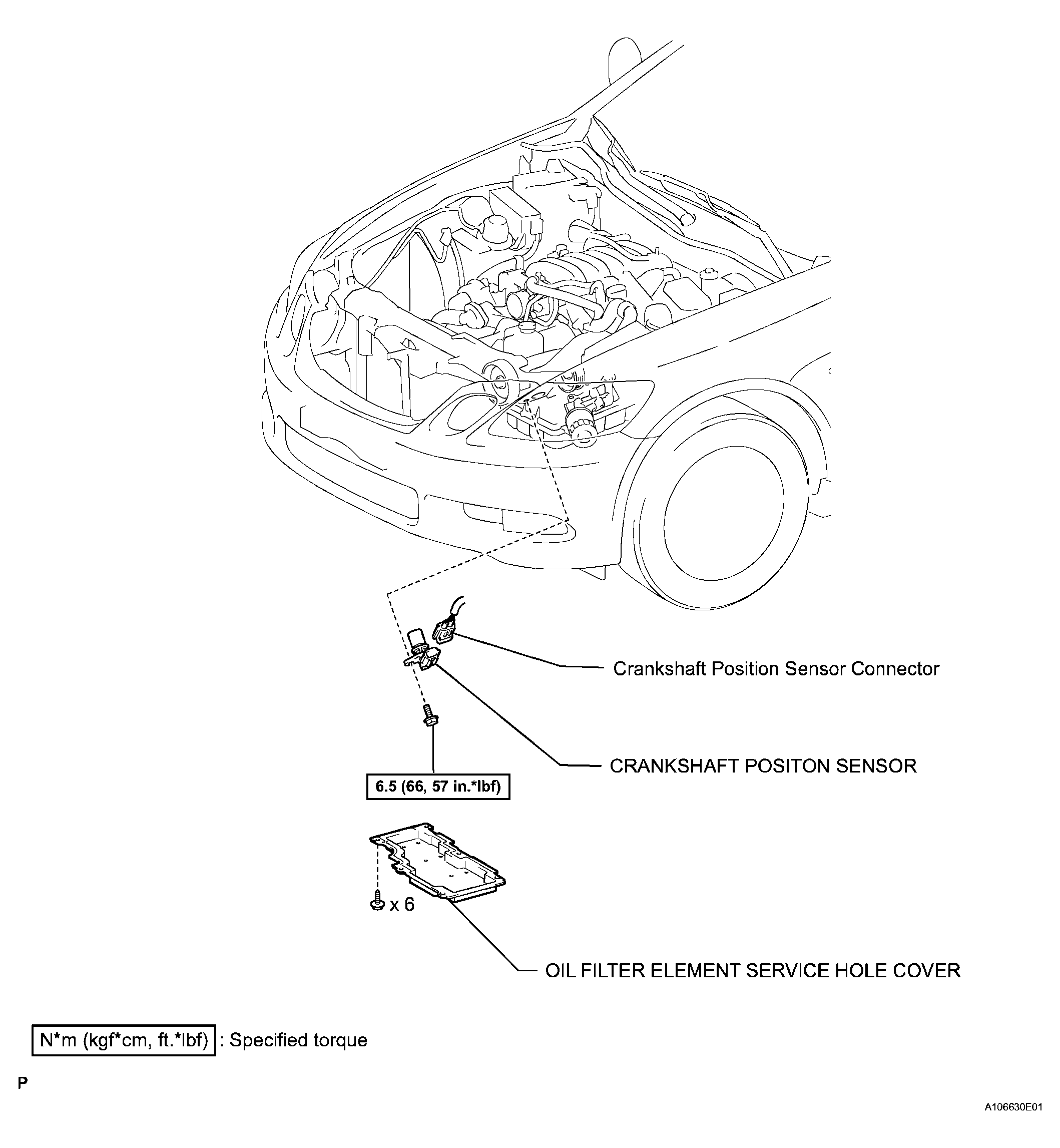

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
G04027206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
