Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3UZ-FE) >> Engine Coolant Temperature Sensor >> Components

Engine Coolant Temperature Sensor: Components

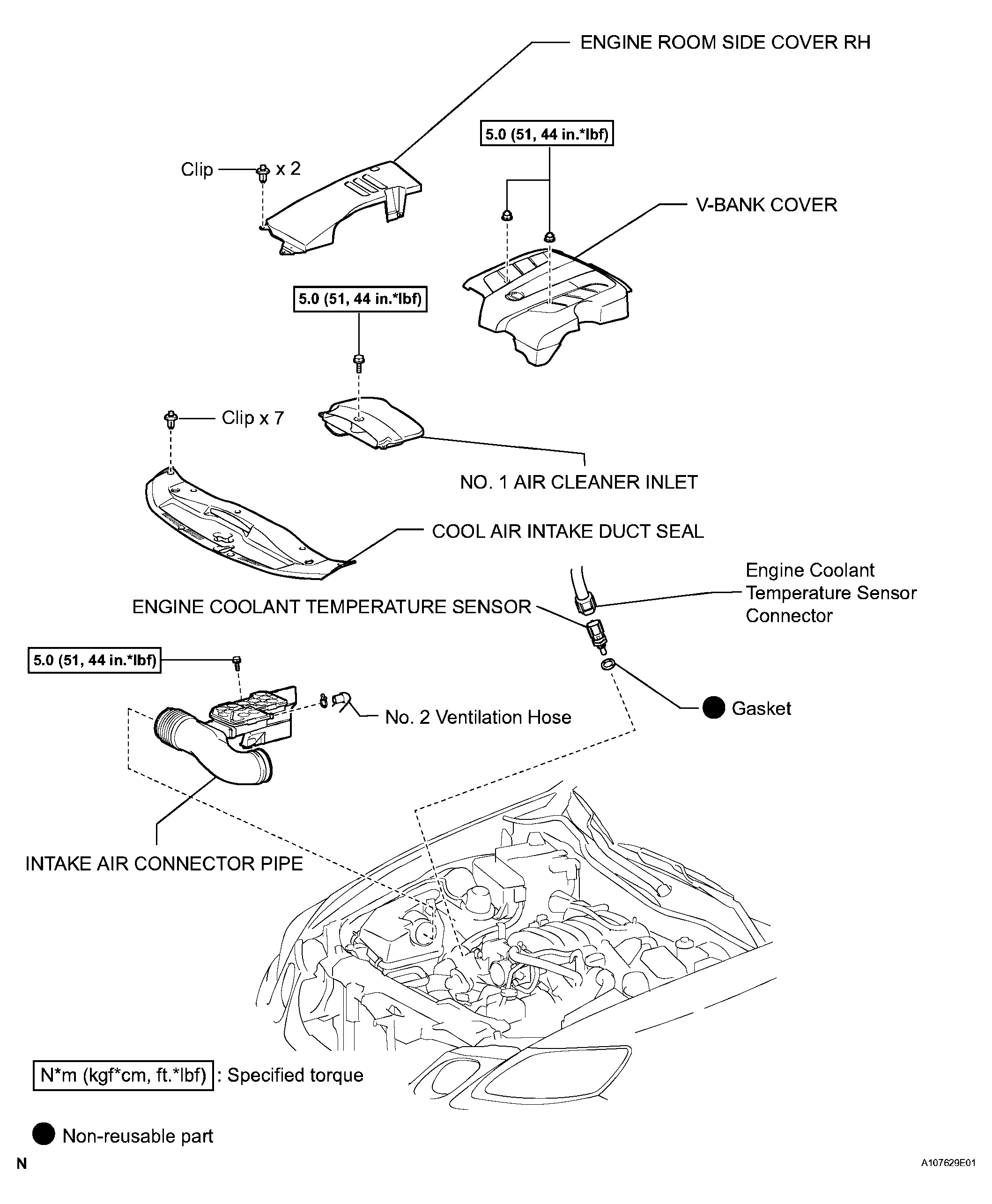

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications

G04027210

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
