Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3UZ-FE) >> Mass Air Flow Meter >> Components

Mass Air Flow Meter: Components

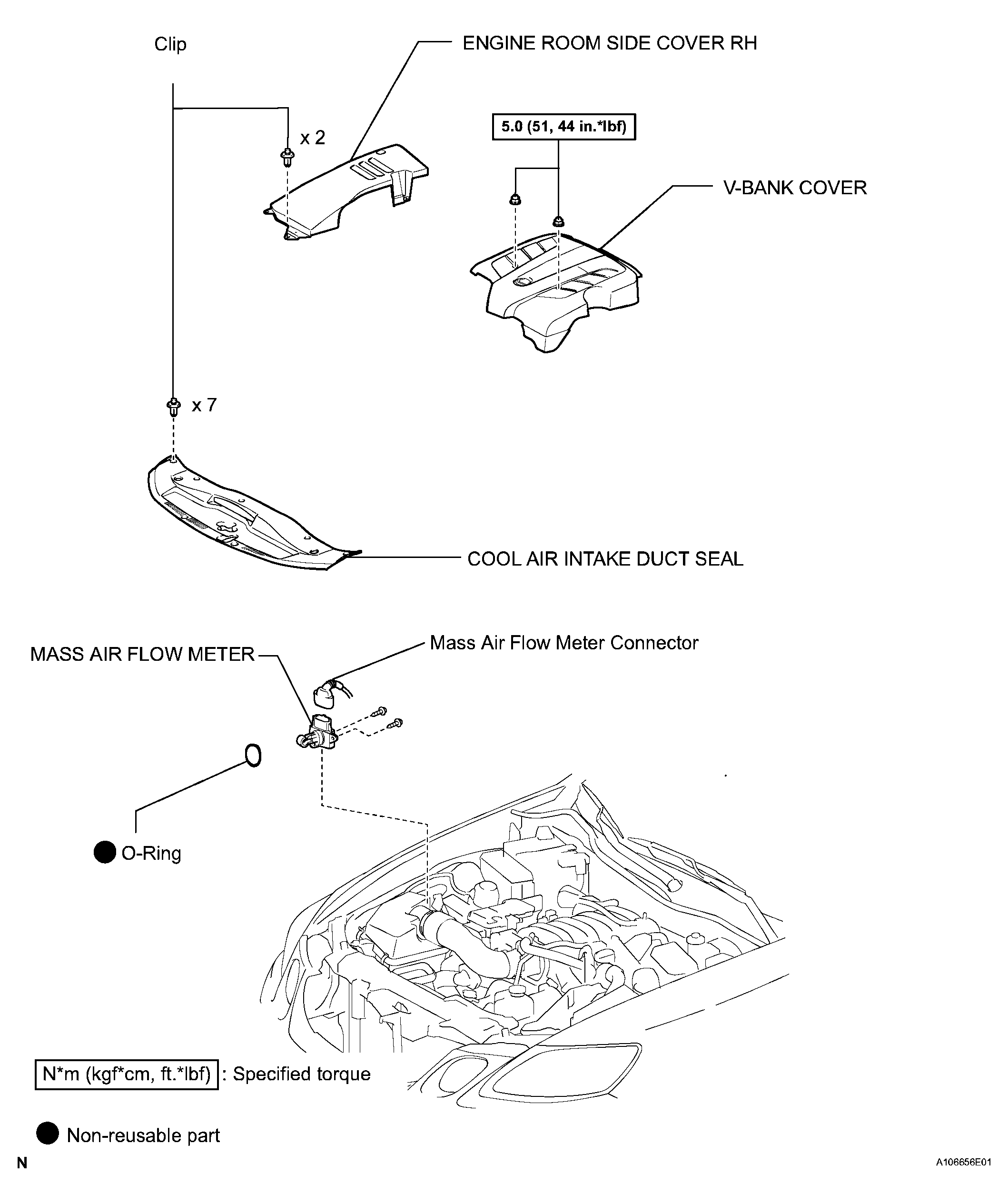

Fig 1: Mass Air Flow Meter Replacement Components With Torque Specifications

G04027180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
