Parts Location
Parts Location

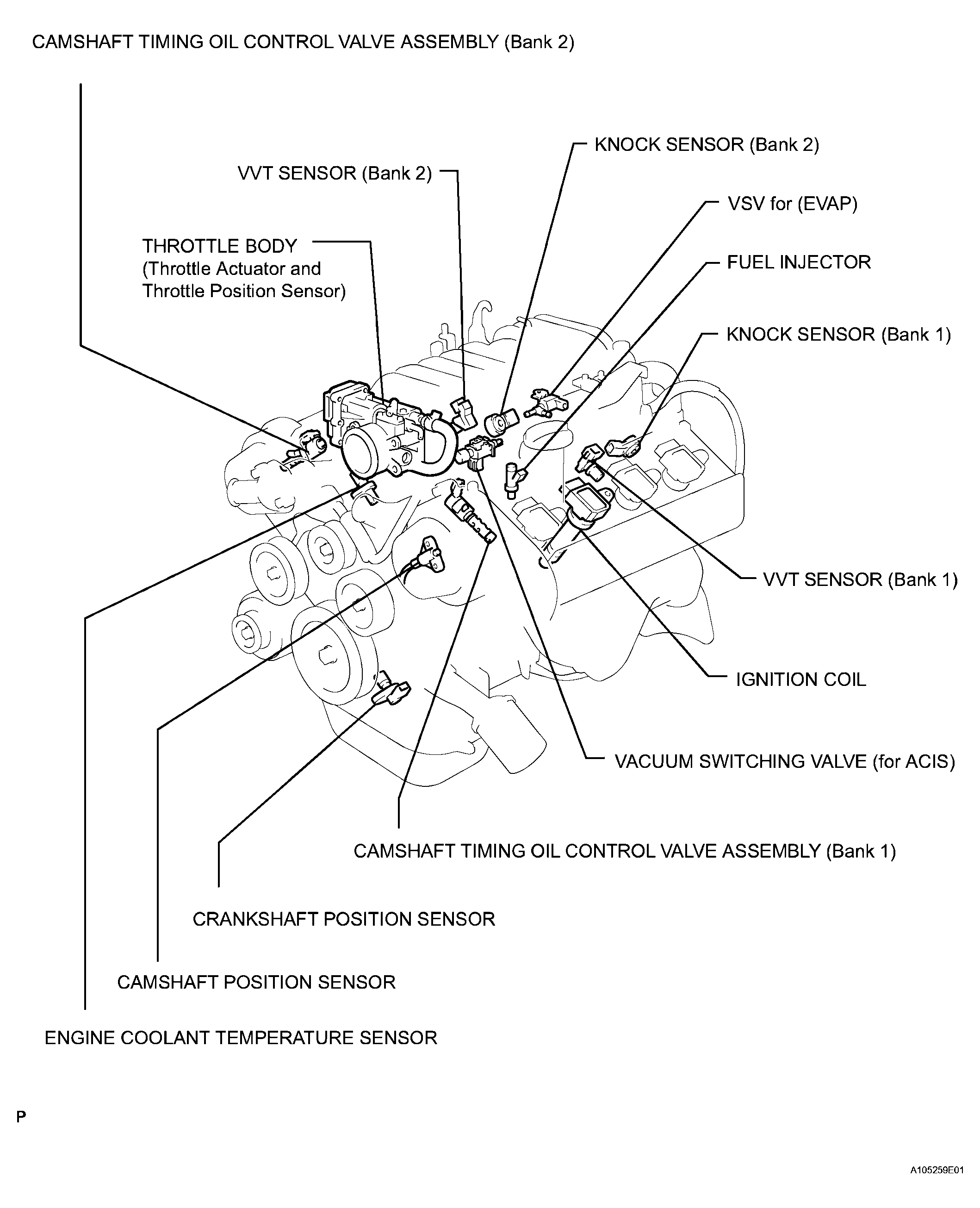

Fig 1: Parts Location Engine Control System (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Parts Location Engine Control System (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

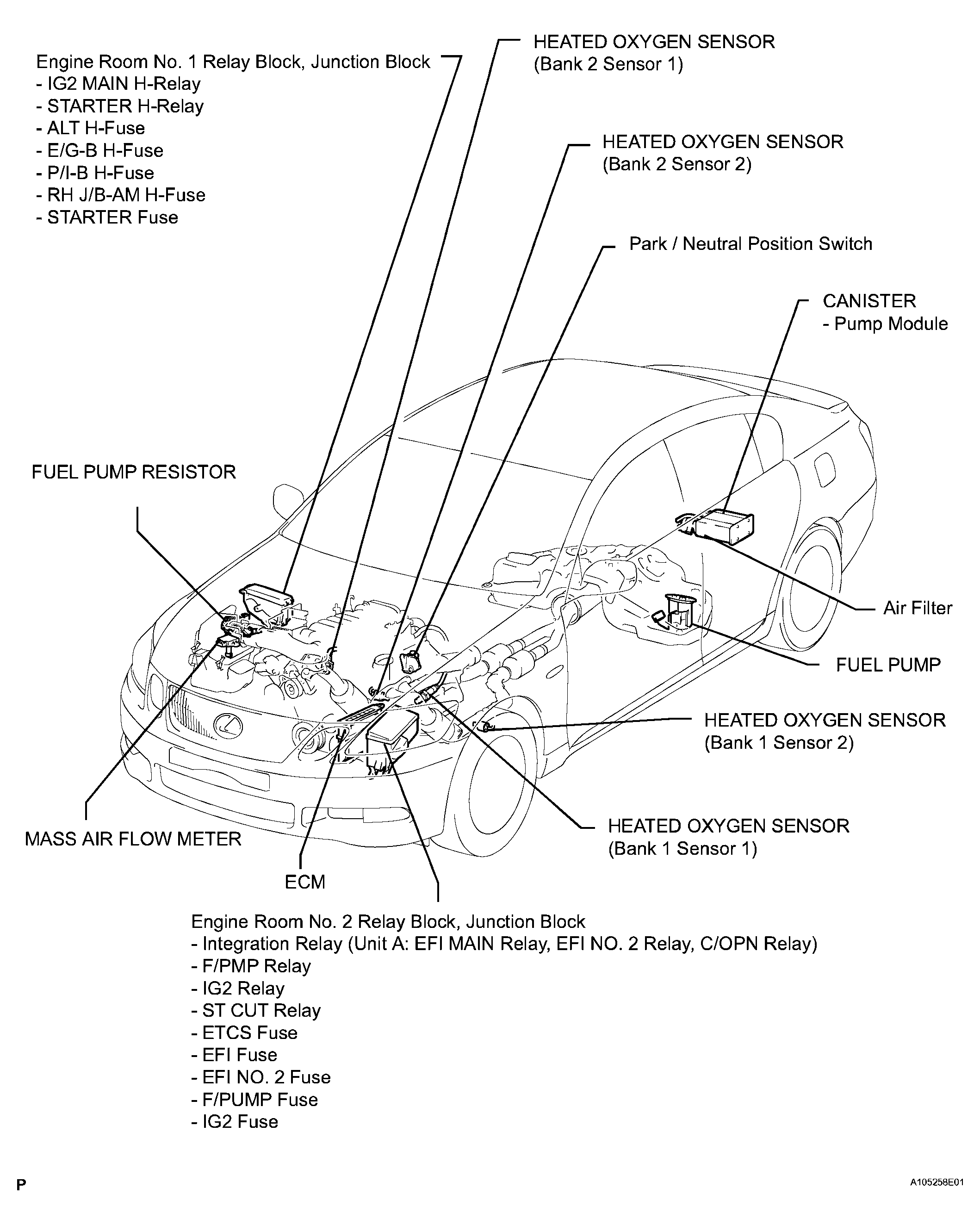

Fig 3: Parts Location Engine Control System (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
