Home >> Lexus >> 2006 >> GS 430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (3UZ-FE) >> Throttle Body >> Components

Throttle Body: Components

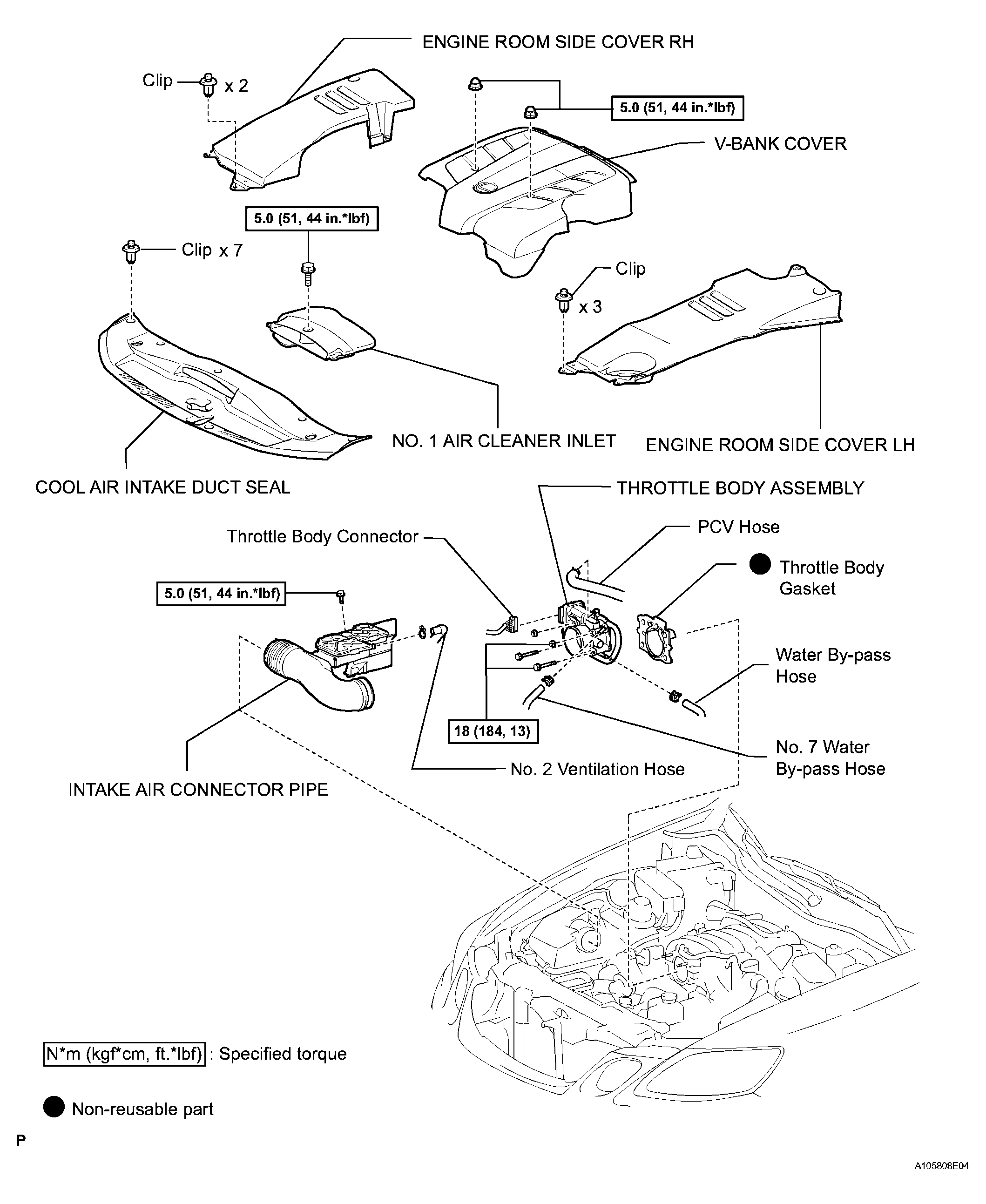

Fig 1: Throttle Body Replacement Components With Torque Specifications

G04027214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
