Home >> Lexus >> 2006 >> LS 430 >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition >> Camshaft Position Sensor >> Components

Camshaft Position Sensor: Components

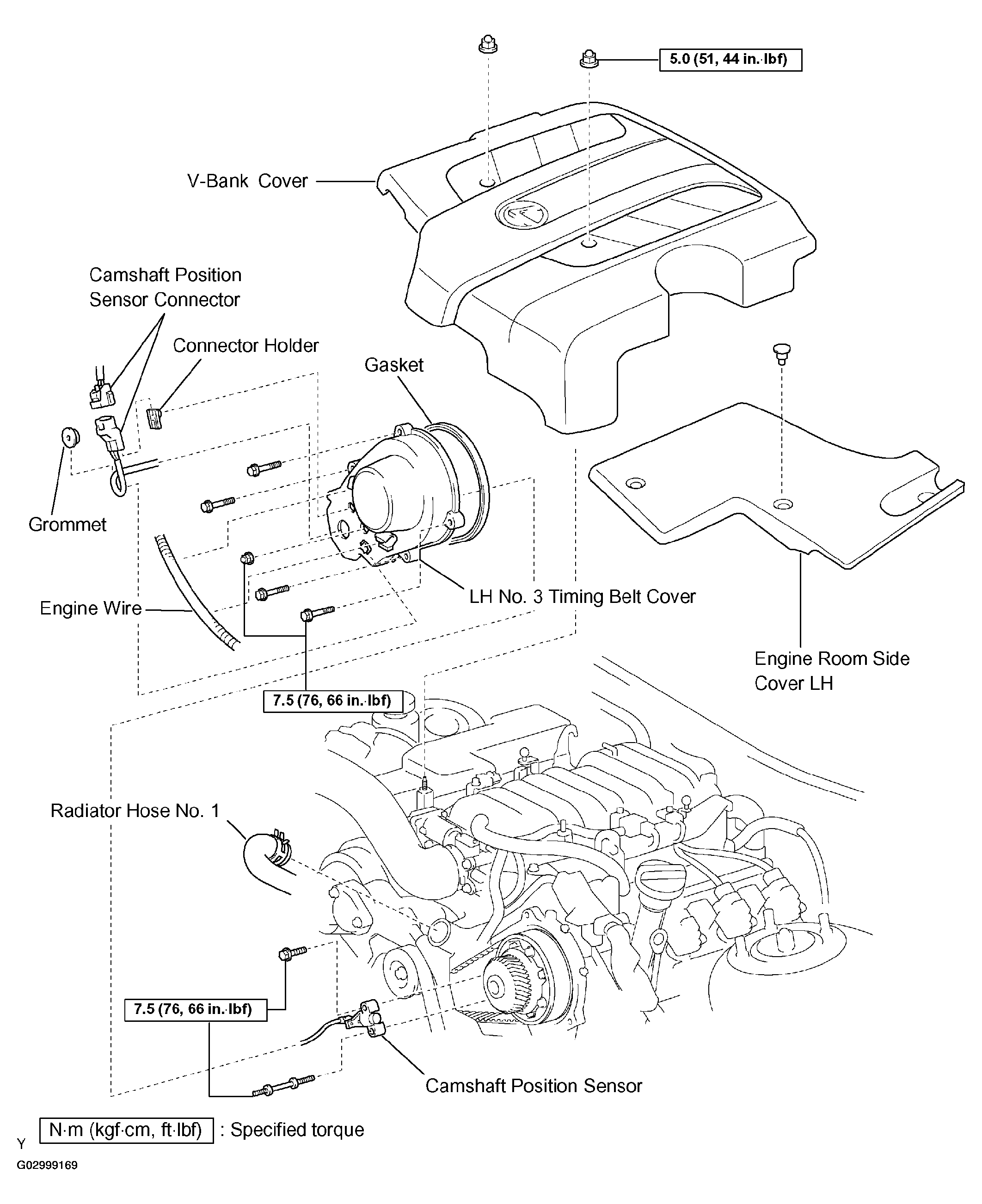

Fig 1: Identifying Camshaft Position Sensor Components And Replacements

G02999169

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
