Camshaft Timing Oil Control Valve ASSY RH: Components

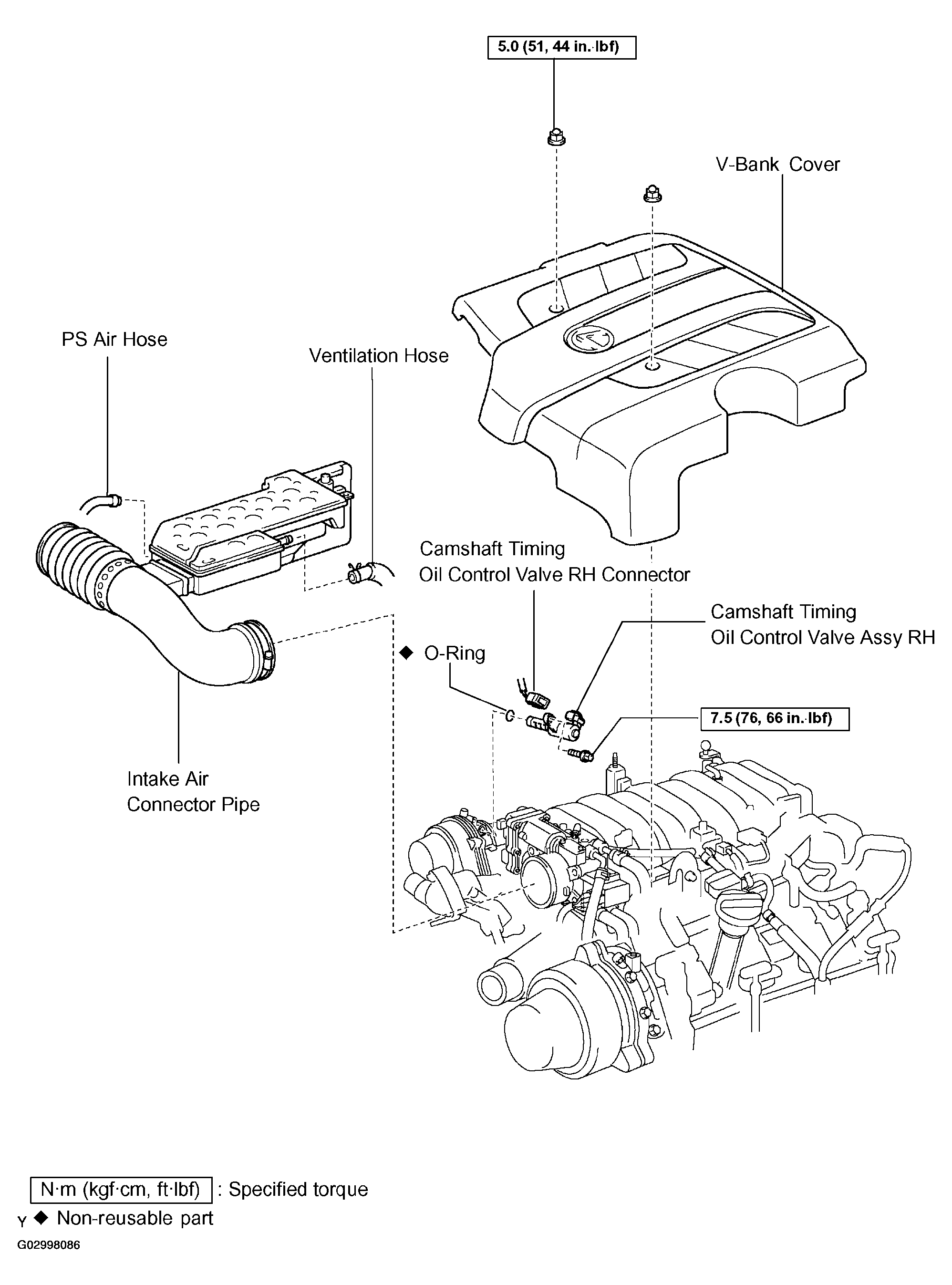

Fig 1: Identifying Camshaft Timing Oil Control Valve Assy RH Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
