Engine Control System
>>
SFI System
>>
System Diagram
System Diagram
Engine control system is determined by the ECM based on signals from various sensors.

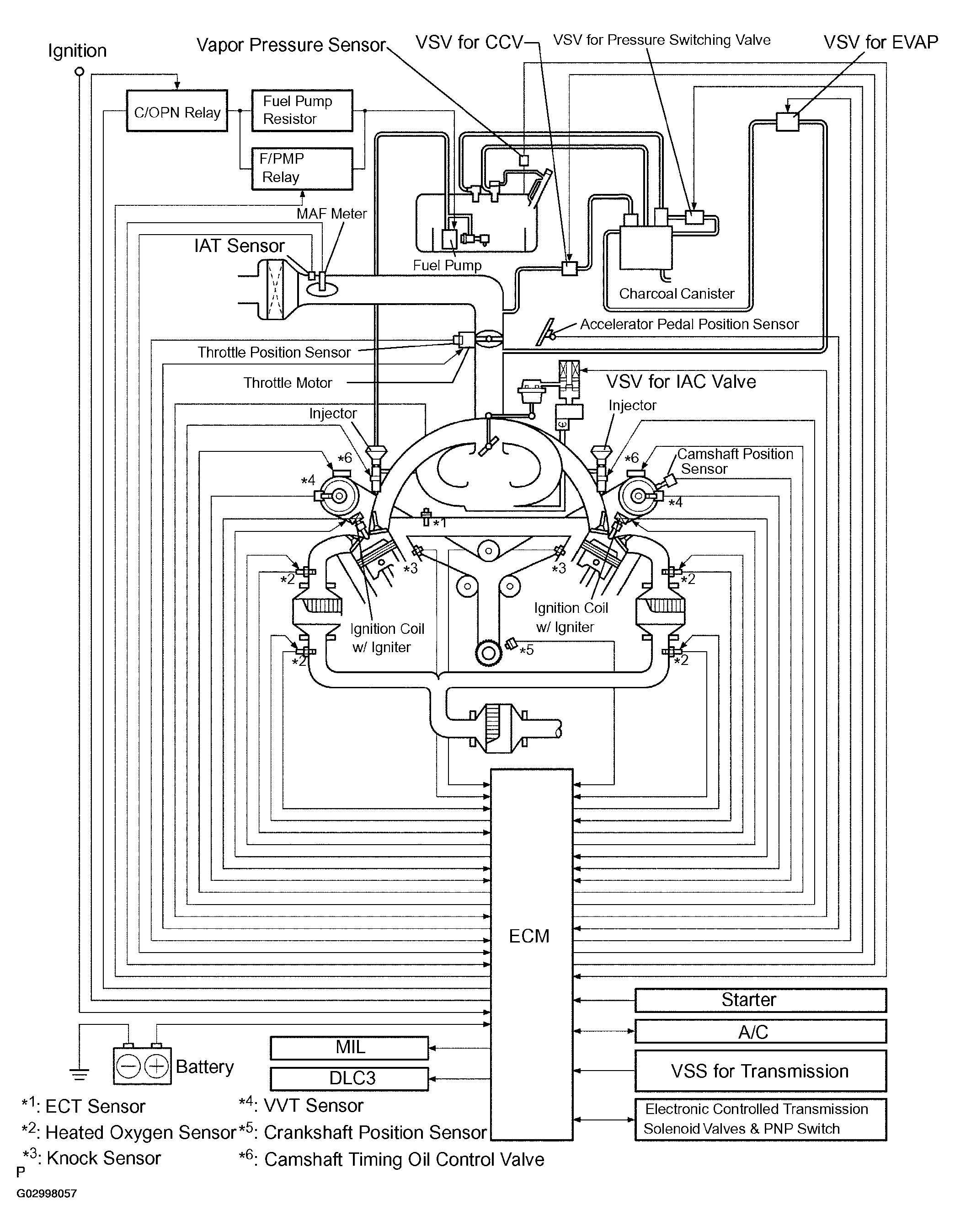

Fig 1: Engine Control - System Diagram
