Home >> Lexus >> 2006 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition >> Crankshaft Position Sensor >> Components

Crankshaft Position Sensor: Components

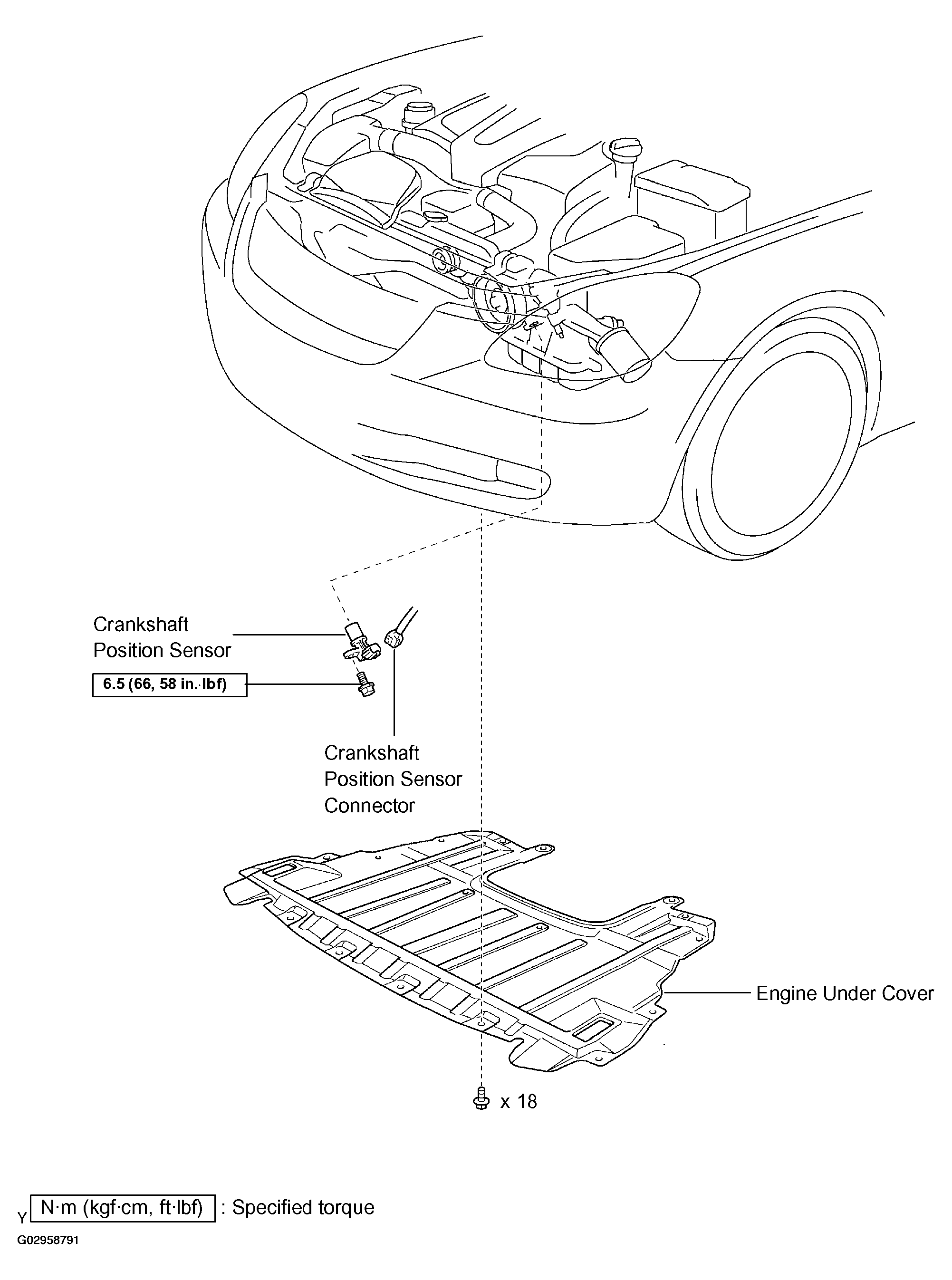

Fig 1: Identifying Crankshaft Position Sensor Components & Replacements
G02958791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
