Home >> Lexus >> 2006 >> SC 430 >> Repair and Diagnosis >> Engine Performance >> Testing & Diagnosis >> Engine Control System >> ECM >> Components

Engine Control System: ECM: Components

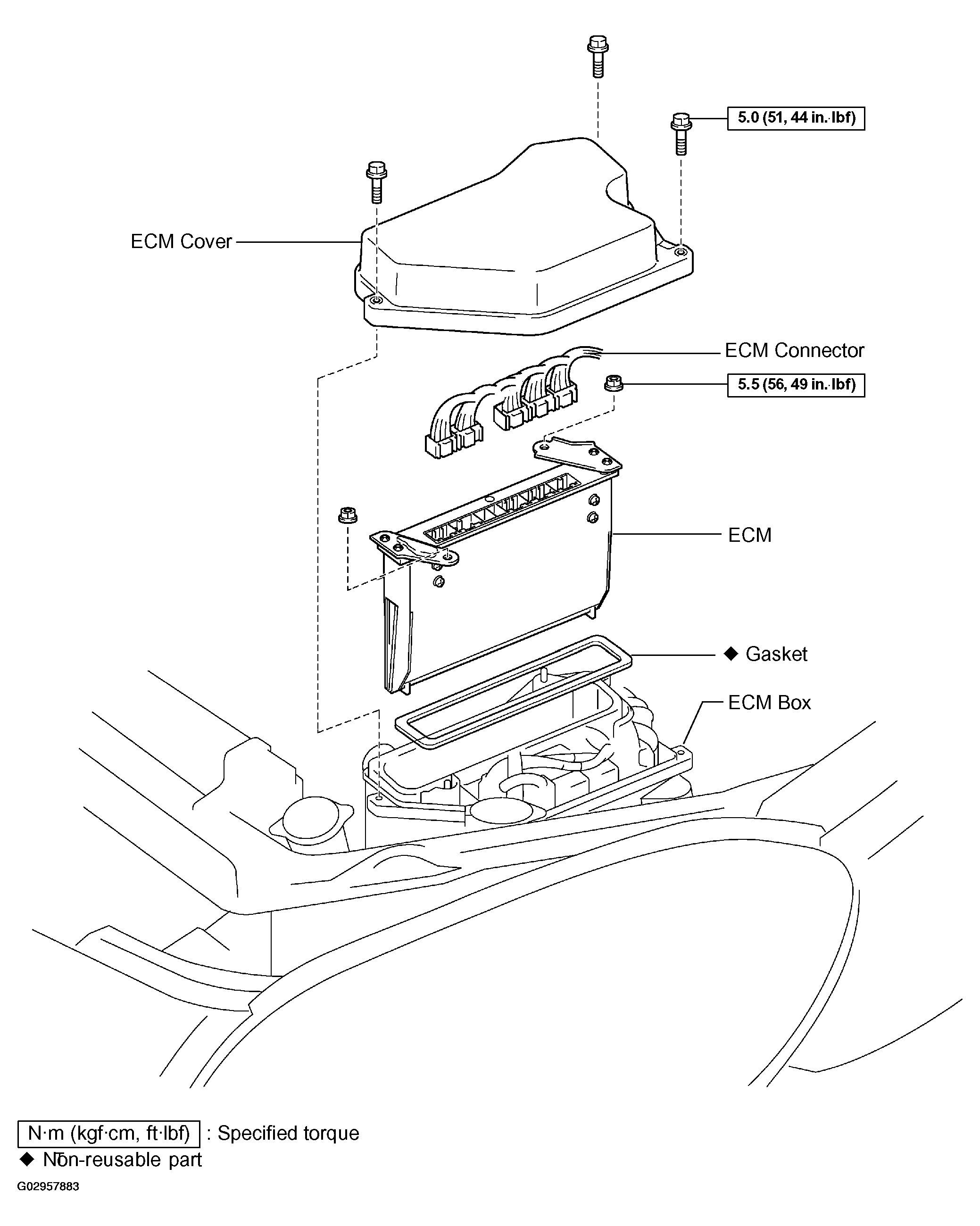

Fig 1: Identifying ECM Components & Replacements
G02957883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
