Knock Sensor: Components

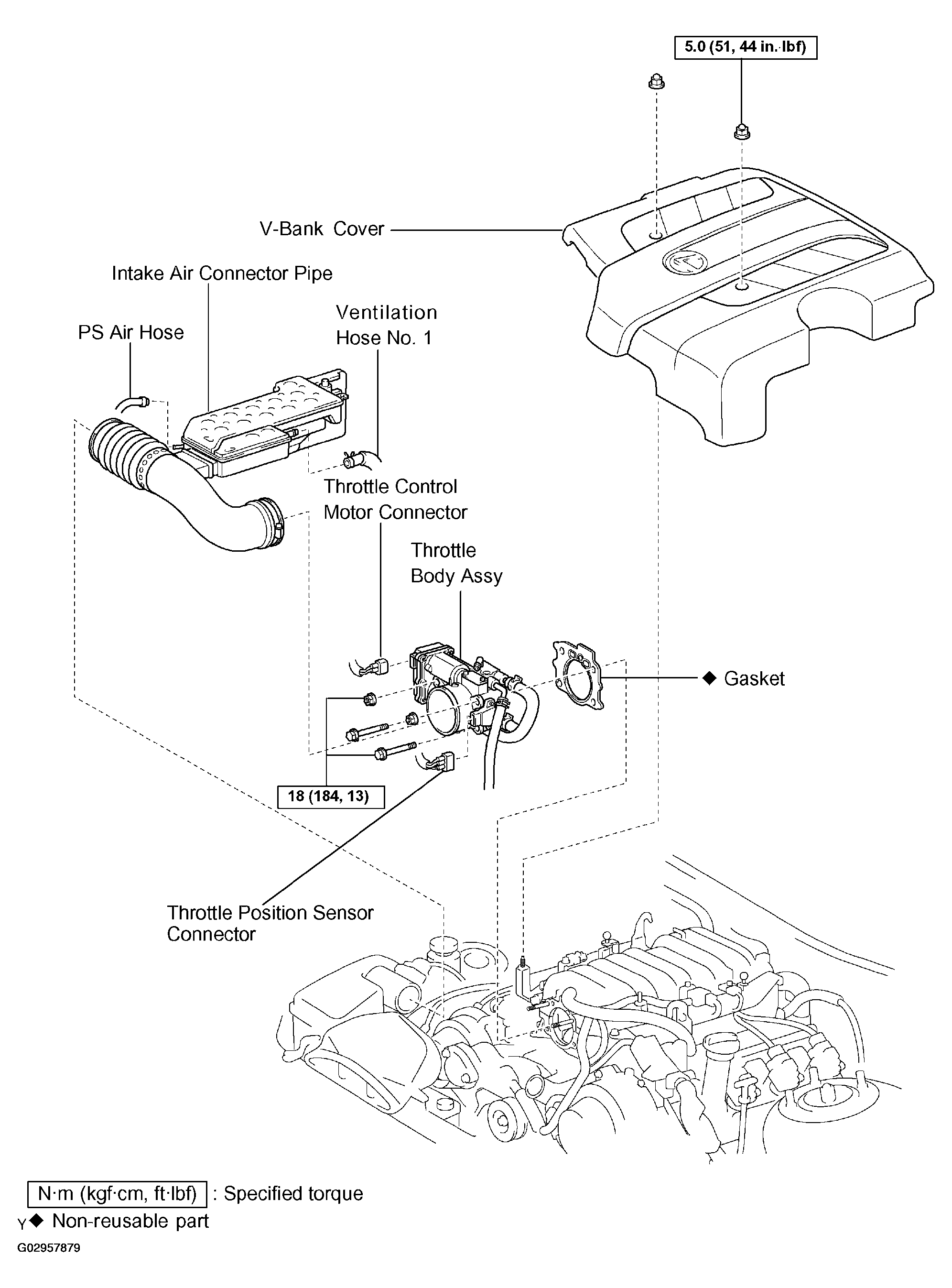

Fig 1: Identifying Knock Sensor Components & Replacements (1 Of 2)
G02957879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

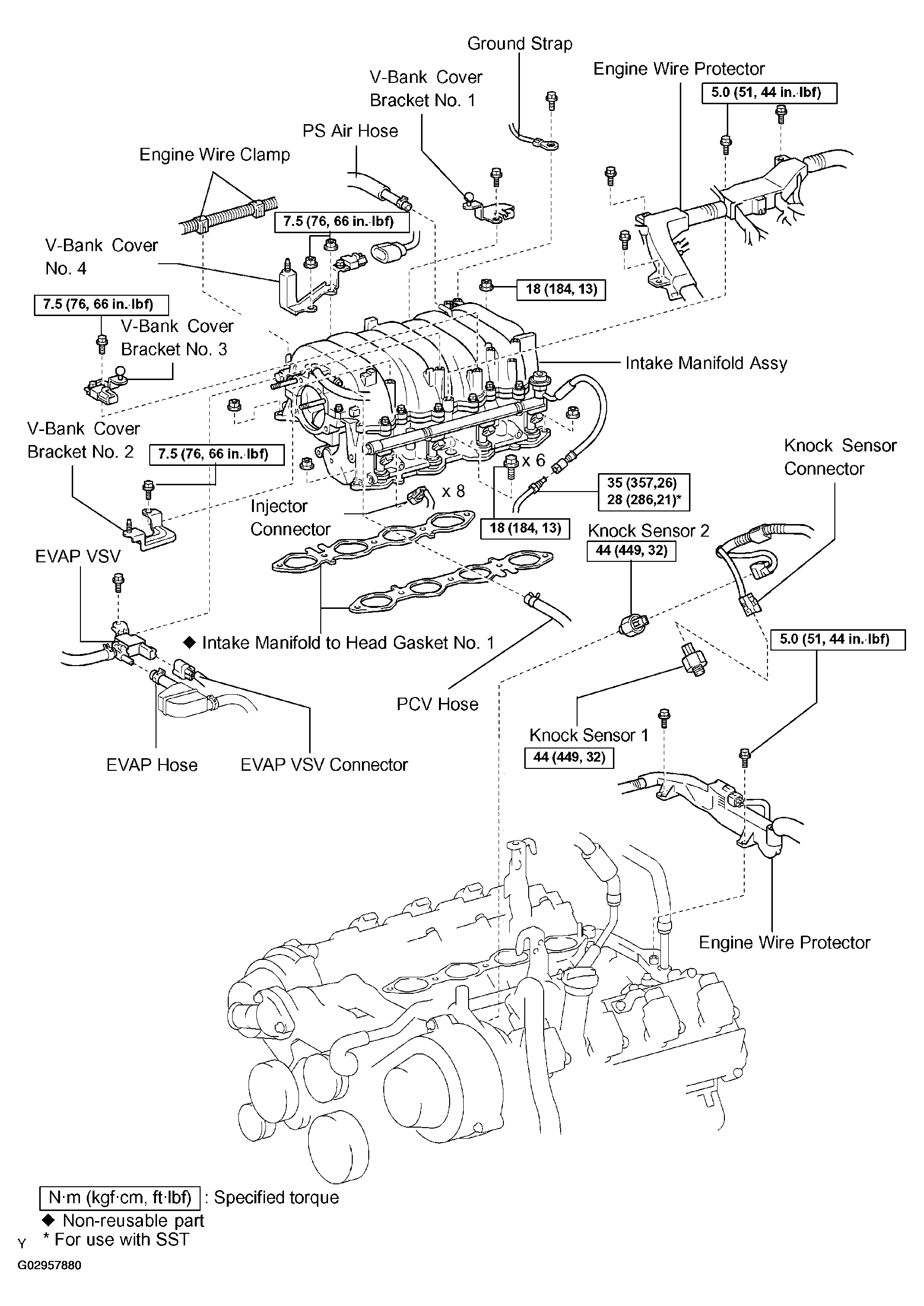

Fig 2: Identifying Knock Sensor Components (2 Of 2)
G02957880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
