Parts Location

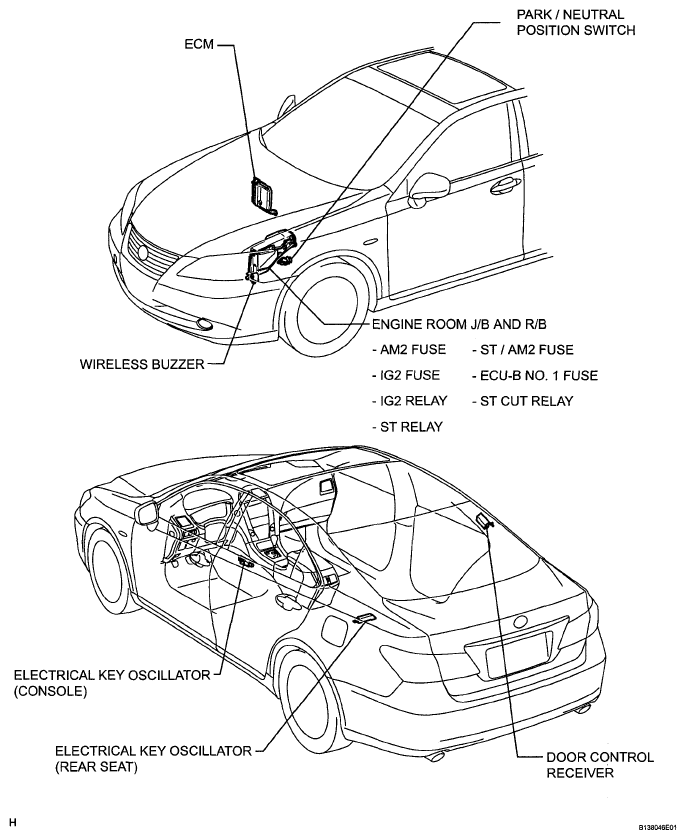

Fig 1: Identifying Smart Access System Components Location (1 Of 2)
G05248799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

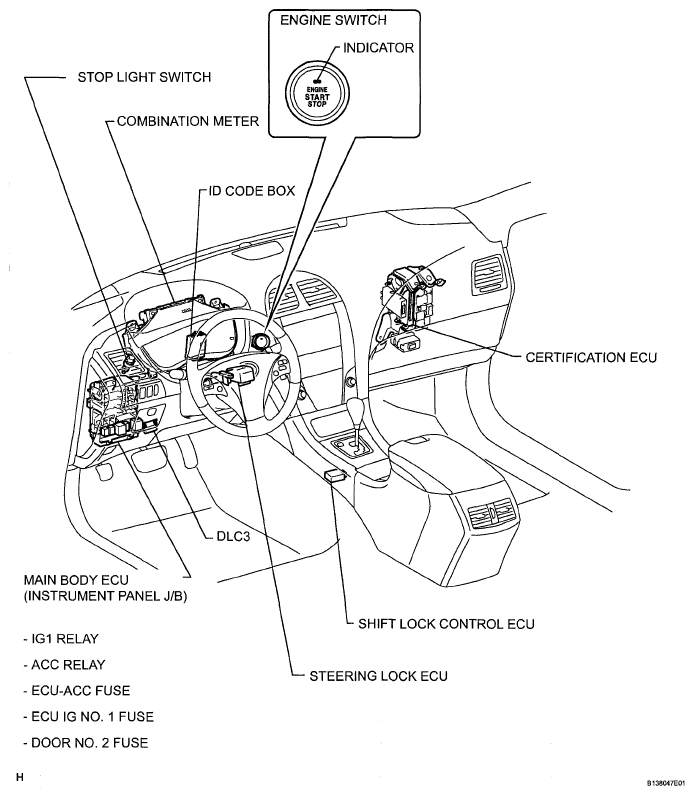

Fig 2: Identifying Smart Access System Components Location (2 Of 2)
G05248800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
