Fuel Pressure Pulsation Damper: Components

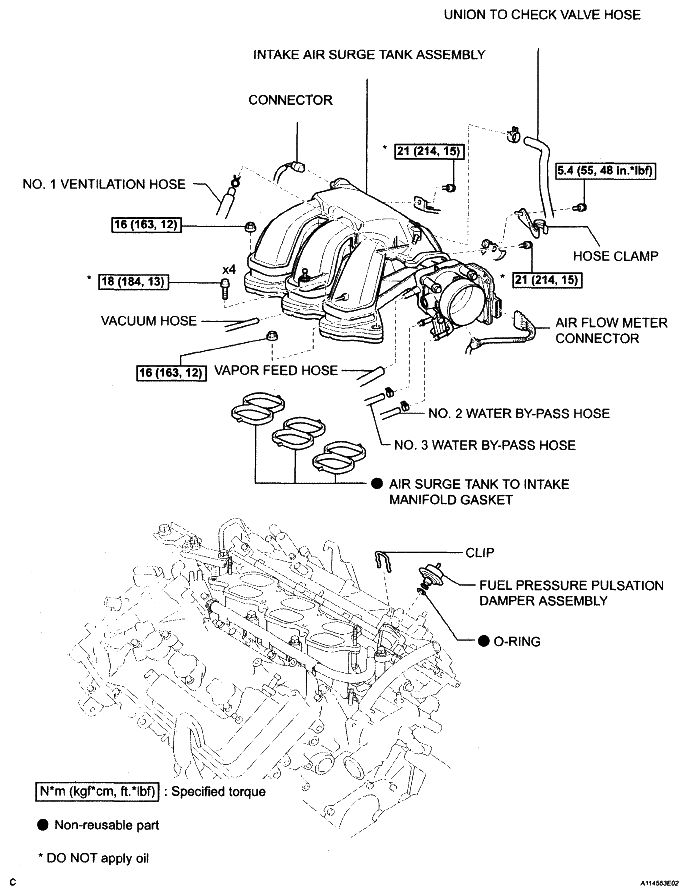

Fig 1: Fuel Injector Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Fuel Pressure Pulsation Damper Replacement Components With Torque Specifications (2 Of 2)
